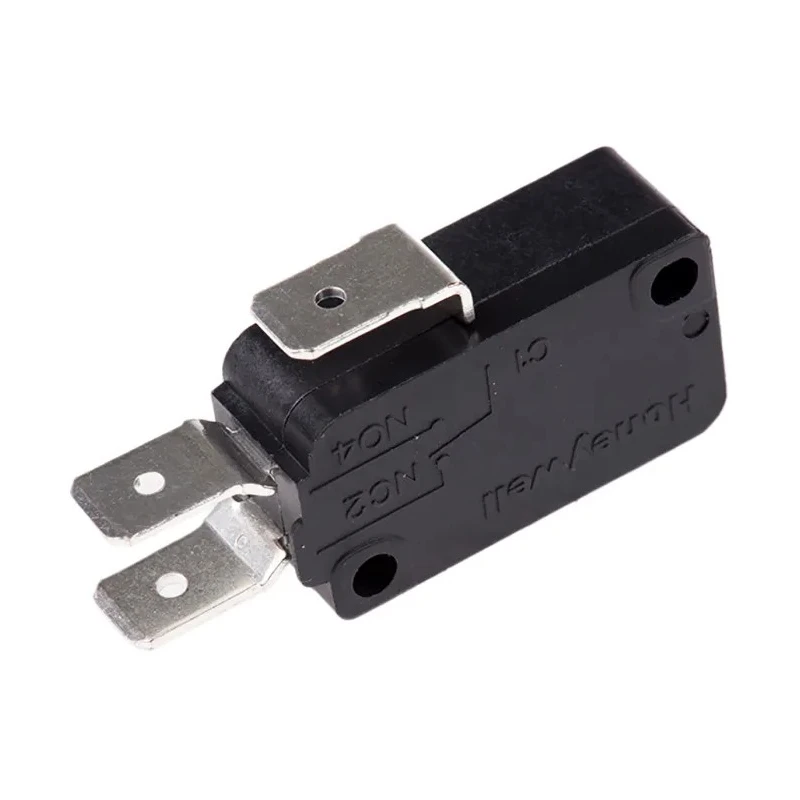

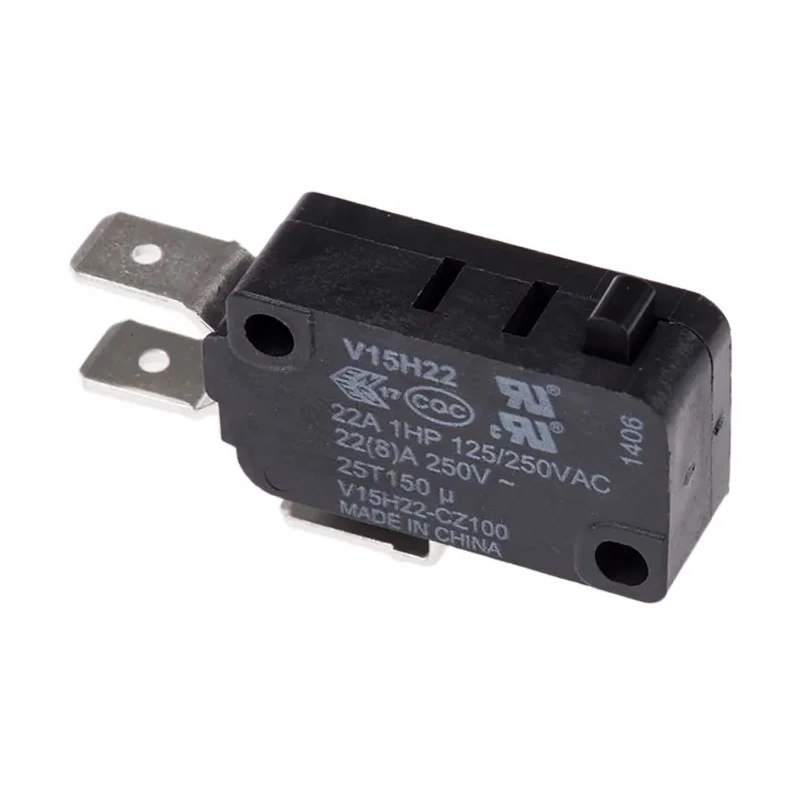

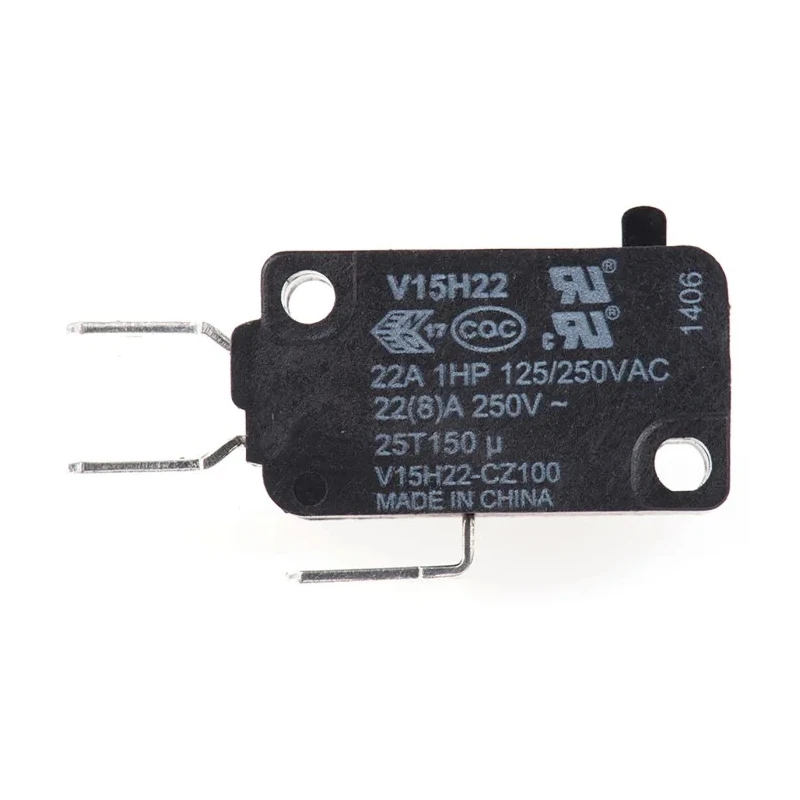

Honeywell Technologies Plunger Micro Switch, Quick Connect Terminal, 22A, 250V AC, SPDT, IP67 V15H22-CZ100

Honeywell Technologies V15H22-CZ100 Plunger Micro Switch is a compact, electromechanical actuator designed for circuit detection and interruption in control and sensing systems. The device uses a pin-style plunger actuator to provide precise tactile position switching with a single-pole, double-throw (SPDT) contact arrangement suitable for changeover functions in industrial and electronic applications.

The quick connect terminals allow tool-free attachment of spade connectors, enabling streamlined wiring and easy maintenance. This micro switch is rated for a high contact current of 22A at 250V AC, supporting mains-level control circuits efficiently.

Constructed with a durable plastic housing made from PBT thermoplastic polyester, it offers excellent structural stability and resistance to common industrial fluids. Its ingress protection rating of IP67 ensures operation in wet or dusty conditions, making it suitable for harsh industrial environments.

The micro switch performs reliably across a broad temperature range from -25°C to 150°C, making it ideal for elevated temperature applications. It delivers a long service life with mechanical endurance rated at 1,000,000 cycles.

Applications include limit detection on automated assembly equipment, safety interlocks in electrical enclosures, position sensing in mechanical actuators and valves, and load switching in control panels and relays. This product is certified to key standards such as cUL, CQC, ENEC, and UL, ensuring safety and reliability.

Equipped with a plunger actuator for precise tactile switching operation. Features a single-pole double-throw (SPDT) contact configuration for versatile changeover switching. Supports high current switching up to 22A at 250V AC.

Quick connect terminals enable fast, tool-free wiring for easy maintenance. Durable plastic housing offers structural and chemical resistance. Rated IP67 for dust-tight and waterproof protection against temporary immersion.

Operates reliably within -25°C to 150°C temperature range for harsh environments. High mechanical endurance with a life expectancy of 1,000,000 cycles. Certified to cUL, CQC, ENEC, and UL standards. Explore the Honeywell Technologies product range for industrial Micro Switches with secure and durable solutions designed for demanding applications.
