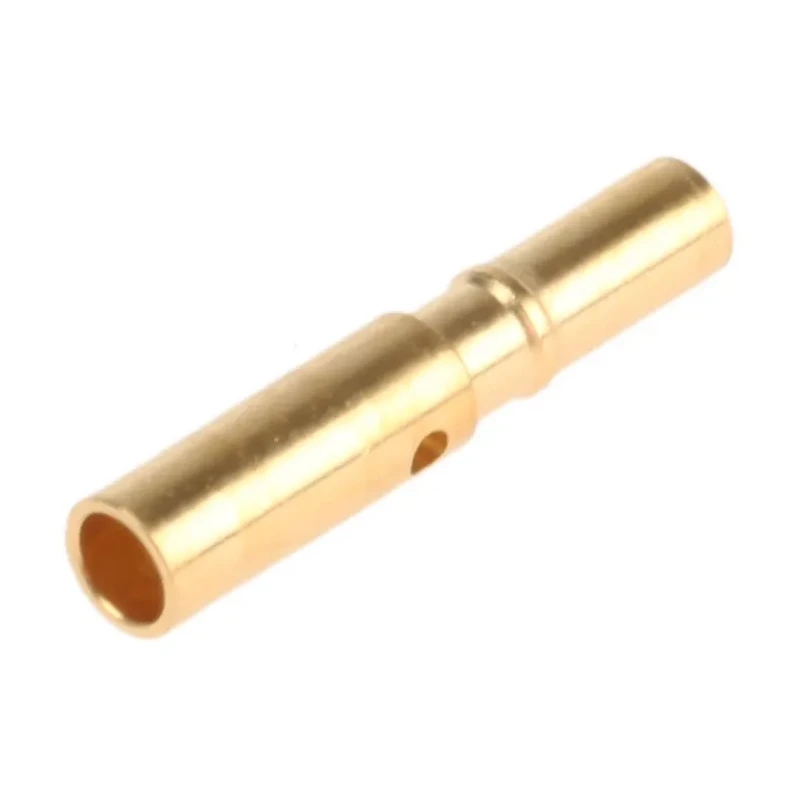

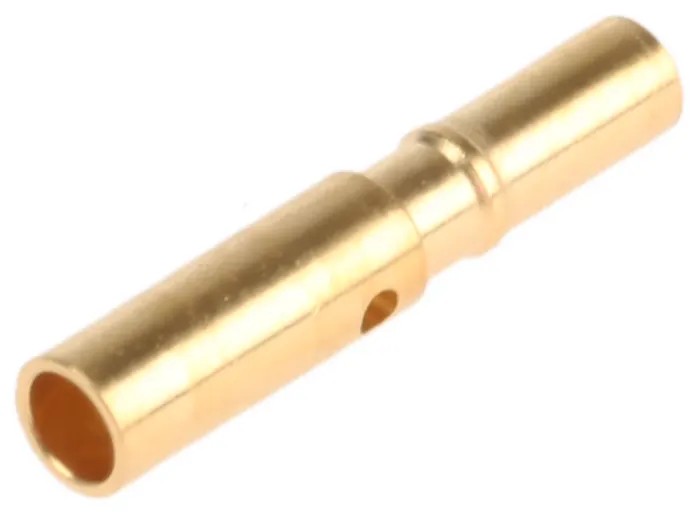

HARWIN Datamate Series Female Crimp Terminal, 3A Current, 22 AWG Wire Size, Gold Plated, Beryllium Copper Alloy M80-0110005
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | HARWIN |
| Current | 3A |
| Model | M80-0110005 |
| Gender | Female |
| Contact Material | Beryllium Copper Alloy |
| Series | Datamate |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| For Use With | J-Tek and Mix-Tek Connector Housings, Datamate L-Tek |
| Contact Plating | Gold |
| Maximum Wire Size mm² | 0.3mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 25mΩ |
Key Features
- Designed for use with J-Tek and Mix-Tek Connector Housings and Datamate L-Tek series.
- Gold plated beryllium copper alloy contacts ensure reliable electrical performance and durability.
- Supports a maximum operating temperature of 125°C and minimum of -55°C.
- Maximum contact resistance of 25 milliohms for low electrical loss.
- Rear insertable termination type with crimp termination for secure connection.
- Complies with safety standards suitable for harsh environments and high vibration applications.
- Manufactured in the United Kingdom ensuring quality and reliability.
- Polarised mouldings and high reliability female contacts with four finger clip design.
Product Description
HARWIN M80-0110005 Datamate Series Female Crimp Terminal is engineered for electrical and electronic applications requiring robust and reliable connections. Rated for a current of 3 amperes, this terminal supports a wire size of 22 AWG, suitable for precise and small-scale wiring needs.
This crimp terminal features gold plated contacts made from beryllium copper alloy, providing excellent conductivity and resistance to corrosion. It is designed for rear insertion into J-Tek and Mix-Tek Connector Housings found in the Datamate L-Tek series connectors.
Suitable for industrial, electronics manufacturing, and assembly applications, this terminal can operate in temperatures from -55°C up to 125°C. Its maximum contact resistance is specified at 25 milliohms ensuring minimal energy loss and stable signal transmission.
The Datamate range is known for high reliability due to its four finger clip contact design that maintains connection integrity under high vibration, shock, and acceleration conditions. The connector housings are polarized to prevent incorrect mating, and there are options with or without latches to suit different installation requirements.
This product is manufactured in the United Kingdom, reflecting stringent quality control and compliance with industry standards. It is ideal for critical electronic assemblies, harsh environmental applications, and high reliability requirements.
Gold plated beryllium copper alloy contacts for enhanced durability. Compatible with J-Tek and Mix-Tek Connector Housings, Datamate L-Tek series. Supports a current rating of 3A with a contact resistance of 25mΩ. Operates reliably between -55°C and 125°C temperature range.
Rear insertable crimp termination for secure connectivity. Polarised mouldings with four finger clip contacts for connection integrity. Perfect for industrial, commercial, and electronics manufacturing environments. Explore the extensive range of HARWIN Crimp Contacts and connectors for your high-performance electronic component needs with EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 3 amperes, making it suitable for various electrical applications.
It supports a minimum wire size of 22 AWG, which is suitable for precise wiring needs.
The contacts are made from beryllium copper alloy and are gold plated, providing excellent conductivity and corrosion resistance.
The maximum operating temperature is 125°C, allowing it to function in a wide range of environments.
It can operate reliably at a minimum temperature of -55°C, making it suitable for harsh conditions.
The maximum contact resistance is specified at 25 milliohms, ensuring minimal energy loss during operation.
It is designed for use with J-Tek and Mix-Tek Connector Housings as well as the Datamate L-Tek series connectors.
This model features a rear insertable crimp termination type for secure connectivity.
It includes polarized mouldings and a four finger clip design that enhances connection integrity under high vibration and shock conditions.
This product is manufactured in the United Kingdom, reflecting stringent quality control standards.
It is suitable for industrial, commercial, and electronics manufacturing environments, particularly where high reliability is required.
Yes, there are options available with or without latches to suit different installation requirements.
