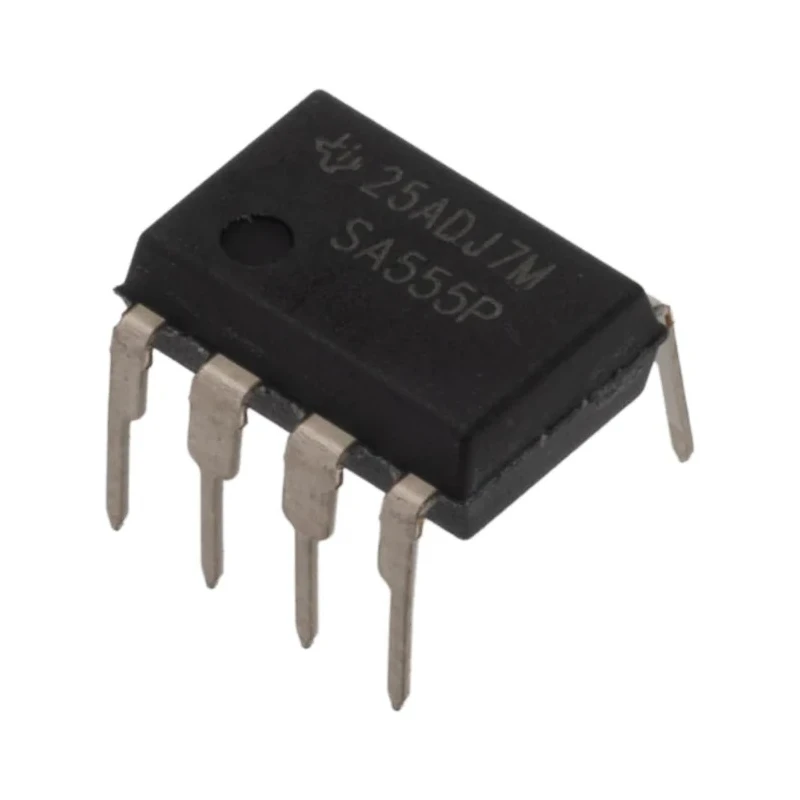

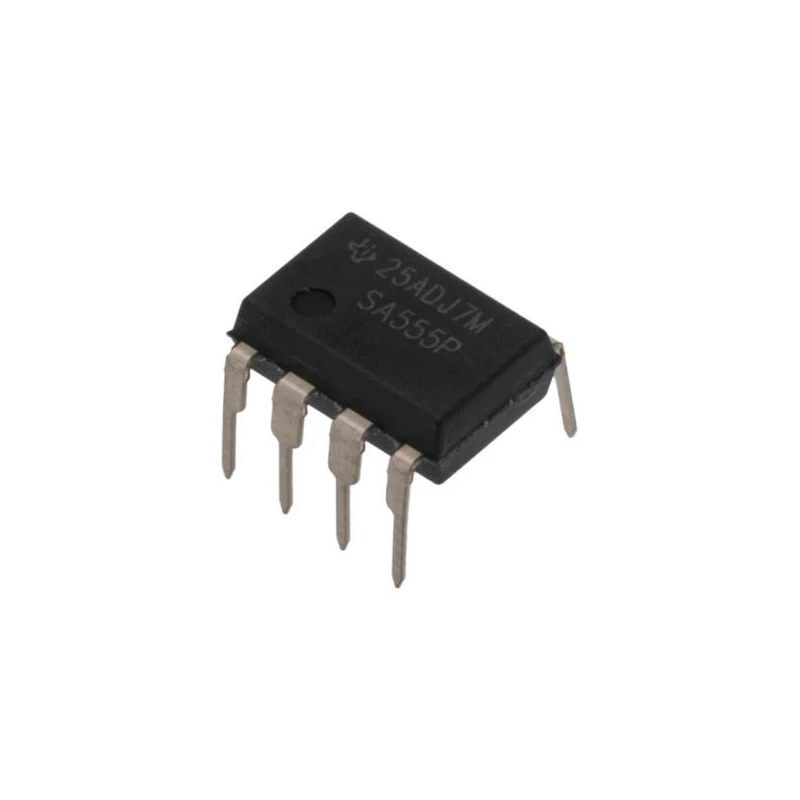

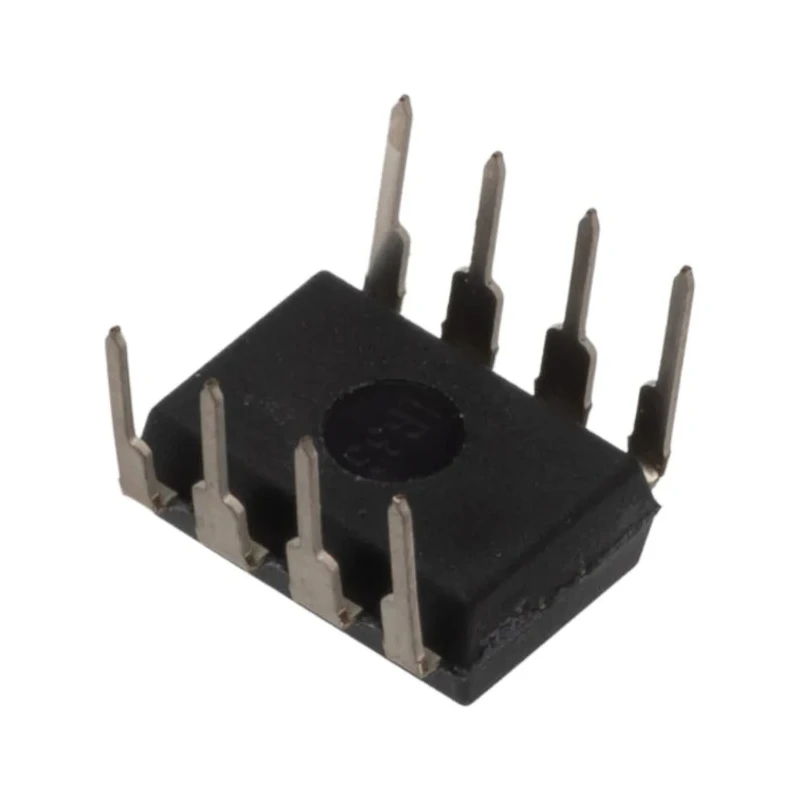

Texas Instruments Timer Circuit 1 Internal Timer 8-Pin PDIP SA555P

Texas Instruments SA555P Timer Circuit is a highly stable precision timing integrated circuit designed for generating accurate time delays or timing pulses. This 1 internal timer device is housed in a standard 8-pin PDIP package and supports through-hole mounting, making it compatible for diverse PCB designs.

The unit operates reliably over a voltage range of 4.5V to 16V and functions efficiently at temperatures from -40°C up to 85°C. It features a maximum propagation delay time of 15 nanoseconds under a 15pF test condition, ensuring precise timing performance for electronic and industrial applications.

This timer circuit is versatile for use in monostable or astable modes, providing timing periods from microseconds to several minutes, suitable for oscillator or one-shot pulse generation needs.

Its compact dimensions of 9.81mm in length and 4.57mm in height facilitate integration into electronics components assemblies and semiconductor circuits.

The SA555P does not include automotive standards certification or special approvals, ensuring straightforward use in standard electronic instrumentation, laboratory equipment, industrial automation, control systems, and other related applications.

Operates over a broad supply voltage range ensuring flexibility across circuits. High stability and accuracy for timing pulse generation. Robust performance in extreme temperature environments. Compact PDIP package suitable for through-hole mounting.

Part of the well-known SA series from Texas Instruments. Ideal for industrial, laboratory, and electronics manufacturing uses requiring timing ICs.

This timer circuit is classified under Timer Circuits in semiconductor electronic components. Explore other advanced semiconductor products and timer ICs at EnvMart for industrial, laboratory, and manufacturing applications.
