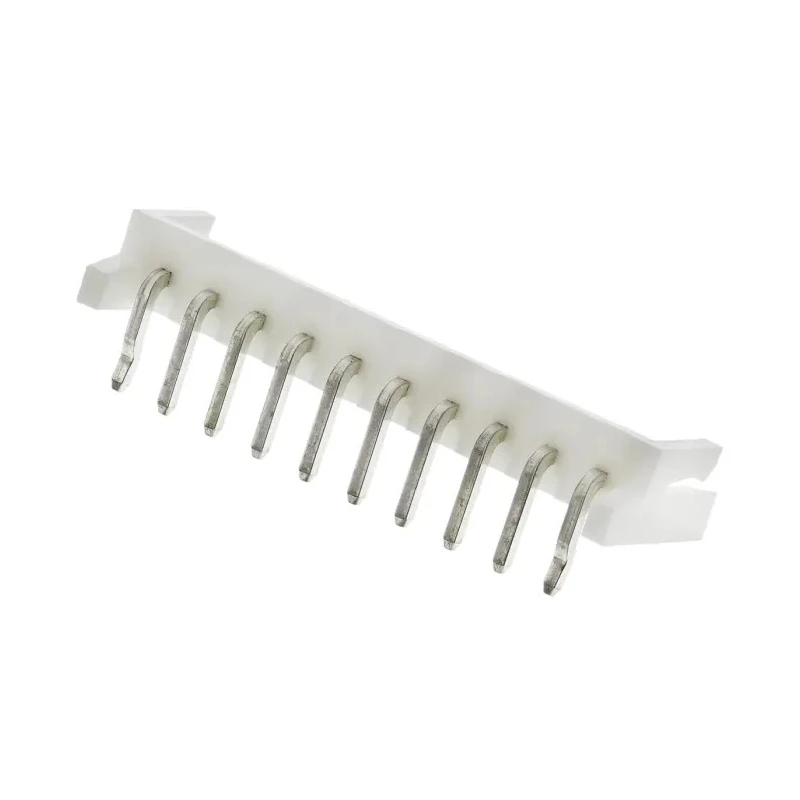

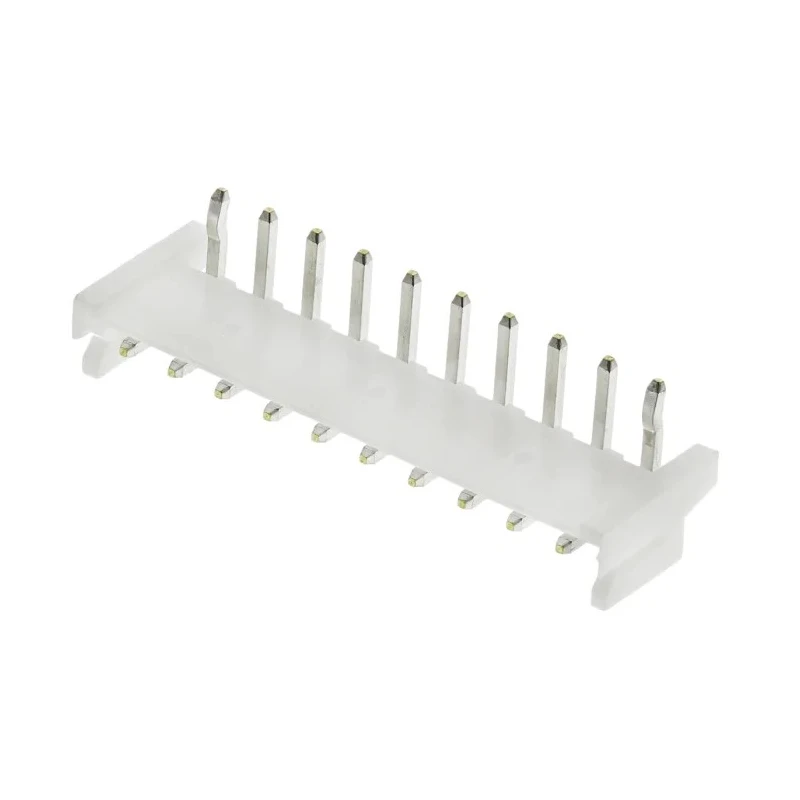

JST EH Series Right Angle Through Hole PCB Header, 10 Contacts, 2.5 mm Pitch, 1 Row, Shrouded S10B-EH (LF) (SN)

JST S10B-EH (LF) (SN) PCB Header is a 2.5 mm pitch, single-row, right angle through-hole shrouded connector designed for high integrity wire-to-board connections. This PCB header features a durable polyamide housing and male brass contacts plated with tin to ensure excellent conductivity and corrosion resistance.

With a current rating of 3 A and voltage rating of 250 V, it is suited for diverse electronic applications requiring secure and robust signal or power connections. The connector operates within a temperature range of -25°C to 85°C, supporting reliable performance in industrial, commercial, and laboratory environments.

The 10-contact configuration allows for moderate pin count connectivity while the integral keying system guarantees correct polarization during mating, preventing connection errors in assembly. The 3.2 mm mating pin length aids in firm and reliable terminal engagement. Its shrouded design reduces risk of accidental shorts and damage to pins, enhancing long-term durability and safety.

This JST EH series right angle PCB header is commonly used in electronic instrumentation, industrial control systems, communication devices, and embedded system boards. The through-hole mounting ensures excellent mechanical stability, making it suitable for environments with vibration or mechanical stress. The solder termination type allows for efficient PCB assembly processes.

Durable polyamide housing ensures electrical insulation and mechanical stability. 3 A current and 250 V voltage ratings support a broad range of electronic applications. Male brass contacts with tin plating provide reliable conductivity and corrosion resistance.

Right angle orientation facilitates compact PCB design and efficient space usage. Integral keying ensures correct mating and reduces assembly errors. Operating temperature range of -25°C to 85°C suits diverse environmental conditions.

Shrouded design enhances safety by preventing accidental shorts. Through-hole mount type ensures mechanical robustness for demanding applications. 10 contact pins enable flexible wire-to-board connections. 3.2 mm mating pin length provides secure contact engagement.

This product is categorized under PCB Headers within Electronics Components, ideal for industrial, manufacturing, and laboratory PCB assembly projects. It provides a high-quality, reliable connector solution designed to improve production efficiency and ensure long-lasting electrical performance. Explore more in the PCB Headers range for complementary connectors and accessories available on EnvMart.
