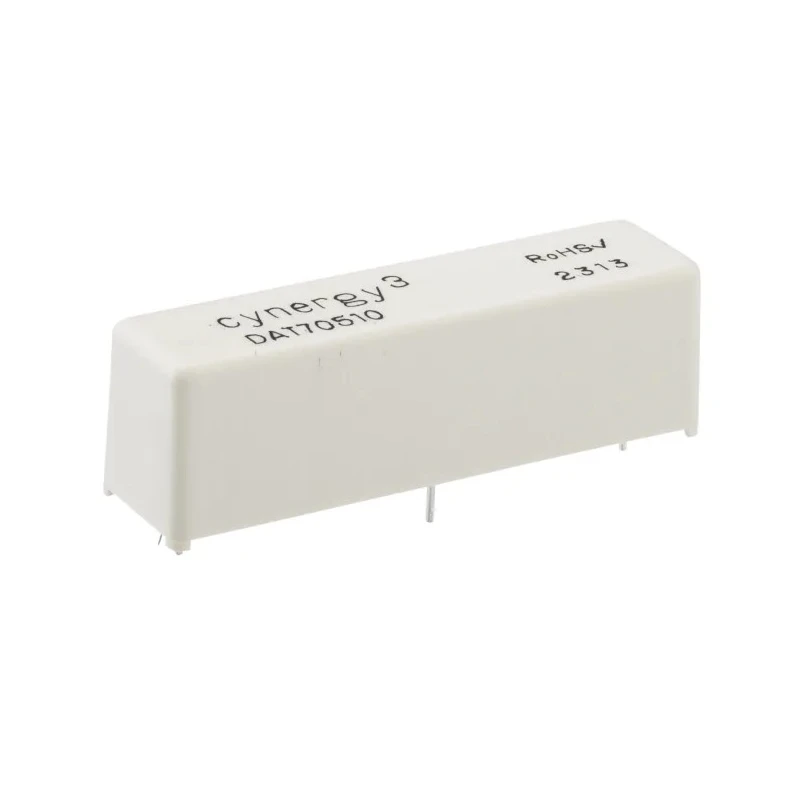

Cynergy3 PCB Reed Relay SPST 12V DC Coil 50W Power 150Ω Resistance 7000V DC Max
Specifications
| Country of Origin | China |
|---|---|
| Brand | Cynergy3 |
| Height | 18.5mm |
| Length | 60mm |
| Model | Cynergy3 |
| Operating Time | 3ms |
| Mount Type | PCB |
| Series | DAT |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -20°C |
| Terminal type | Through Hole |
| Contact Resistance | 250mΩ |
| Standards/Approvals | UL |
| Coil Resistance | 150Ω |
| Coil Power | 50W |
| Switching Power | 50W |
| Isolation Coil To Contact | 17kV ac/dc |
| Cynergy3 PCB Reed Relay, 5V dc Coil, SPST, 7000V dc Max, 2A Max, 28 ΩBrand | Cynergy3 |
Key Features
- The relay has a maximum switching voltage of 7000V DC, suitable for high-voltage power supplies.
- It offers a fast operating time of 3 milliseconds including bounce for efficient switching.
- Fixed with through-hole terminals on PCB for secure mounting in electronic assemblies.
- Operates reliably over a wide temperature range from -20°C to 70°C, enhancing performance in harsh environments.
- Contact resistance is rated at a maximum of 250mΩ ensuring low signal loss during operation.
- Designed for non-latching operation, suitable for various industrial and laboratory applications.
- Compliance with UL standards assures quality and safety.
Product Description
Cynergy3 DAT71210 is a high voltage PCB Reed Relay designed for reliable electric switching with an SPST (Single Pole Single Throw) contact configuration and a 12V DC coil. It features a coil power of 50W and coil resistance of 150Ω, enabling efficient electromagnetic operation.
This relay is constructed with tungsten contacts, which provide exceptional durability and enable switching voltages up to 7000V DC, making it ideal for critical applications that demand high isolation and robustness. It is suitable for use in fields such as industrial control systems, automatic test equipment, cardiac defibrillators, and high voltage power supplies.
The relay is mounted on printed circuit boards using through-hole terminals for a secure and stable connection. It operates reliably over a broad temperature range from -20°C to +70°C, making it suitable for harsh environmental conditions.
Featuring a compact form factor of 60mm length and 18.5mm height, the relay offers a fast operating time of 3 milliseconds including bounce, ensuring swift switching response. The contact resistance is low at 250mΩ, ensuring minimal signal degradation during operation.
This non-latching relay delivers stable performance, meeting UL safety standards for quality assurance. The product originates from China, offering a blend of reliability and durability necessary for critical electrical and electronic applications.
The relay supports up to 50W coil power and 50W switching power for varied load requirements. Isolation voltage between coil and contact reaches 17kV AC/DC for high-safety applications. Tungsten contacts enable a long service life, rated at up to one million cycles.
Applications include industrial, laboratory, manufacturing, and medical equipment where high voltage switch reliability is essential.
This Cynergy3 relay DAT71210 is a dependable choice within the Reed Relay category for high-performance PCB mounting solutions. Discover the full range of Cynergy3 relays and other related components on EnvMart for your industrial and technical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching voltage of this relay is 7000V DC, making it suitable for high-voltage power supplies.
The coil resistance of this model is 150Ω, which enables efficient electromagnetic operation.
This relay has an operating time of 3 milliseconds, including bounce, allowing for efficient switching response.
The relay measures 60mm in length and 18.5mm in height, making it compact for PCB mounting.
It features an SPST (Single Pole Single Throw) contact configuration, suitable for various applications.
The maximum operating temperature for this relay is +70°C, which allows reliable performance in harsh environments.
The contact resistance is rated at a maximum of 250mΩ, ensuring low signal loss during operation.
The isolation voltage between the coil and contact reaches 17kV AC/DC, providing high safety for applications.
This relay complies with UL standards, assuring quality and safety in its operation.
The coil power rating for this relay is 50W, which supports varied load requirements.
It is mounted using through-hole terminals, providing a secure and stable connection in electronic assemblies.
This relay is suitable for applications in industrial control systems, automatic test equipment, and medical equipment, among others.
