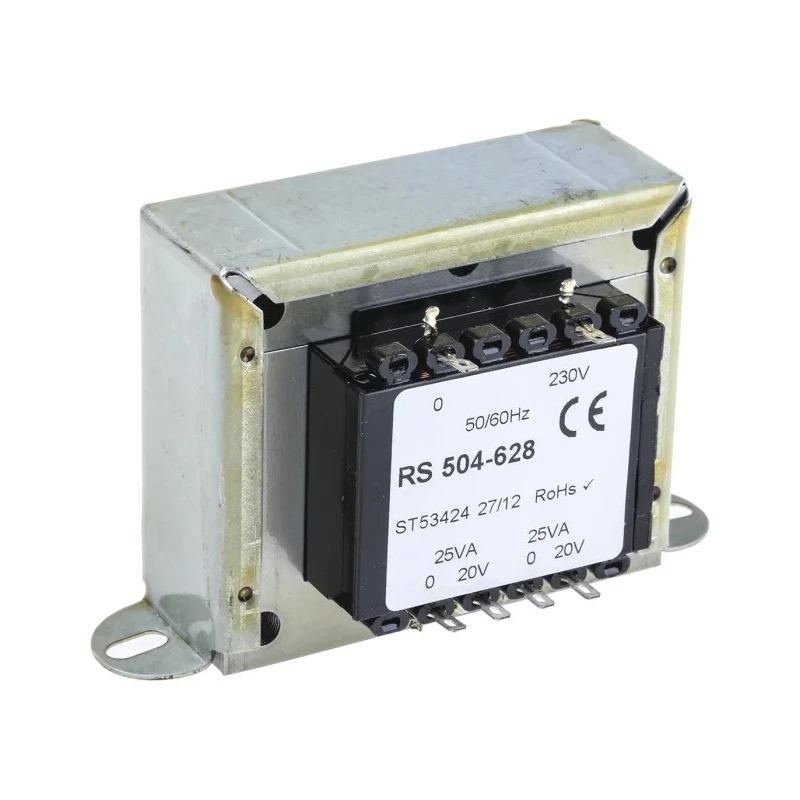

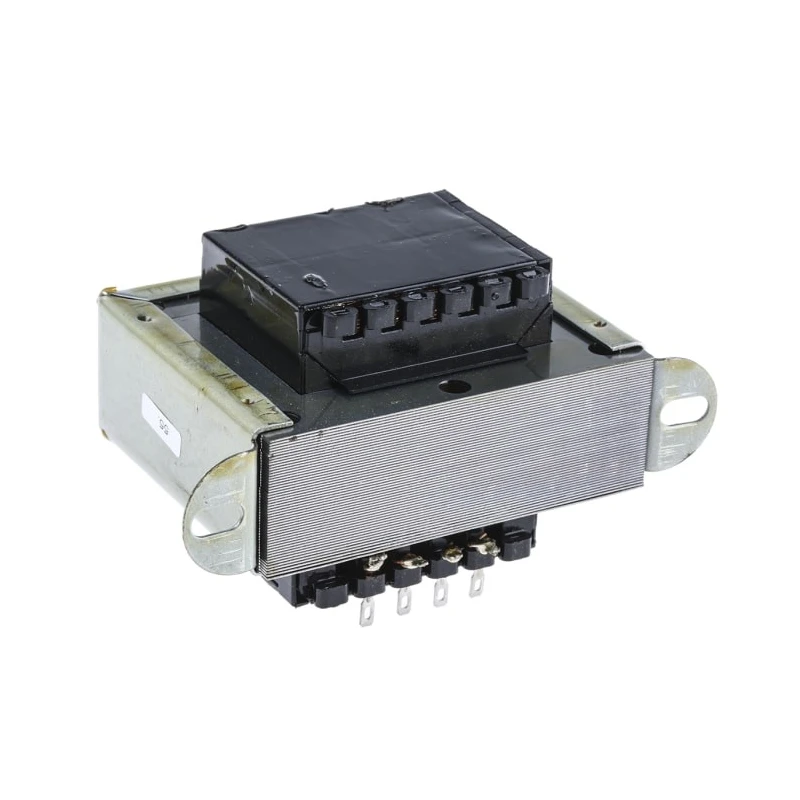

RS PRO 2 Output 50 VA Chassis Mount Transformer 230 V ac Primary, 20 V ac Secondary, CE Certified 504-628

RS PRO 504-628 is a high-quality Chassis Mount Transformer designed for industrial and electronic equipment requiring low voltage isolation or conversion. Featuring a robust double section bobbin construction and full varnish impregnation, this transformer ensures reliable operation under varying temperatures and electrical loads.

This model features a 230 V ac primary winding, compatible with standard mains power, and two independent secondary windings each rated at 20 V ac. These outputs can be connected in series or parallel, allowing for flexible output voltage and current configurations to suit diverse application requirements.

Compact and lightweight, it measures 79mm in length, 62mm in width, and 37.65mm in depth, with a weight of 210 grams. The transformer mounts securely via wrap-over clamps using 4.7mm diameter fixing holes. The construction fully meets international safety and performance standards including CE marking, IECBSEN 61558, ASNZS 61558, and RoHS compliance.

Its operational temperature range extends from -30°C to 130°C, making it suitable for a wide array of environmental conditions in industrial settings. Safety and quality are assured through 100% electrical and flash testing as per BS3535 and EN 60742 standards.

This transformer is ideal for use in power supplies, machinery, control systems, and other industrial electronic equipment requiring stable and efficient low voltage AC power conversion.

Primary voltage rating of 230 V ac for standard mains supply. Two independent 20 V ac secondary windings configurable in series or parallel. Robust chassis mount design with high-quality bobbin construction and varnish impregnation.

Compact size and lightweight for easy installation. Complies with CE, IECBSEN, ASNZS, and RoHS standards. Operates over a wide temperature range (-30°C to 130°C). Tested to BS3535 and EN 60742 for electrical safety and performance.

Mounting via two-hole wrap-over clamp with 4.7mm fixing hole diameter. Application-ready for industrial, electronic, and control equipment. Explore comprehensive transformer options in the Electronics & Electricals category at EnvMart for your industrial and manufacturing needs.
