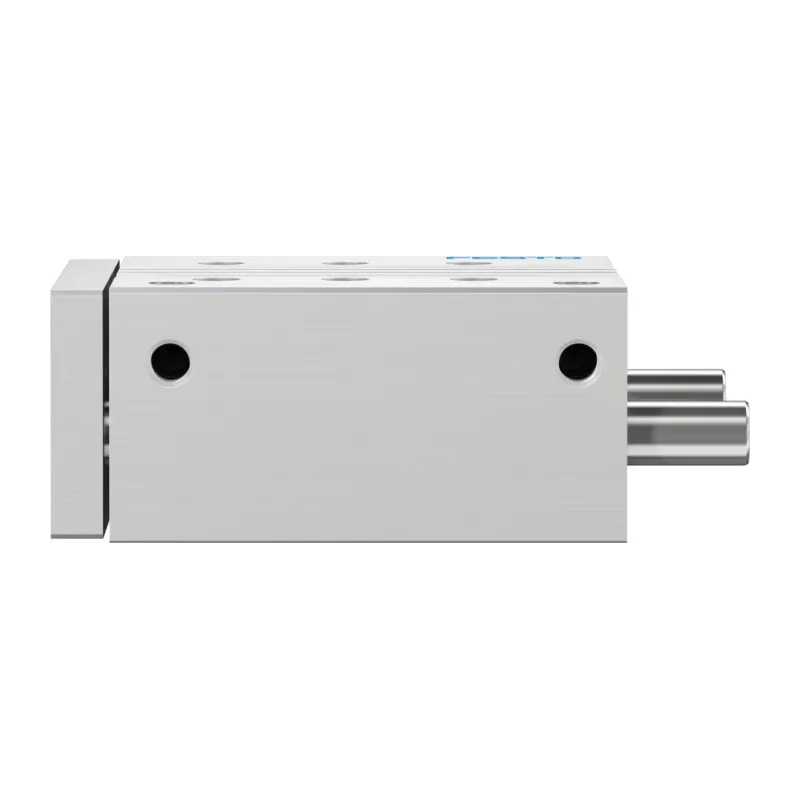

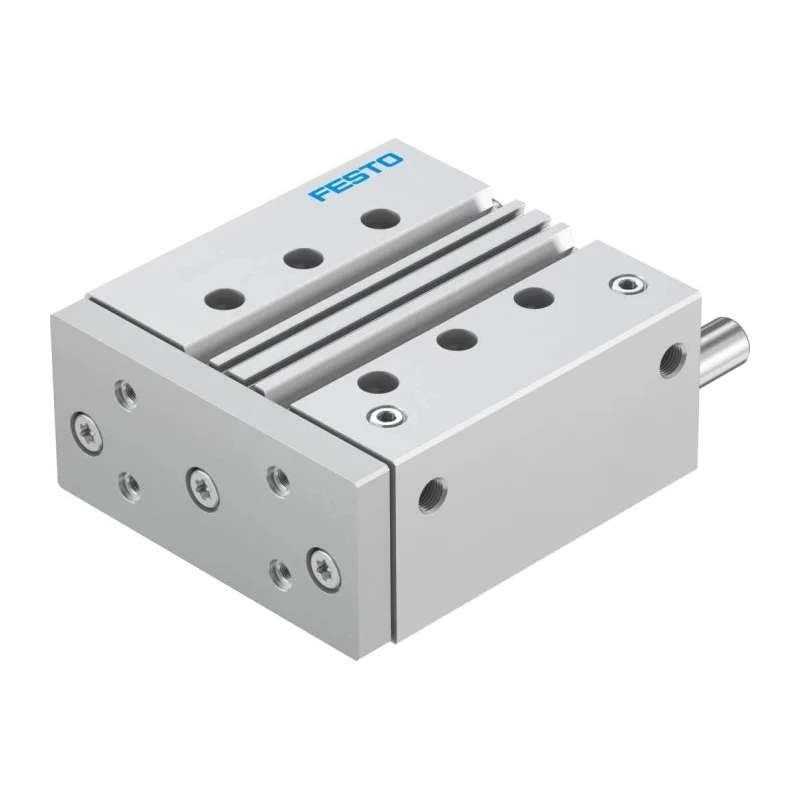

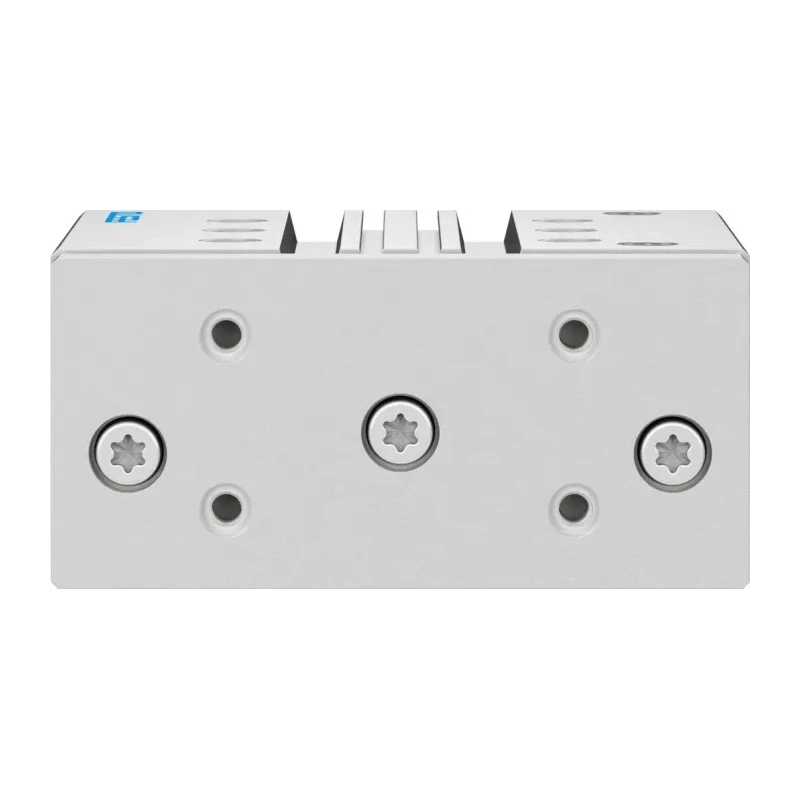

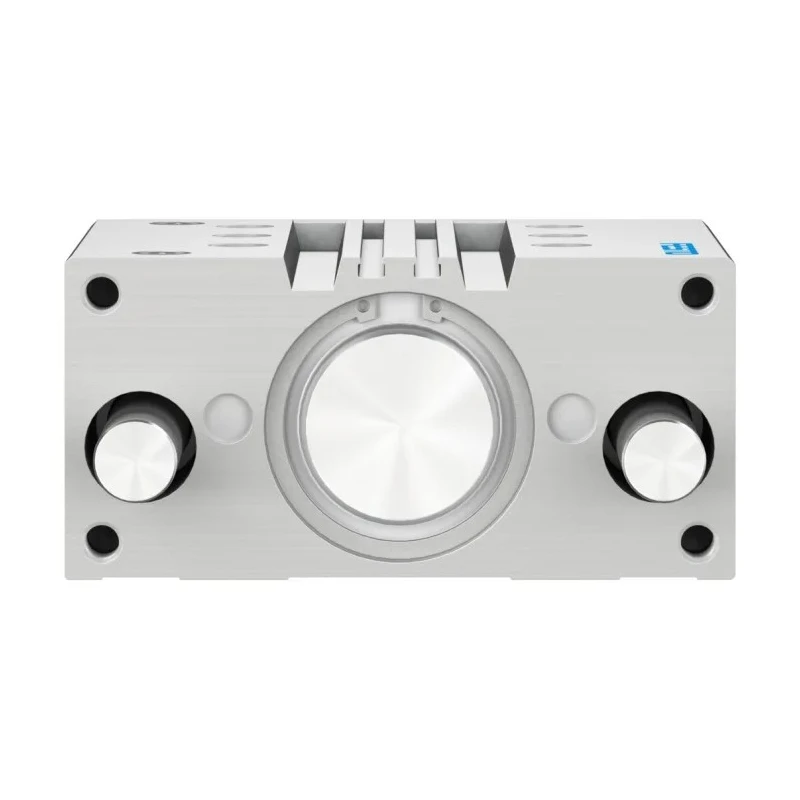

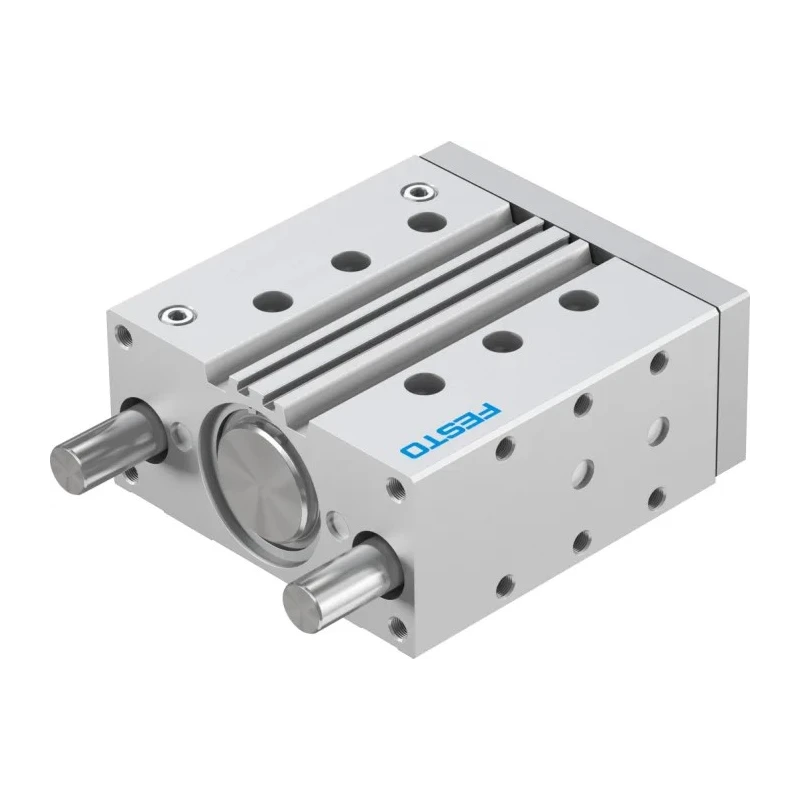

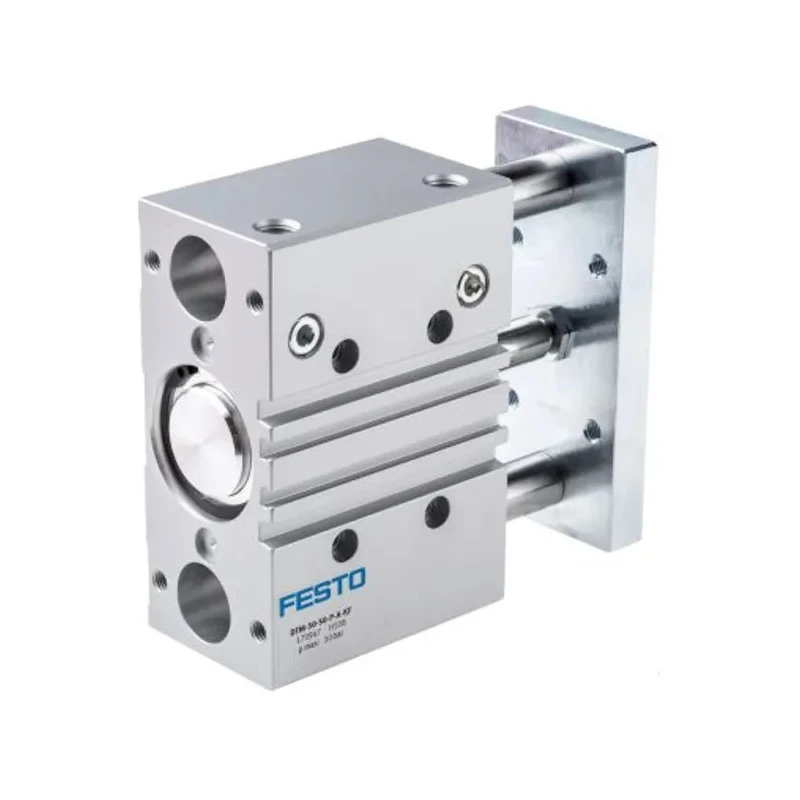

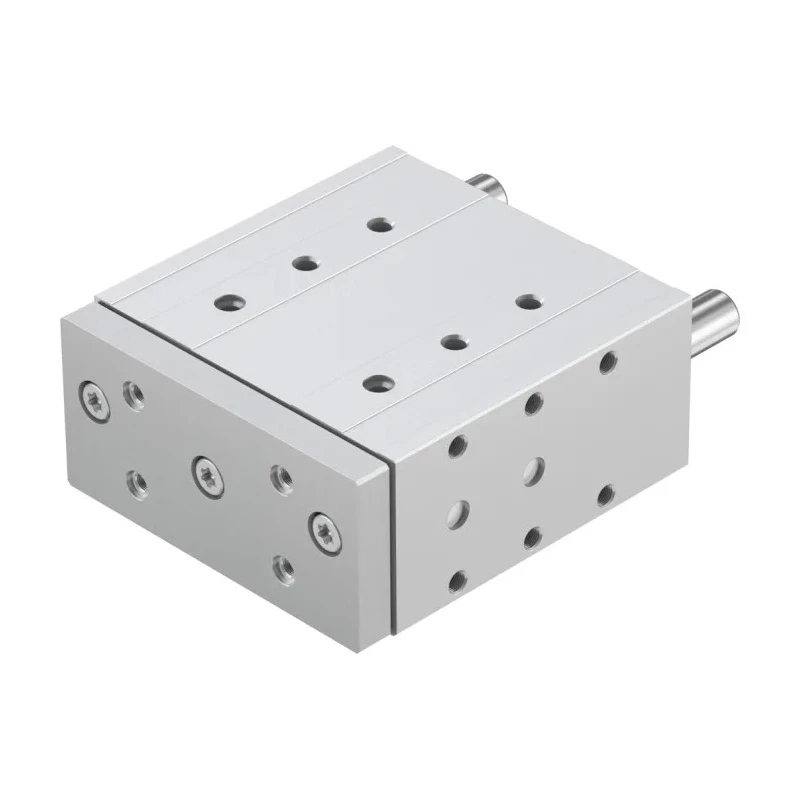

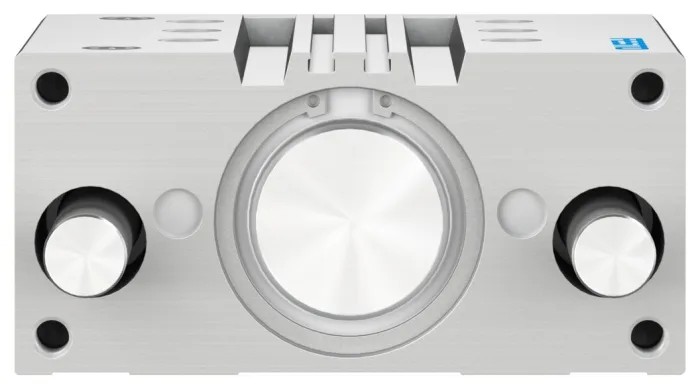

Festo Pneumatic Guided Cylinder 63mm Bore 100mm Stroke Double Acting Through Hole Mount DFM-63-100-P-A-KF

Festo DFM-63-100-P-A-KF pneumatic guided cylinder is a high-quality industrial actuator designed for precision-guided linear motion in automation systems. This double acting cylinder has a 63mm bore and 100mm stroke length, suitable for handling heavy tasks requiring guided low-speed movements. Its design integrates drive piston and guide rods within a single robust housing that delivers excellent resistance to torque and lateral forces.

The cylinder features ball-bearing guides that minimize torsional backlash and facilitate smooth motion when exposed to torque-loaded conditions. Elastomer cushioning at both ends ensures controlled shock absorption during operation, increasing component longevity. The guide rod with a yoke enhances lateral force resistance, guaranteeing stable and reliable performance in demanding industrial environments.

Manufactured from anodised aluminium alloy with a stainless steel piston rod, the body resists wear and corrosion, supporting operation temperatures from -5°C up to 60°C and a maximum operating pressure of 10 bar. The maximum piston speed of 0.8 mm/s allows for precise, low-speed actuation, ideal for conveyor indexing, lifting short-stroke carriers, pushing operations with high lateral load, and integration with proximity sensors for accurate position detection.

Mounting is facilitated via through holes as well as female threads, enabling flat, side, or endwise installation to suit a broad range of machine layouts. Compliance with ISO 1179-1, ISO 228-1 standards and RoHS ensures quality, safety, and environmental responsibility. This cylinder is a reliable choice for pneumatic applications in industrial automation, manufacturing, assembly, conveyor systems, and material handling.

Double acting pneumatic guided cylinder for guided linear motion in automation. 63mm bore and 100mm stroke rated for operation up to 10 bar. Ball-bearing guides to reduce torsion and improve motion precision. Elastomer cushioning absorbs impact for controlled operation.

Durable anodised aluminium alloy body with stainless steel piston rod. Operates from -5°C to 60°C with max piston speed of 0.8 mm/s. Mounting via through holes and female threaded fixes supports flexible integration. Ideal for conveyor indexing, lifting, pushing with high lateral forces.

Compatible with position sensors for accurate proximity detection. Conforms to ISO 1179-1, ISO 228-1 and RoHS standards. Explore more Pneumatic Guided Cylinders and automation solutions with EnvMart’s comprehensive catalog to enhance your industrial applications with quality and reliability.
