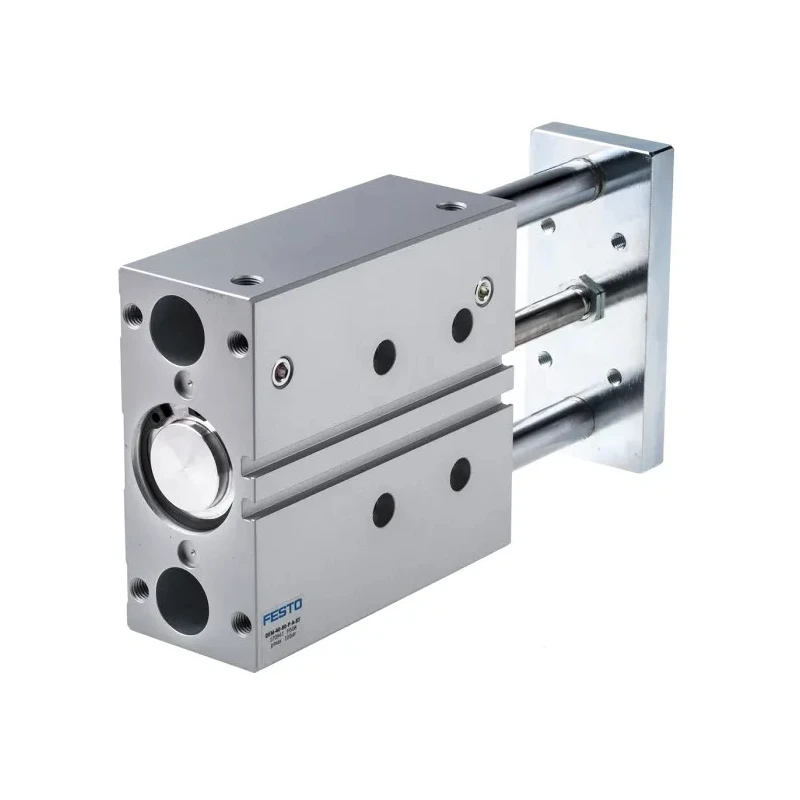

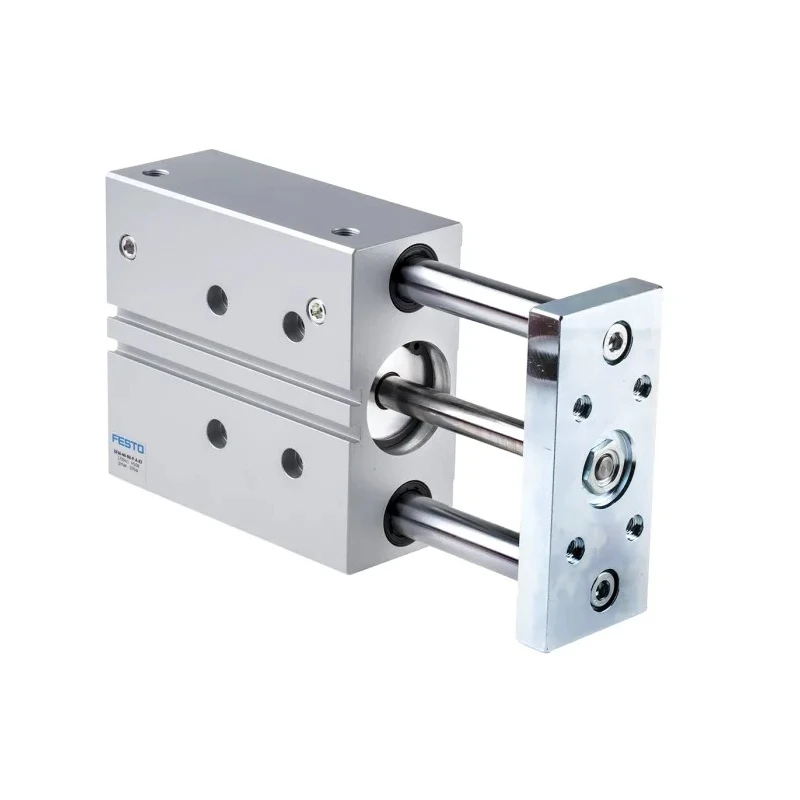

Festo Pneumatic Guided Cylinder 40mm Bore, Double Acting, Through Hole Mount, DFM Series DFM-40-80-P-A-KF
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Body Material | Wrought Aluminium Alloy, Tempered Steel (Yoke Plate), High Alloy Stainless Steel, Bearing and End Cap, Anodised (Housing) |
| Maximum Operating Pressure | 10 bar |
| Height | 54mm |
| Length | 179mm |
| Model | DFM-40-80-P-A-KF |
| Gross Weight | 2.9kg |
| Width | 120mm |
| Mount Type | Through Hole |
| Series | DFM |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Stroke Length | 80mm |
| Bore Diameter | 40mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Cushioning Type | Elastomer |
| Guide Type | Plain Bearing, Ball Bearing |
| Piston Rod Thread Standard | ISO 1179-1 and ISO 228-1 |
Key Features
- Constructed with wrought aluminium alloy, tempered steel, and high alloy stainless steel for durability.
- Equipped with recirculating ball bearings for high torque load applications.
- Features elastomer cushioning plates to reduce noise and extend service life.
- Designed for flexible mounting with supply ports on top and side.
- Operates reliably between -5°C and 60°C with a maximum pressure of 10 bar.
- Includes ISO standard piston rod thread and mounting through holes for secure installation.
- Suitable for industrial applications such as clamping, lifting, stopping, and material handling.
Product Description
Festo DFM-40-80-P-A-KF Pneumatic Guided Cylinder is a precision-engineered pneumatic actuator with a 40mm bore and 80mm stroke length, designed for demanding industrial automation tasks. This double acting cylinder combines drive and guide components in a compact aluminium housing resistant to torque and lateral forces, ensuring robust performance and maintenance-free operation.
The sturdy construction includes a wrought aluminium alloy body, tempered steel yoke plates, and high alloy stainless steel bearing and end caps, all anodised to enhance durability. The recirculating ball bearings enable the cylinder to handle applications with high torque loads effectively.
Flexible elastomer cushioning plates reduce operational noise and improve the actuator's longevity. The cylinder's air supply ports are positioned both on the top and side, allowing for versatile mounting options to fit various industrial setups. The piston rod thread complies with ISO 1179-1 and ISO 228-1 standards, ensuring compatibility with standardized fittings.
The DFM series guided cylinders are designed for industrial use cases such as clamping components securely for further processing, lifting and transporting loads with ease, and safely stopping loads up to 150 kg. This makes it suitable for manufacturing, material handling, and automation applications.
Constructed with high-quality aluminium alloy and stainless steel components. Recirculating ball bearing guides provide superior torque resistance. Double acting pneumatic operation for dynamic and reliable drive. Elastomer cushioning enhances noise reduction and service life.
Complies with RoHS and ISO standards for pneumatic components. Flexible air supply port positioning for versatile installation. Compact dimensions suited for space-constrained industrial environments. German origin ensures high manufacturing quality and standards.
Explore EnvMart's extensive range of pneumatic actuators for precise and reliable industrial fluid power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bore diameter of this model is 40mm.
The stroke length of this pneumatic guided cylinder is 80mm.
This unit has a maximum operating pressure of 10 bar.
It operates reliably between -5°C and 60°C.
The cylinder is constructed with wrought aluminium alloy, tempered steel for the yoke plate, and high alloy stainless steel for the bearing and end cap, all anodised for enhanced durability.
This model features a through hole mount type for secure installation.
It is equipped with elastomer cushioning plates to reduce noise and extend service life.
The piston rod thread complies with ISO 1179-1 and ISO 228-1 standards.
The gross weight of this model is 2.9kg.
It is suitable for industrial applications such as clamping, lifting, stopping, and material handling.
This model features a double acting action type, allowing for dynamic and reliable drive.
This unit is manufactured in Germany, ensuring high quality and standards.
