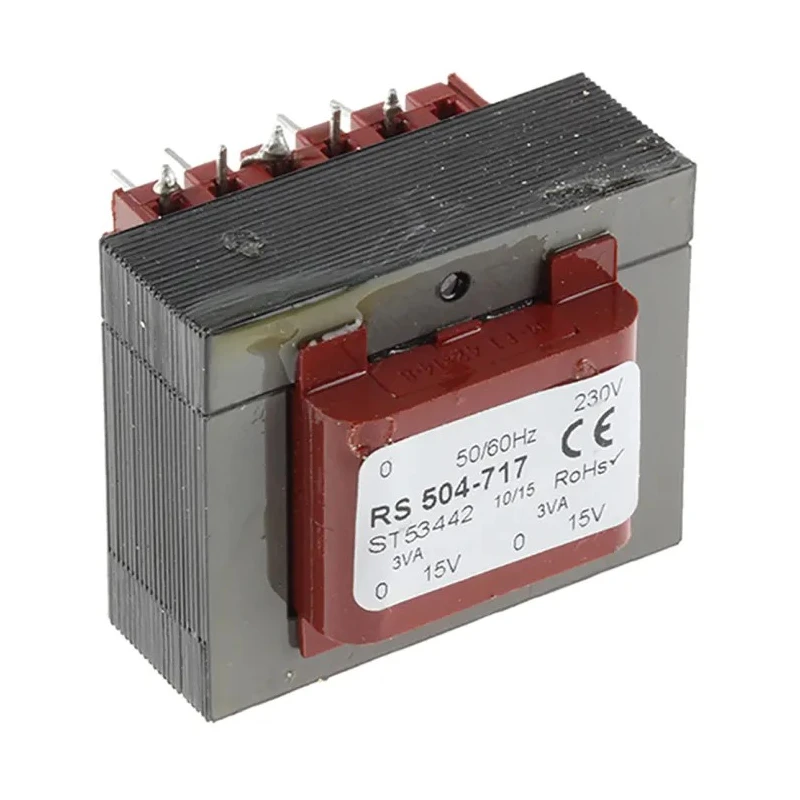

RS PRO 6 to 15 V ac 2 Output Through Hole PCB Transformer, CE, IEC/BS/EN 61558-1, RoHS Certified, IEC/BS/EN 504-717

RS PRO 504-717 6 to 15 V ac 2 Output Through Hole PCB Transformer is an efficient and reliable PCB-mounted transformer designed for electrical and electronic applications requiring dual secondary outputs. The product satisfies stringent industry safety and environmental standards including CE, IEC/BS/EN 61558-1, IEC/BS/EN 61558-2-6, RoHS compliance, and AS/NZS certifications. It features flame retardant materials certified to UL94-V0, enhancing safety during operation.

The transformer is equipped with a thermal fuse integrated in the primary winding providing essential overload and short circuit protection. It operates on a primary voltage of 230 V ac within a frequency range of 50 to 60 Hz and can withstand maximum operating temperatures up to 130°C, making it suitable for demanding industrial environments.

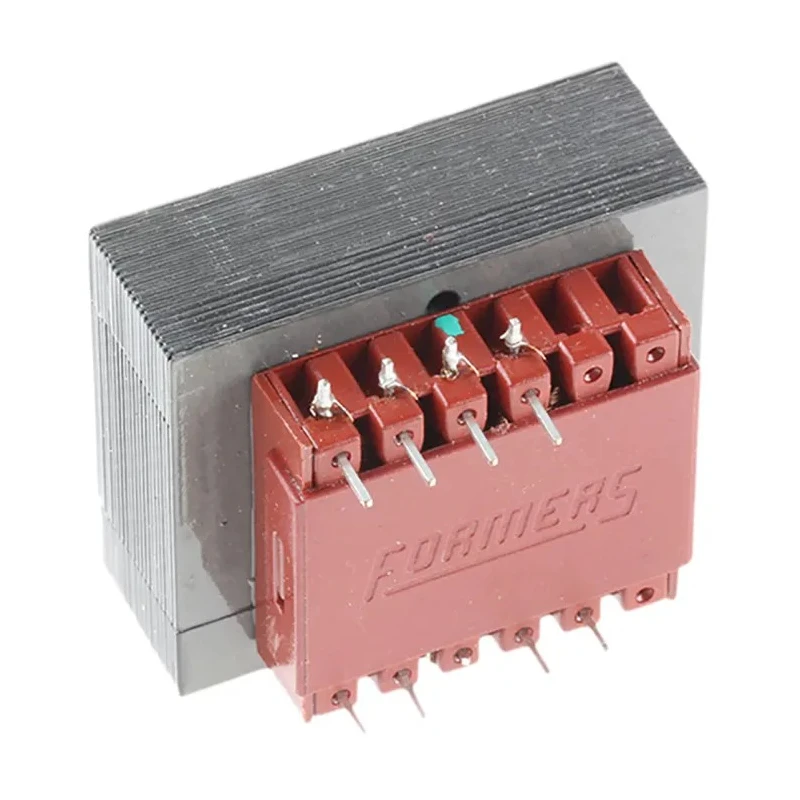

Designed for through-hole PCB mounting, the transformer incorporates fully shrouded windings and extra pins ensuring robust mechanical stability and secure board attachment. Featuring a double section metric bobbin construction with full varnish impregnation, it delivers durable performance and electrical isolation withstanding 4 kV rms.

The dual independent secondary windings allow connection in series or parallel configurations, providing versatile output voltage and current options between 6 to 15 V ac. The compact form factor with 43 mm length, 54 mm width, and 30.42 mm depth coupled with a weight of only 400 grams supports efficient PCB space utilization.

This product is ideal for use in industrial, commercial, laboratory, and manufacturing equipment requiring reliable step-down transformer functionality for power supplies. It aligns with industry standards for product safety and efficiency, delivering high-quality performance for precision electronic workflows.

Dual output secondary voltage ranging from 6 to 15 V ac for versatile applications. Thermal fuse protection embedded in primary winding to enhance operational safety. Flame retardant UL94-V0 rated materials ensure fire safety compliance.

Fully shrouded windings improve electrical isolation and durability. Through-hole mounting for secure integration onto PCB assemblies. Compact size and light weight ideal for space-constrained environments. Operation supported across 50 to 60 Hz frequency with maximum temperature tolerance of 130°C.

Conforms to CE, IEC/BS/EN standards, RoHS, and AS/NZS certifications. Explore our PCB Transformer category for more industrial-grade power management solutions tailored to your specific electronic design requirements.
