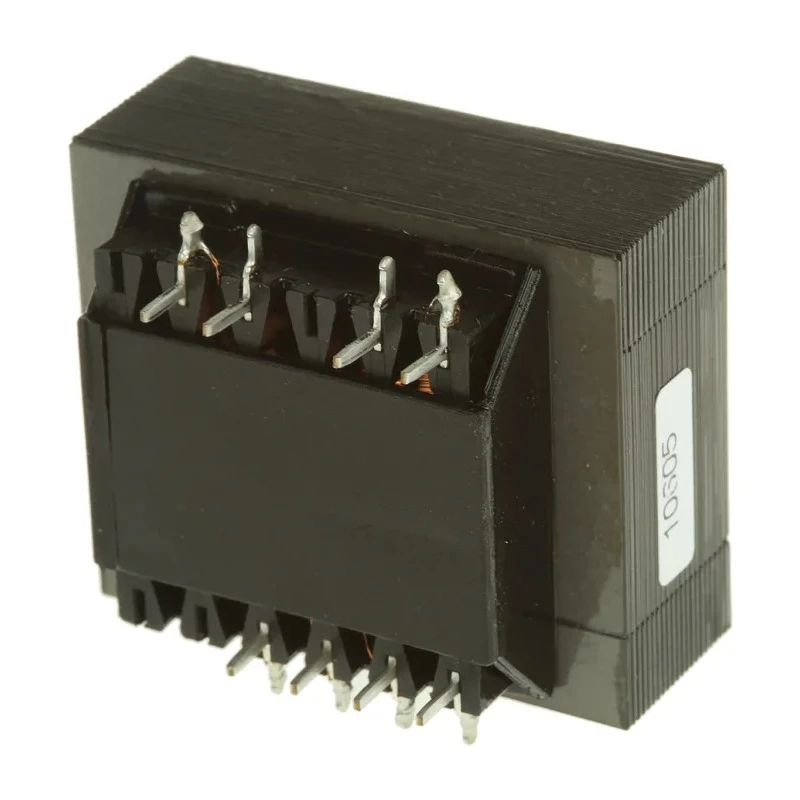

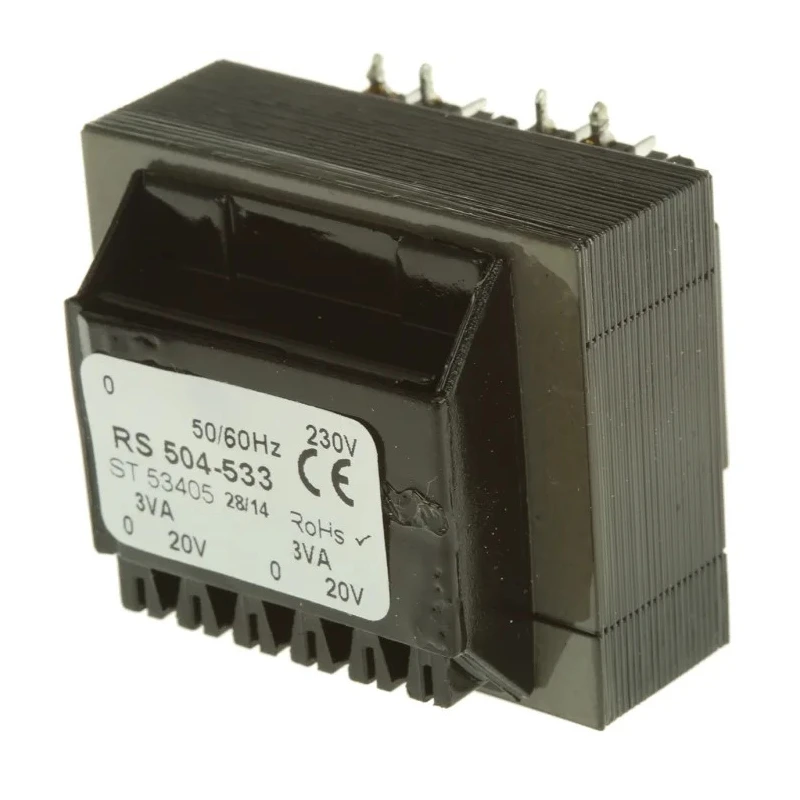

RS PRO PCB Transformer 230 V AC 5 to 24 V AC Secondary Voltage 2 Output Through Hole Mount 12VA Power 504-533

RS PRO 504-533 is a through hole PCB Transformer designed for diverse electronic applications requiring a primary voltage of 230 V AC and secondary voltage outputs ranging from 5 to 24 V AC. It delivers 12VA power with 2 output terminals, enabling flexible voltage configurations for various circuit needs.

The transformer uses fully shrouded bobbins with extra pins for enhanced and secure PCB mounting, optimizing assembly and reliability in industrial and commercial electronics. The device is thoroughly tested both electrically and for flash resistance, complying with rigorous international safety and quality standards including CE, RoHS, IECBSEN 61558-1, and ASNZS 61558 series.

Constructed with double section metric bobbin and fully varnish impregnated for increased durability, it withstands a maximum operating temperature of 130°C ensuring stable performance under demanding environments. Its electrical isolation voltage of 4 kVrms provides safe insulation between primary and secondary circuits essential for user safety and product longevity.

Measuring 43 mm in length, 36 mm in width, and 33 mm in depth and weighing 400 grams, it is compact and lightweight, ideal for PCB layouts with space constraints. The wide operating frequency range from 50 Hz to 60 Hz suits regional power supply variations and diverse application requirements in industrial, laboratory, and HVAC systems.

This transformer is suitable for applications requiring reliable and safe voltage transformation in power supply units, control circuits, and measurement devices. It can be used in manufacturing equipment, electronic assemblies, and other commercial systems needing robust transformer solutions.

This transformer features a through hole mount for secure PCB installation. It operates at a maximum temperature of 130°C ensuring reliability under thermal stress. Designed with fully shrouded bobbins and extra pins for secure mounting.

Meets CE, RoHS, IECBSEN 61558-1, ASNZS 61558.1, IECBSEN 61558-6 standards ensuring compliance with international safety norms. It supports primary voltage of 230 V AC and secondary voltage range from 5 to 24 V AC with 2 independent outputs.

Dimensions measure 43 mm length, 36 mm width, and 33 mm depth suitable for compact PCB designs. Rated for operation at frequency range of 50 to 60 Hz. Weight is approximately 400 grams, balancing durability and size efficiency.

Isolation voltage is rated at 4 kVrms ensuring safe electrical separation between primary and secondary circuits. Full varnish impregnation and double section metric bobbin construction for electrical performance and durability.
