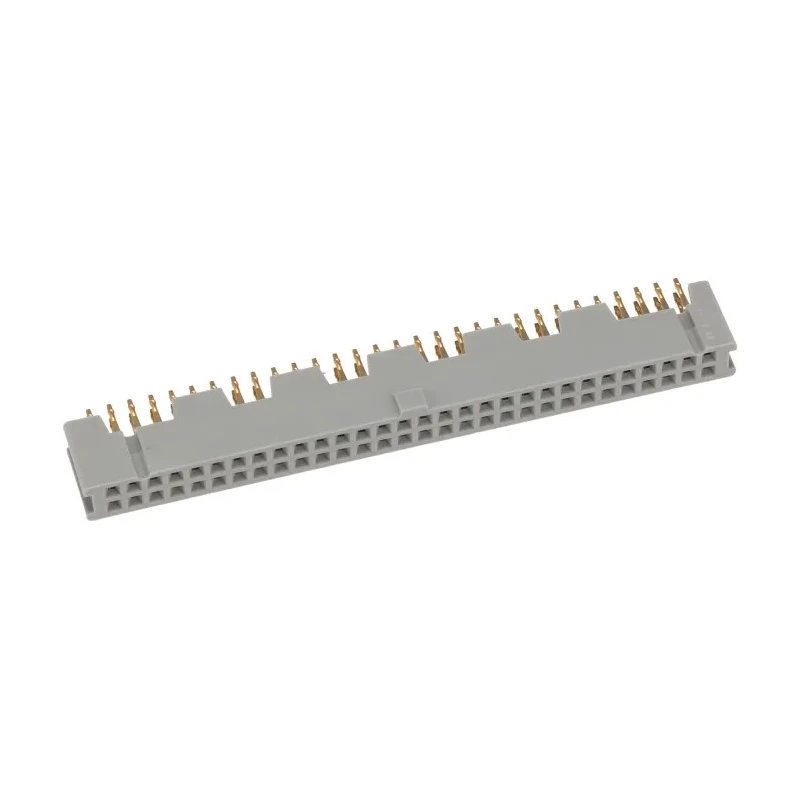

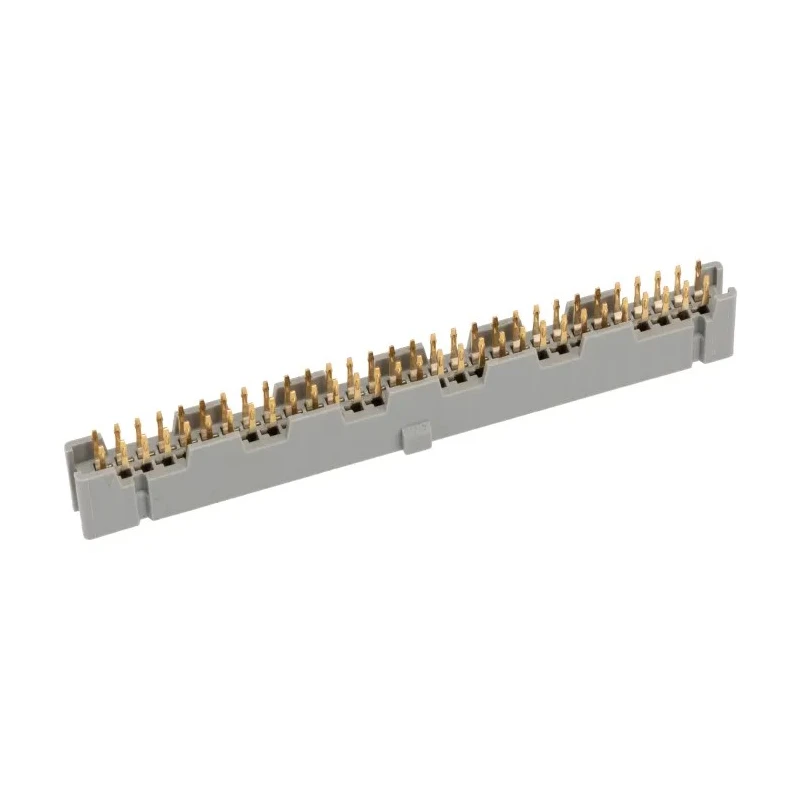

3M 8500 Series Straight Through Hole PCB Socket, 60-Contact, 2 Row, 2.54 mm Pitch, Solder Termination 8560-4500PL

The 3M 8500 Series PCB Socket, model 8560-4500PL, is a high-performance electronic component designed for secure, reliable board-to-board connections in various electronic applications. Featuring 60 female contacts arranged in 2 rows with a standardized 2.54 mm pitch, this socket ensures compatibility with a wide range of circuit board designs.

This PCB socket utilizes a solder termination method that creates robust, permanent connections, effectively minimizing the risk of disconnections even in environments subject to vibration or movement. The straight orientation and through-hole mounting option facilitate durable mechanical assembly for industrial and prototyping uses.

The housing material is crafted from glass-filled polyester, providing mechanical strength and electrical insulation. Contacts are made of copper for excellent electrical conductivity, and nickel plating offers protection against corrosion, thereby ensuring consistent performance over time.

With a rated current of 12 A and voltage rating of 1000 V, the socket is suitable for high-power applications. It operates reliably over a wide temperature range from -55°C to 105°C, making it adaptable for industrial, consumer electronics, automation control systems, and electronic prototyping projects.

Reliable 60-contact, 2-row PCB socket with 2.54 mm pitch. Solder termination for secure connections in demanding environments. Robust glass-filled polyester housing for strength and insulation. High conductivity copper contacts with nickel plating for durability.

Wide operating temperature range from -55°C to 105°C. High voltage and current ratings for safe electrical operation. Compact 10.8 mm stacking height for space optimization. Ideal for industrial equipment wiring and consumer electronics.

Manufactured in Japan, ensuring quality and reliability.

This 3M PCB socket is an essential component for engineers and manufacturers aiming for dependable electronic connections in industrial, commercial, and prototyping environments. Browse more PCB Sockets and connectors at EnvMart to find compatible parts and accessories for your projects.
