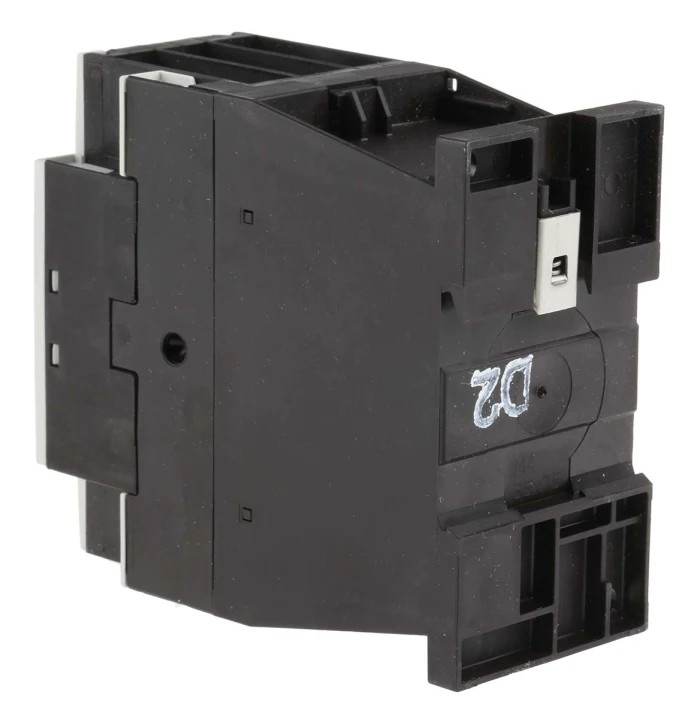

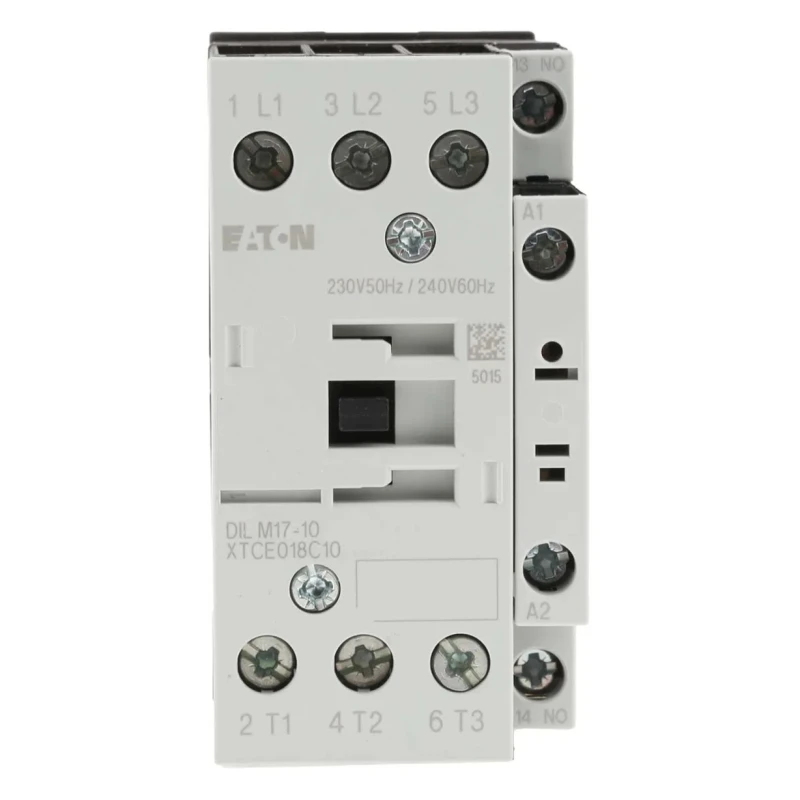

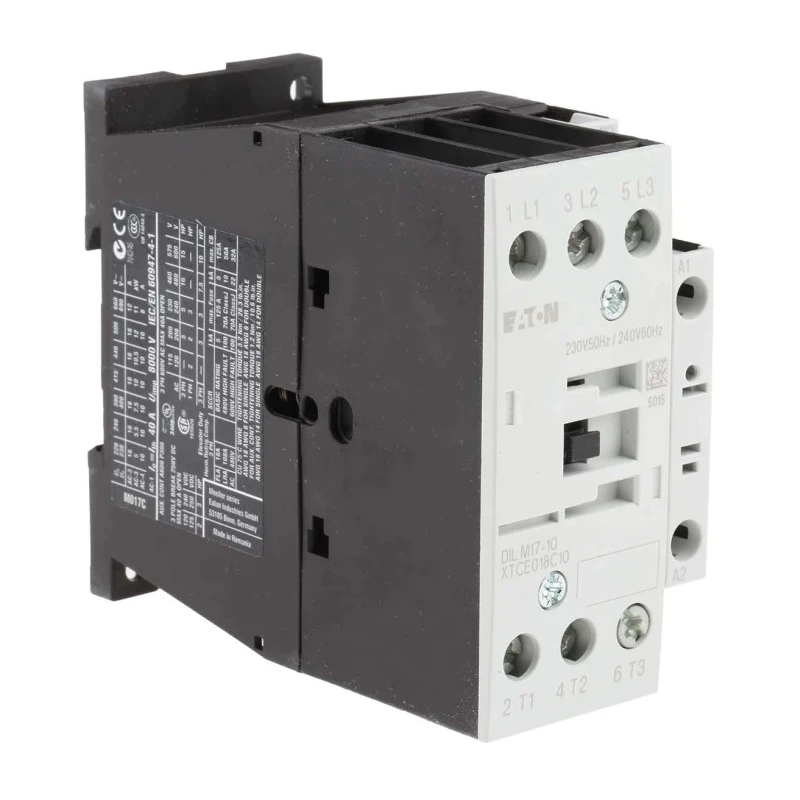

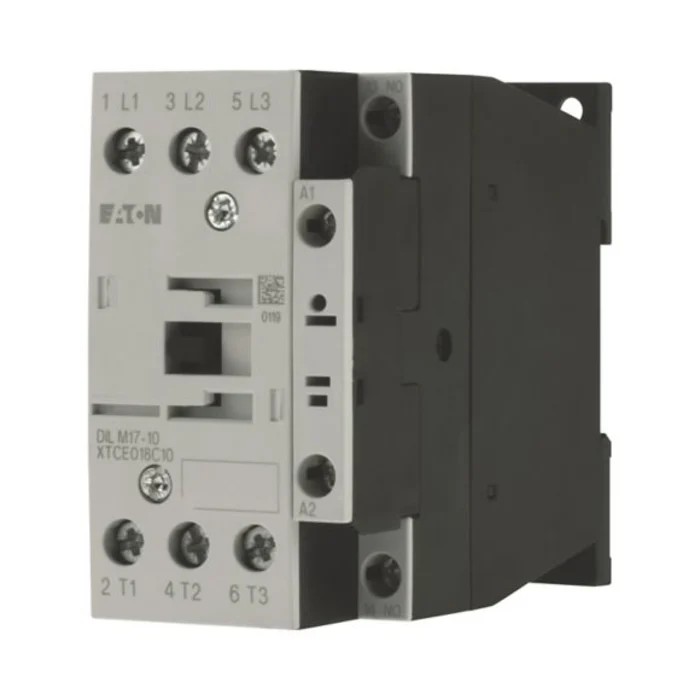

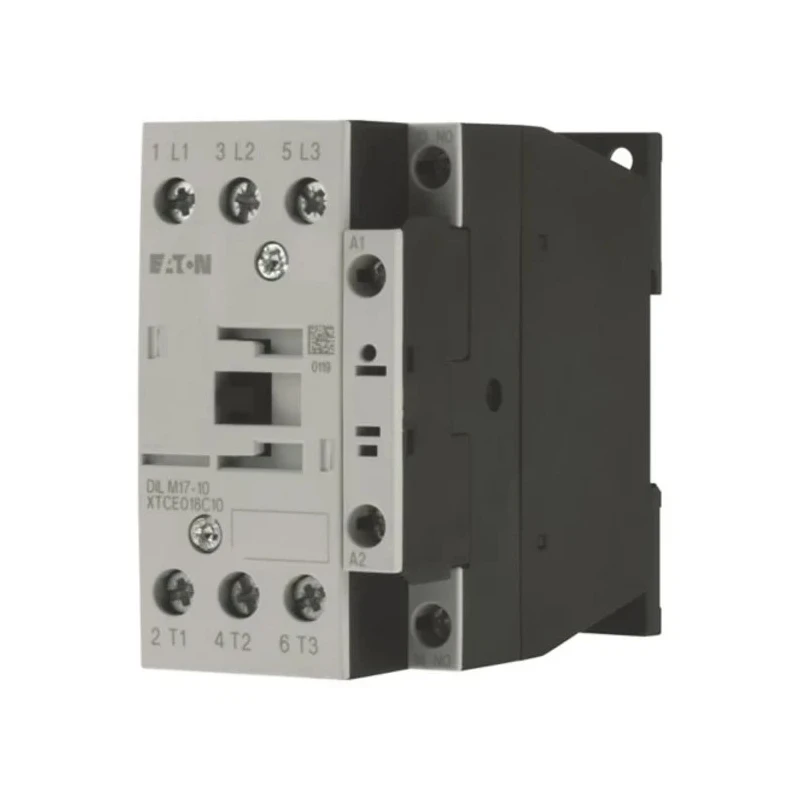

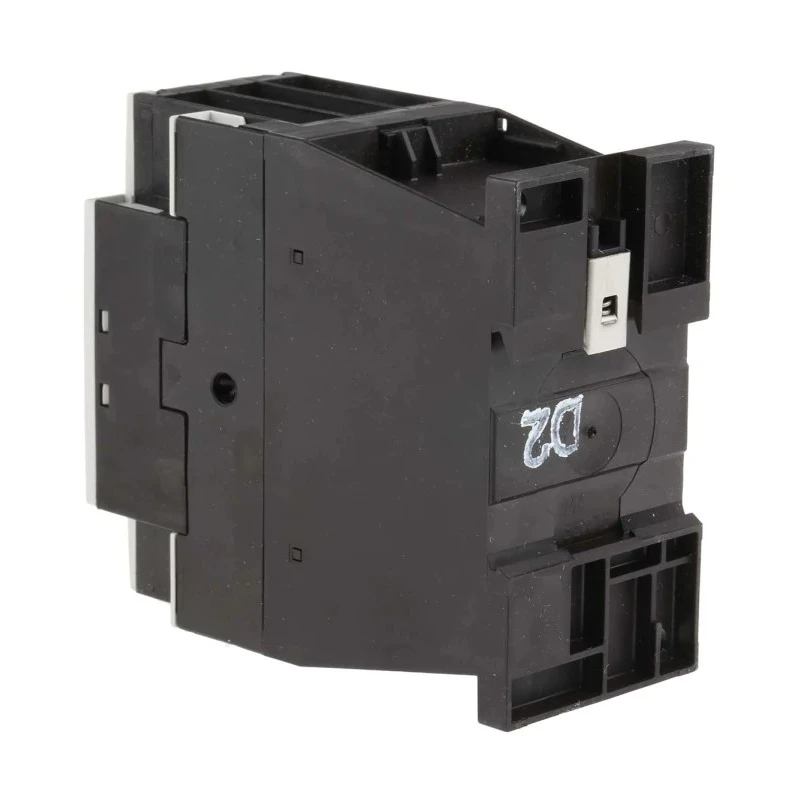

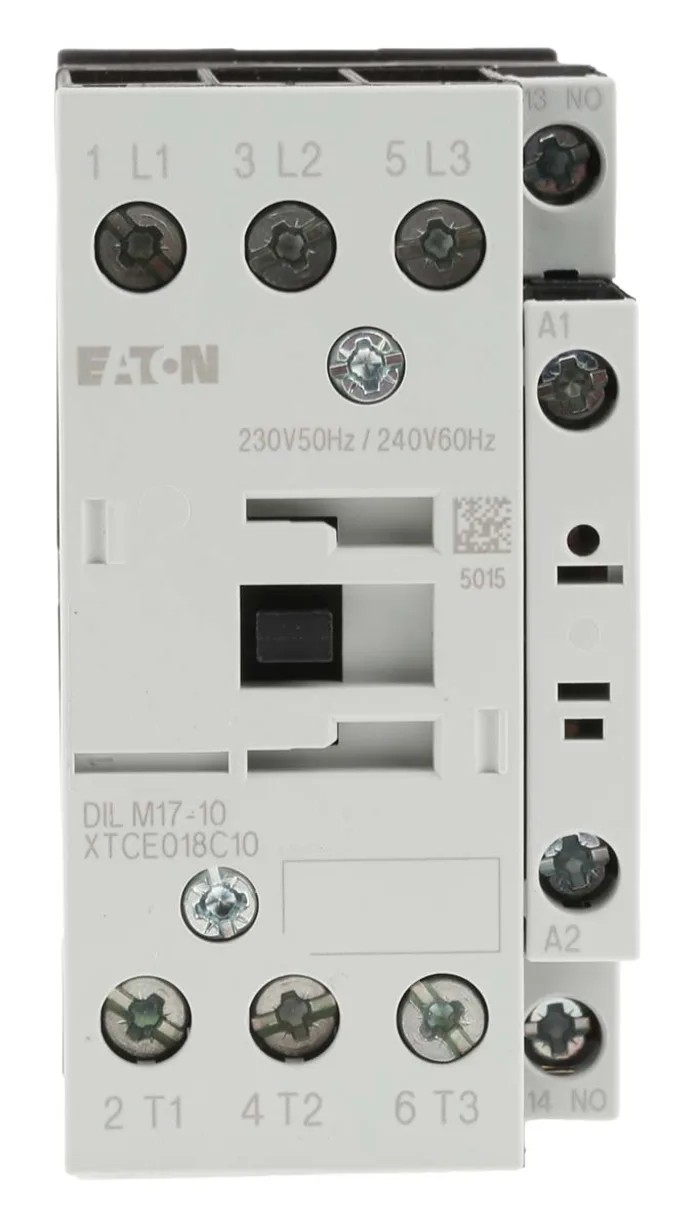

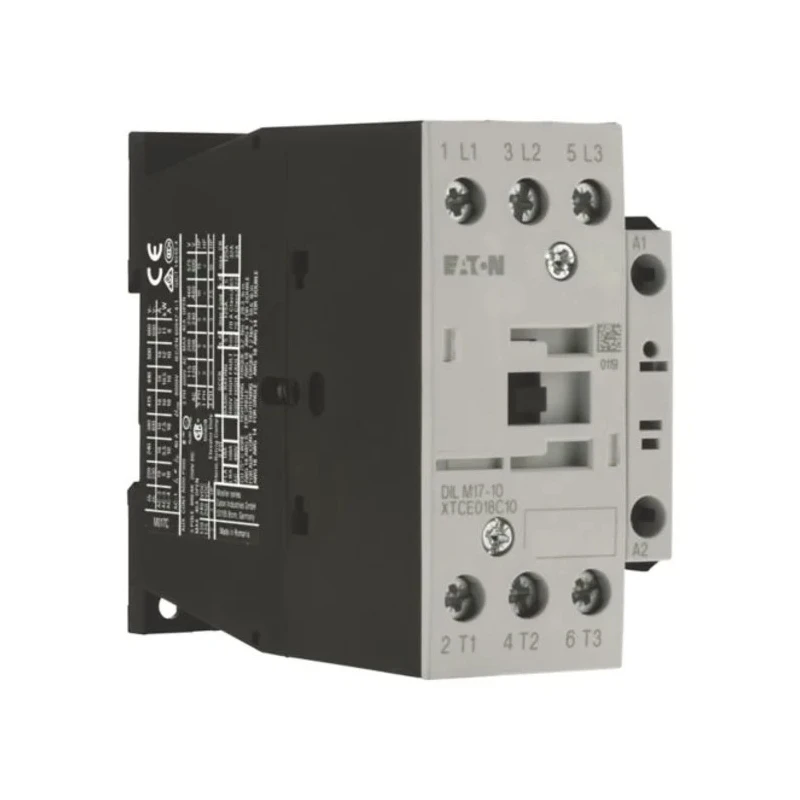

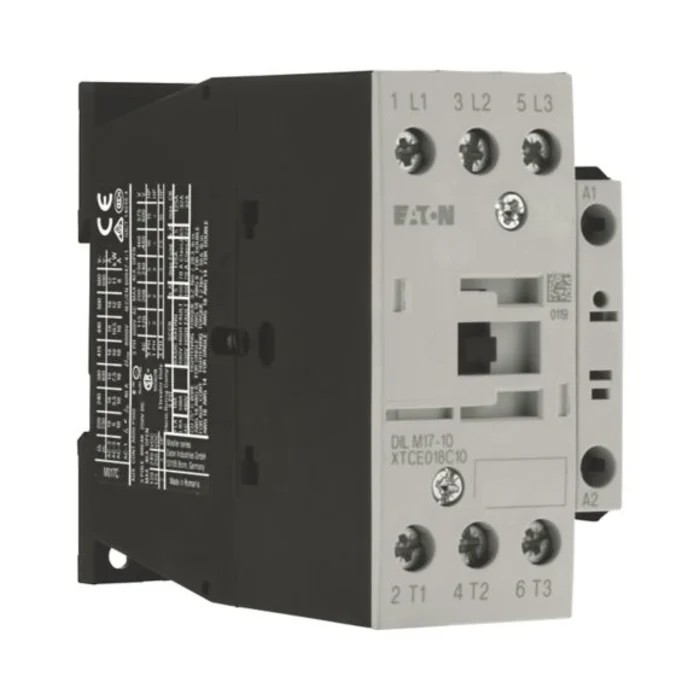

Eaton DILM Contactor, 230V AC Coil, 3-Pole, 17 A, 7.5 kW Power Rating, 3 NO Contacts 277004 DILM17-10(230V50HZ,240V60HZ)
Specifications
| Country of Origin | Romania |
|---|---|
| Brand | Eaton |
| Function | Motor Control, Resistive Load, Reversing |
| Length | 85mm |
| Model | 277004 DILM17-10(230V50HZ,240V60HZ) |
| Depth | 138mm |
| Width | 56mm |
| Mount Type | Screw |
| Series | DILM |
| Power Rating | 7.5kW |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw Clamp |
| Number of Poles | 3 |
| Standards/Approvals | CSA, IEC/EN 60947, UL, VDE 0660 |
| Contact Voltage | 400V ac |
| Coil Voltage | 230V ac |
| Normal State Configuration | 3 NO |
| Contact Current | 17A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NO |
| Operational Current Ie | 18A |
| Control Circuit Voltage Uc | 230V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| WEG CWB Contactor, 24V ac Coil, 3-Pole, 18 A, 7.5 kW 24V ac, 3 NO, 690V acBrand | WEG |
| Min contactor,7.5kW 15.5A 240Vac coilBrand | Moeller |
| Contactor,DIL,3P,230V,7.5kWBrand | Moeller |
Key Features
- Equipped with a coil voltage of 230V AC for efficient control.
- Features 3 poles suitable for three-phase electrical systems.
- Rated for a contact current of 17 A ensuring robust performance.
- Power rating of 7.5 kW at 230V AC for high-power applications.
- Includes 3 normally open (NO) contacts for reliable switching.
- Designed with screw clamp terminals for secure connections.
- Operates within a temperature range of -25°C to 40°C.
- Shock resistant withstanding mechanical shock up to 10g.
Product Description
Eaton 277004 DILM17-10(230V50HZ,240V60HZ) Contactor is engineered for effective motor control and resistive load switching in industrial and commercial electrical applications with a coil voltage of 230V AC and contact current rating of 17 A.
This 3-pole contactor offers a power rating of 7.5 kW at 230V AC and features 3 normally open contacts ensuring reliable switching of three-phase systems up to 400V AC.
Its compact design with dimensions of 85 mm length, 56 mm width, and 138 mm depth makes it suitable for integration into busy electrical panels. The device is rated for operational temperatures ranging from -25°C to 40°C, enabling use in harsh environments.
The contactor provides finger and back-of-hand protection enhancing electrical safety during installation and operation.
It supports a switching frequency of 5,000 operations per hour, making it reliable for fast-paced industrial uses. In addition, the unit is shock resistant up to 10g mechanical shock, suitable for demanding conditions.
Equipped with screw clamp terminals for secure and easy wiring. Auxiliary contact configuration includes one normally open contact for additional control functions. Meets rigorous standards including CSA, IEC/EN 60947, UL, and VDE 0660 for safety and reliability.
Manufactured in Romania, this Eaton contactor is part of the DILM series, known for durability and performance in motor control applications. This product is ideal for industrial, manufacturing, HVAC, and automation control applications requiring reliable switching devices.
Explore more industrial electrical control components and Contactors at EnvMart for efficient and safe power distribution solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton DILM contactor has a power rating of 7.5 kW at 230V AC.
This model has a contact current rating of 17 A, suitable for robust performance in various applications.
The dimensions of this contactor are 85 mm in length, 56 mm in width, and 138 mm in depth.
It is designed with screw clamp terminals for secure and easy wiring connections.
The operational temperature range for this unit is from -25°C to 40°C, allowing it to function in various environments.
This contactor features 3 poles, making it suitable for three-phase electrical systems.
The maximum contact voltage supported by this model is 400V AC.
The auxiliary contact configuration includes one normally open (NO) contact for additional control functions.
This contactor meets several standards including CSA, IEC/EN 60947, UL, and VDE 0660 for safety and reliability.
It supports a switching frequency of 5,000 operations per hour, making it suitable for fast-paced industrial applications.
This contactor is engineered for motor control and resistive load applications in industrial and commercial settings.
The Eaton DILM contactor is manufactured in Romania.
