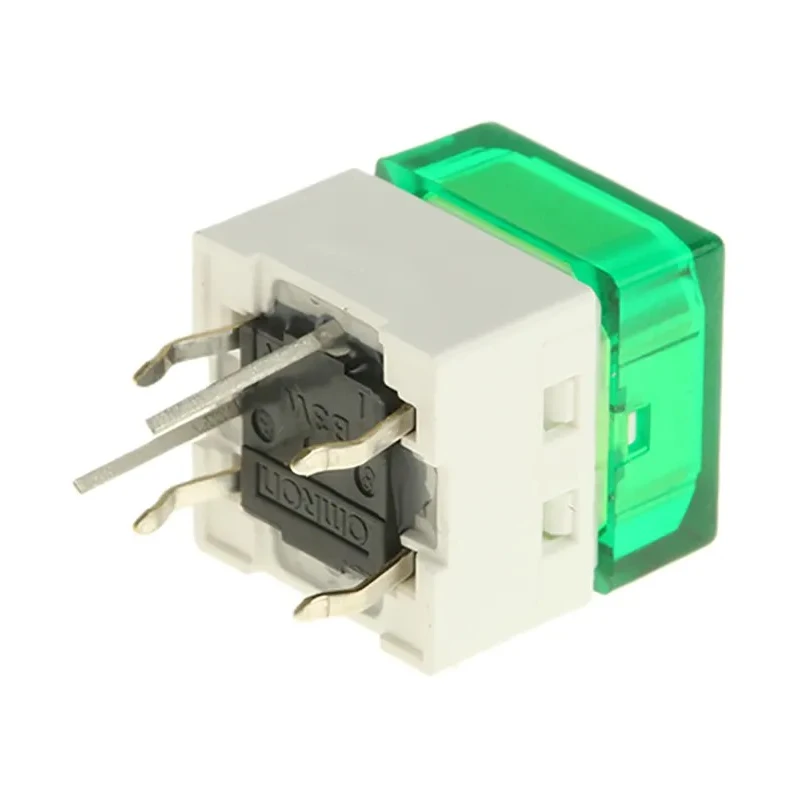

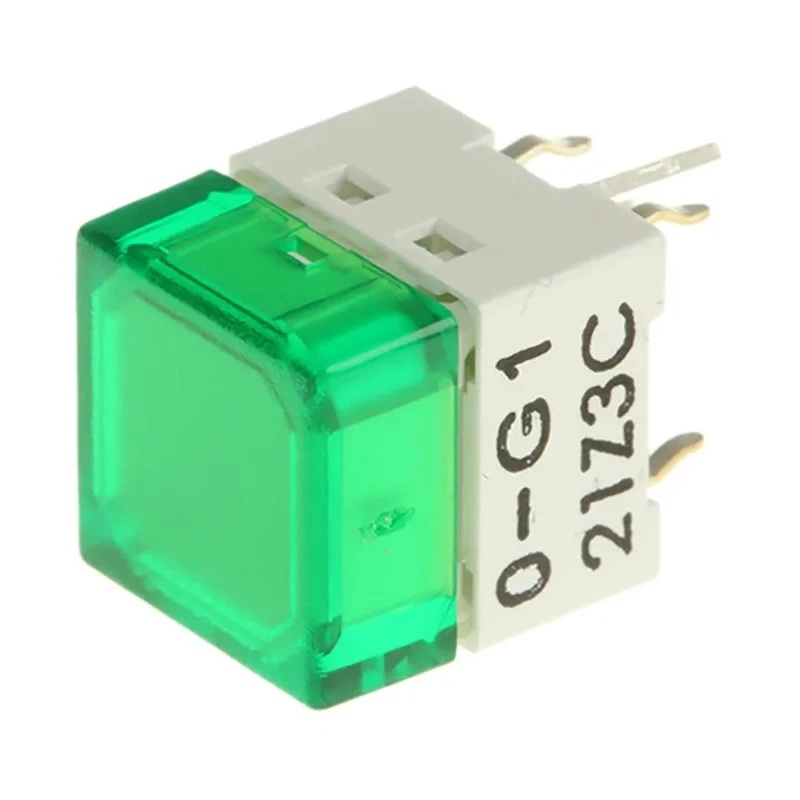

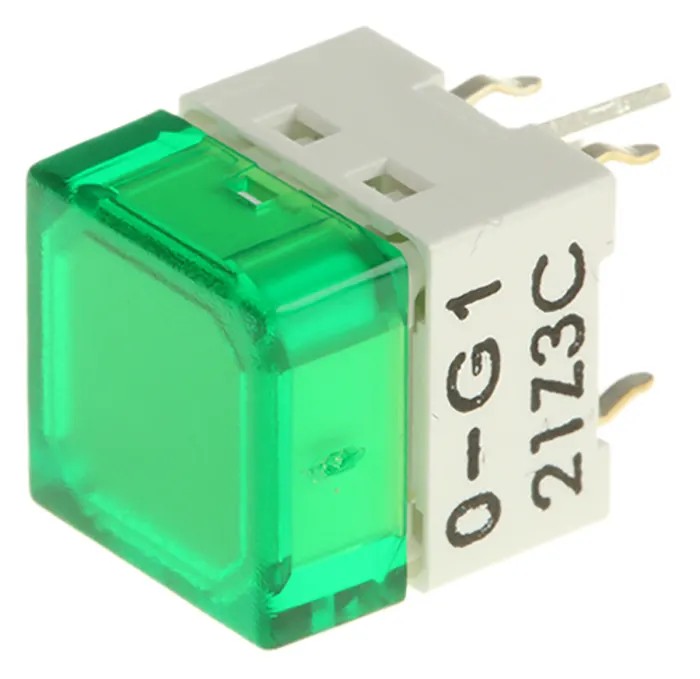

Omron Illuminated Green Tactile Switch Cap SPST-NO 50mA 24V dc PCB Mount IP00
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 10.2mm |
| Length | 10mm |
| Model | IP00 |
| IP Rating | IP00 |
| Width | 10mm |
| Mount Type | PCB |
| Series | B3W |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST-NO |
| Switch Configuration | Off-On |
| Minimum Operating Temperature | -25°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Green |
| Contact DC Voltage | 24V dc |
| Actuator Style | Cap |
| Actuator Orientation | Straight |
| Switch Contact Current | 50mA |
| Operating Force | 1.57N |
| Mechanical Life | 1000000Operations |
| IP00 White Cap Tactile Switch, SPST 50 mA @ 24 V dcBrand | Omron |
Key Features
- Compact size of 10mm x 10mm with 10.2mm height for easy PCB integration.
- Illuminated actuator with green cap providing bright and uniform color through a diffusion panel.
- Sealed switch construction ensuring high reliability against dust infiltration.
- Operating force of 1.57 Newtons with a mechanical life of 1,000,000 operations.
- Wide operating temperature range from -25°C to 70°C suitable for various industrial environments.
- Complies with RoHS standards for environmental safety.
- Contact current rating up to 50mA and contact voltage rating of 24 V dc.
- SPST-NO switch configuration for momentary on-off switching applications.
Product Description
Omron B3W-9000-G1G illuminated green tactile switch cap is a high-reliability component designed for PCB mounting applications in electronics and electrical industries. The switch features a single-pole single-throw normally open (SPST-NO) configuration, providing momentary switching operation ideal for keyboard and control panel use.
The compact 10x10mm footprint and 10.2mm height allow easy integration on circuit boards with low profile. The green actuator cap is illuminated via an internally diffused LED, delivering bright and uniform color indication. The switch cap resists dust ingress with its sealed parts, ensuring enhanced contact reliability and long service life rated to 1,000,000 actuations.
The device supports a maximum switching current of 50mA and voltage of 24 V dc, with an operating force of 1.57 N to balance tactile feedback and user ease. It operates reliably in industrial environments over a temperature range from -25°C to 70°C under 60% maximum humidity without icing or condensation.
Manufactured in China, the product complies with RoHS environmental standards. The solder terminal type and straight actuator orientation facilitate PCB assembly and maintain robust electrical connections. Its IP00 ingress protection rating indicates suitability for indoor and dust-controlled environments.
Compact 10x10x10.2mm size for low-profile PCB applications. Illuminated green cap with uniform light diffusion. Sealed construction provides dust resistance. SPST-NO momentary switch configuration. Operating force rated at 1.57 Newtons.
Mechanical durability with 1 million operations lifespan. Operational temperature range -25°C to 70°C. Contact rating up to 50mA at 24 V dc. RoHS compliant for environmental safety. Solder terminal type with straight actuator for easy mounting.
This tactile switch cap is widely used in electronics manufacturing, automation systems, instrumentation control panels, and industrial equipment where compact and reliable momentary switches are required. Browse more Tactile Switch solutions and related components on EnvMart for comprehensive industrial switching needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact current rating is up to 50mA.
It operates reliably within a temperature range of -25°C to 70°C.
This tactile switch features a single-pole single-throw normally open (SPST-NO) configuration.
The mechanical life of this switch is rated at 1,000,000 operations.
The dimensions of this model are 10mm x 10mm with a height of 10.2mm.
It is designed for PCB mounting with solder terminals.
Yes, it complies with RoHS standards for environmental safety.
The operating force is rated at 1.57 Newtons.
The actuator cap is green and is illuminated for visibility.
The IP rating is IP00, indicating it is suitable for indoor and dust-controlled environments.
It is suitable for keyboard and control panel applications in electronics manufacturing and industrial equipment.
The contact voltage rating is 24 V dc.
