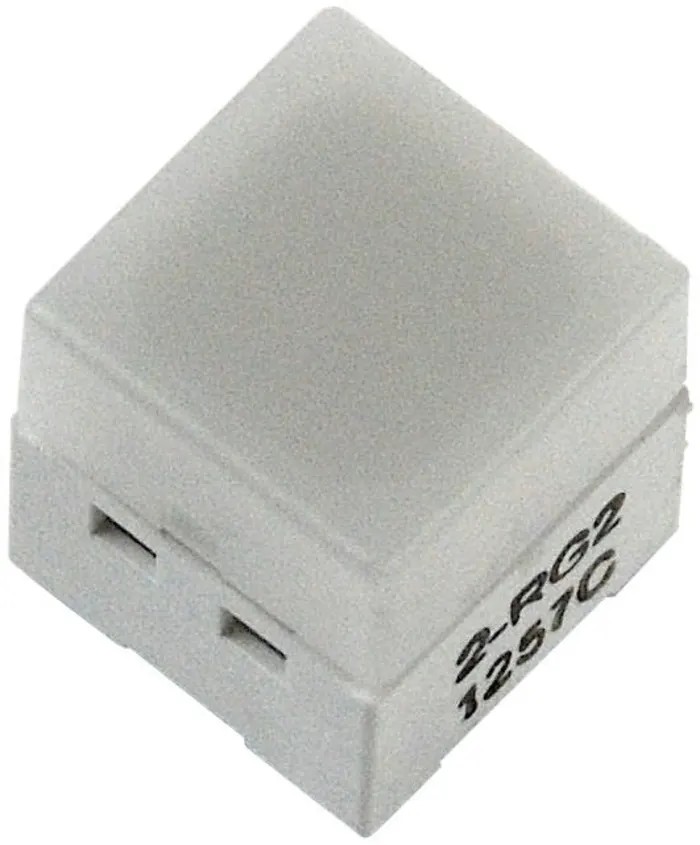

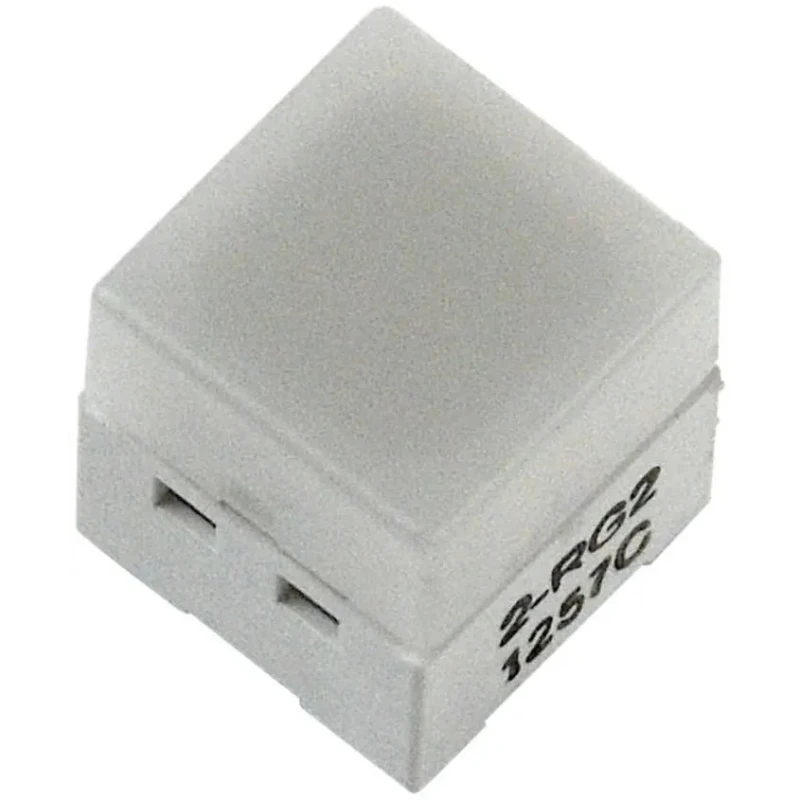

Omron Illuminated White Tactile Switch Cap SPST-NO 50mA 24V DC PCB Mount IP00 B3W IP00
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 10.2mm |
| Length | 10mm |
| Model | IP00 |
| IP Rating | IP00 |
| Width | 10mm |
| Mount Type | PCB |
| Series | B3W |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST-NO |
| Switch Configuration | Off-On |
| Minimum Operating Temperature | -25°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | White |
| Contact DC Voltage | 24V dc |
| Actuator Style | Cap |
| Actuator Orientation | Straight |
| Switch Contact Current | 50mA |
| Operating Force | 1.57N |
| Mechanical Life | 1000000Operations |
| Aratas IP00 Red Tactile Switch Cap, SPST-NO 50mA 24 V dc, PCBBrand | Omron |
Key Features
- The switch features a straight cap actuator style with white color.
- It operates with 1.57N force and supports mechanical life of 1,000,000 operations.
- Compact 10x10x10.2mm size accommodates low-profile designs.
- Wide operating temperature range from -25°C to 70°C ensures reliability in various environments.
- IP00 rating confirms no ingress protection and suitability for protected enclosures.
- Illuminated with built-in LEDs providing bright uniform color and visual indication.
- Switch configuration is momentary operation with Off-On contact switching.
- Compliance with RoHS environmental standards guarantees safe and eco-friendly use.
Product Description
Omron IP00 illuminated tactile switch cap (model IP00) is a momentary, single-pole single-throw normally open (SPST-NO) switch designed specifically for PCB mounting applications requiring reliable actuation and visual feedback. It supports a maximum contact DC voltage of 24V and switch contact current of 50mA, making it suitable for low-power electronic control circuits. The switch actuator is a white cap with straight orientation providing ergonomic tactile feedback with an operating force of 1.57N.
The compact footprint measures 10mm by 10mm with a height of 10.2mm, supporting efficient space utilization on PCBs in industrial automation, electrical control systems, instrumentation panels, and consumer electronic devices. This switch is illuminated by integrated LEDs that deliver a bright, uniform color through a diffusion panel, enhancing operational status indication on control panels.
Operating reliably in temperatures from -25°C to 70°C at up to 60% humidity (non-condensing), this switch meets RoHS directives for safe use in environmentally sensitive applications. Its mechanical life of 1,000,000 operations ensures long-term durability and dependable performance in industrial, laboratory, HVAC, manufacturing, and automation systems.
The illuminated tactile switch improves machine interface functionality with quick, positive switch response. Its solder terminal type allows secure PCB mounting and easy assembly. The IP00 ingress protection rating means it requires enclosure protection from dust and moisture exposure.
Suitable use cases include electronic instrumentation, control panels, automation systems, and embedded device interfaces. Available with various LED colors and cap styles for customization and application-specific visibility.
The package contains one Omron B3W series illuminated tactile switch with white cap, model IP00. Explore more Tactile Switches and components in EnvMart’s Electronics & Electricals category for precision switching solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum contact DC voltage for this switch is 24V.
It has a mechanical life of 1,000,000 operations, ensuring long-term functionality.
The switch has a compact size of 10mm x 10mm with a height of 10.2mm.
The operating temperature range is from -25°C to 70°C.
This model is designed for PCB mounting with solder terminals.
The switch supports a contact current rating of 50mA.
It features a straight cap actuator style with a white color.
The switch configuration is momentary with Off-On contact switching.
Yes, it is illuminated with built-in LEDs that provide a bright, uniform color.
This model complies with RoHS environmental standards, ensuring safe use in sensitive applications.
It is suitable for applications in industrial automation, electrical control systems, instrumentation panels, and consumer electronic devices.
The operating force required is 1.57N.
