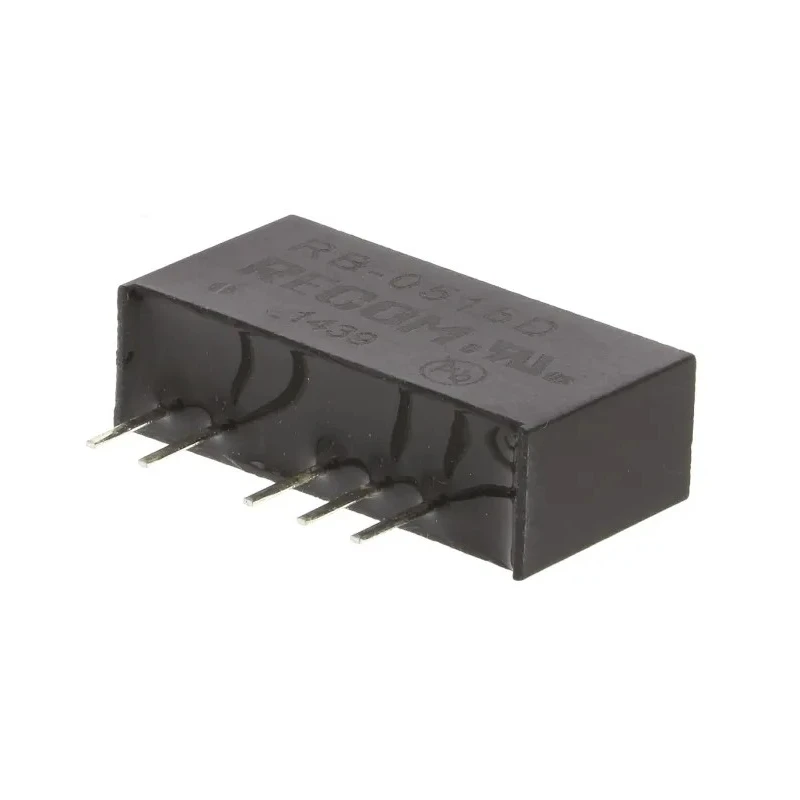

Recom 1W SIP Single/Dual Output Unregulated Isolated DC-DC Converter, 15V dc, -15V dc, 33mA Output Current, 5V dc RB-0515D
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters Recom RB DC/DC Converter, 15V dc, -15 V dc/ 33 mA |
| Brand | Recom |
| Efficiency | 84% |
| Length | 19.6mm |
| Model | RB-0515D |
| Depth | 10.2mm |
| Gross Weight | 2.2g |
| Width | 10.2mm |
| Mount Type | Through Hole |
| Series | RB |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 151000h |
| Number of outputs | 2 |
| Ripple and Noise | 100mV Pk-Pk |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 5V dc |
| Standards/Approvals | RoHS, UR |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 7 |
| Output Voltage 1 | 15, -15V dc |
| Output Current 1 | 33mA |
| Output Voltage Adjustment Range | 3.3/24 V |
| Isolation Voltage | 500V ac |
Key Features
- This SIP7 package module provides an output voltage of 15V and -15V with a current of 33mA.
- The converter supports input voltage range from 4.5V to 5V DC.
- It features 500V AC isolation voltage for safety and stable operation.
- Operating temperature ranges from -40°C to 85°C ensuring reliable performance in harsh environments.
- Compact size with dimensions of 19.6mm length, 10.2mm width, and 10.2mm depth suits PCB through-hole mounting.
- The unit has a Mean Time Between Failures (MTBF) of 151000 hours for dependable use.
- Efficient operation at 84% efficiency minimizes energy losses.
- Compliance with RoHS and UL94V-0 standards ensures environmentally safe and flame-retardant packaging.
Product Description
Recom RB-0515D is a 1W SIP single/dual output unregulated isolated DC-DC converter designed for power supply applications requiring compact and reliable voltage conversion.
This module supports dual outputs of +15V and -15V DC with an output current of 33mA, making it suitable for low-power analogue circuits, signal processing, and isolated power supply needs in industrial and electronic equipment.
The converter operates with a DC input voltage range from 4.5V to 5V and achieves a high isolation voltage rating of 500V AC to ensure safety between input and output circuits. Its excellent efficiency of 84% reduces heat generation and power consumption.
The RB-0515D comes in a SIP7 through-hole package, standard industry SIP7 pin-outs, measuring 19.6mm in length, 10.2mm in width, and 10.2mm in depth, enabling easy PCB mounting and integration into compact designs.
Designed to operate reliably in temperatures ranging from -40°C to 85°C without derating, this converter is well suited for harsh industrial environments, instrumentation, communication equipment, laboratory devices, and other applications that require stable isolated voltages with low ripple and noise (100mV peak-to-peak).
With a MTBF of 151000 hours and compliance to RoHS and UL94V-0 flame retardant material standards, the RB-0515D ensures quality and safety in electronic systems. This DC-DC converter is ideal for industrial, laboratory, and commercial electronics power supply solutions.
Through-hole mounting facilitates assembly and repair in circuit designs. Lightweight at 2.2g aiding in portable device power supplies. High isolation voltage and efficiency enhance overall system durability. The product originates from Taiwan, Province Of China, reflecting high manufacturing standards.
Explore EnvMart for more high-quality power supply components like DC-DC converters and voltage converters for your industrial and electronic needs.
Explore more products in our DC/DC Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides dual output voltages of +15V and -15V DC.
The maximum output power of the RB-0515D is 1W.
It supports an input voltage range from 4.5V to 5V DC.
The efficiency of the RB-0515D is rated at 84%.
This unit measures 19.6mm in length, 10.2mm in width, and 10.2mm in depth.
The isolation voltage for this model is 500V AC.
It operates reliably within a temperature range of -40°C to 85°C.
The ripple and noise is specified at 100mV peak-to-peak.
The weight of this model is 2.2g.
This unit is designed for through-hole mounting.
It complies with RoHS and UL94V-0 standards.
The MTBF for the RB-0515D is rated at 151,000 hours.
