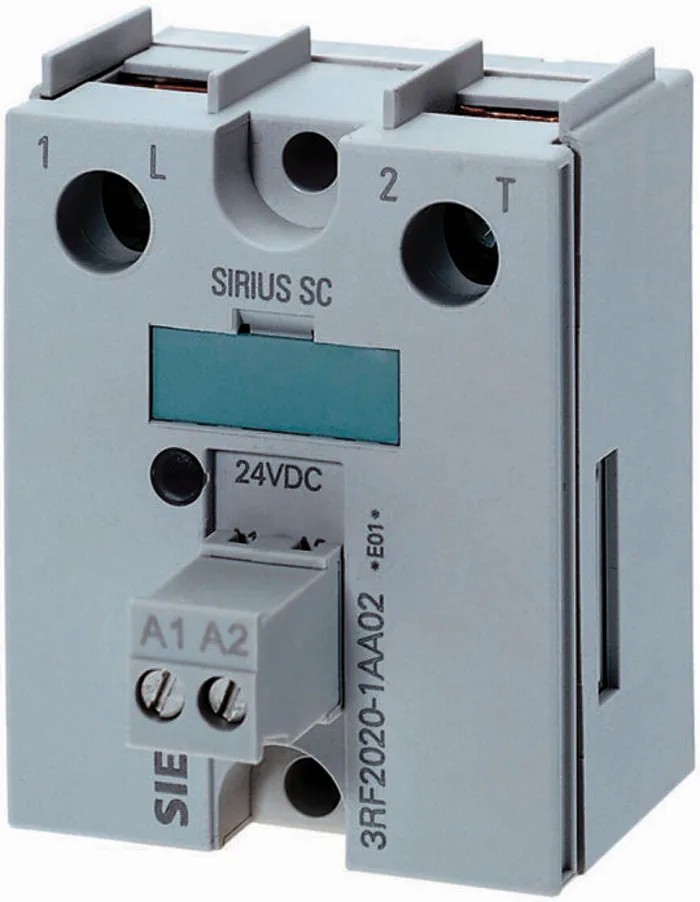

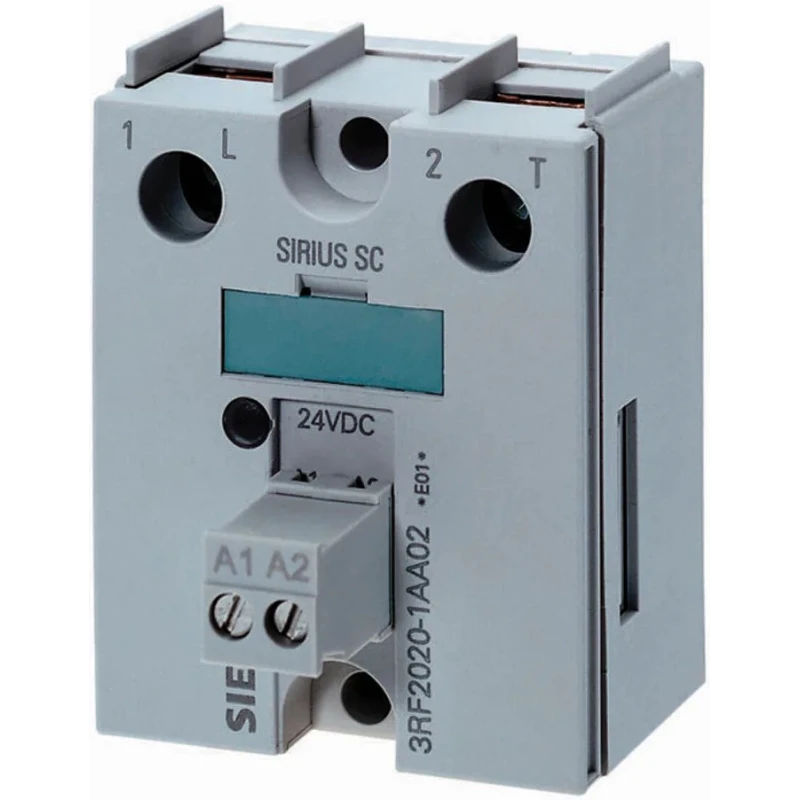

Siemens 3RF2 Series Solid State Relay, 50 A Load Current, DIN Rail Mount, 230 V Load, 24V DC Control 3RF2050-1AA02

Siemens 3RF2050-1AA02 is a high-performance 3RF2 Series Solid State Relay designed for industrial and automation applications requiring reliable switching of electrical loads up to 50 A. It supports a maximum load voltage of 230 V with a compact DIN rail mounting format, facilitating easy integration in control panels and distribution systems.

The device operates on a control voltage range from 15 V dc to 24 V dc, providing flexibility and precision in control circuit designs. Its zero-cross switching function, combined with thyristor output technology, reduces electrical noise and enhances operational stability. The relay features screw-type terminals that enable quick, secure, and maintenance-friendly wiring connections.

Constructed with an IP20 rated enclosure, the solid state relay offers protection against solid foreign objects and limited dust ingress, suitable for most industrial environments. It operates reliably across a wide temperature range of -25°C to 60°C, making it adaptable for use in various conditions.

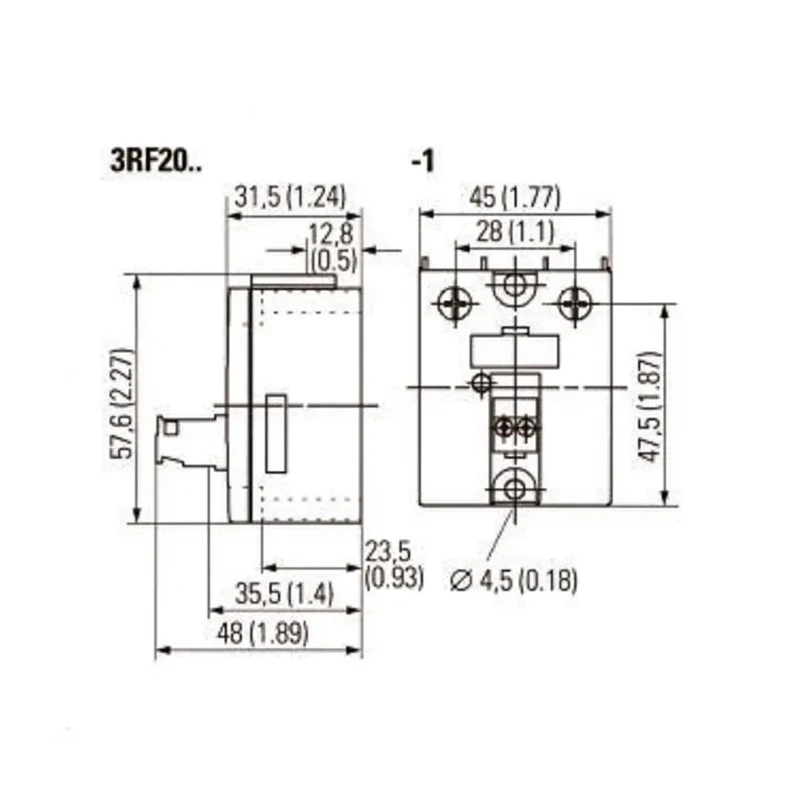

The compact dimensions of 57.6 mm height, 45 mm width, and 45 mm length allow space-saving installation in control cabinets or equipment racks. Compliance with global certifications such as UR, EAC, and CSA assures safety and performance standards are met.

Off-state leakage current is maintained at a low 10 mA, optimizing energy usage and ensuring minimal loss during operation. This model is produced in Germany, reflecting Siemens' commitment to quality and engineering excellence.

This solid state relay is ideally suited for electrical system automation, industrial machinery controls, HVAC system controllers, and manufacturing equipment requiring precise, reliable electrical load switching.

Investing in Siemens 3RF2050-1AA02 ensures robustness, efficiency, and longevity in critical relay applications. Explore more high-quality Siemens electrical components and automation products at EnvMart to support your industrial automation projects.

Supports maximum load voltage of 230 V and load current of 50 A. Operates with control voltage from 15 V dc up to 24 V dc for precise switching. Compact design with dimensions: Height 57.6 mm, Width 45 mm, Length 45 mm. Uses high-quality thyristor output for reliable zero-cross switching functionality.

Screw terminal connections ensure fast and secure installation. IP20 rated enclosure provides protection against solid objects and limited ingress of dust. Operating temperature range from -25°C to 60°C suitable for diverse industrial environments.

Designed to meet international standards including UR, EAC, and CSA approvals. Off state leakage current limited to 10 mA ensuring energy efficiency. Manufactured in Germany ensuring premium quality and adherence to rigorous quality controls.
