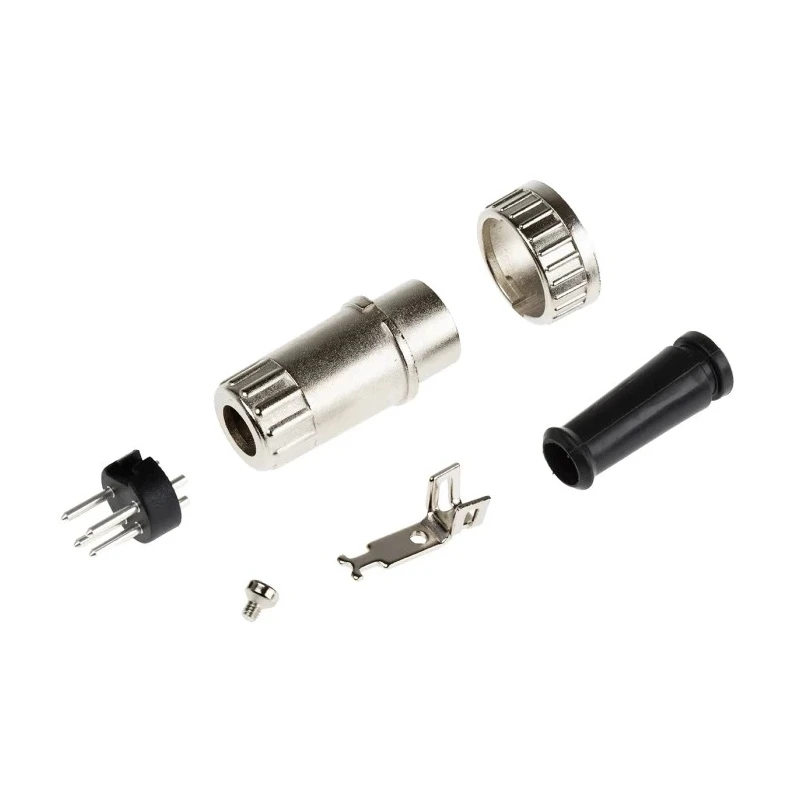

RS PRO 4 Pole Straight Standard DIN Plug, Bayonet Locking, 4A Current, 100V AC, Cable Mount, Model 491-015
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 100V ac |
| Brand | RS PRO |
| Orientation | Straight |
| Current | 4A |
| Model | 491-015 |
| Mount Type | Cable |
| Housing Material | ABS |
| Contact Material | Brass |
| Series | RS PRO |
| Maximum Operating Temperature | 70°C |
| Insulation resistance | 100MΩ at 500V DC min |
| Minimum Operating Temperature | -25°C |
| Voltage Withstand | 250V AC for 1 minute |
| Shield Type | Shielded |
| Contact Resistance | Pins 30mΩ max. Shell 50mΩ max |
| Pole Format | 4 |
| Contact Plating | Silver |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Connector Gender | Male |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Shield cover and Bayonet cap | Zinc Alloy Nickel Plated |
| Set screw and 'T' holder | Steel Nickel Plated |
| RND, RND 4 Pole Straight Connector, 1A, 100V, Bayonet, CableBrand | RND |
| RND, RND 4 Pole Straight DIN Connector, 7A, 125V, Threaded, Panel MountBrand | RND |
| 592 4 Pole Din, 2A, 34 V ac/dc, Bayonet, Male, Cable MountBrand | NEUTRAL |
Key Features
- The plug supports a current of 4A and operates up to 100V AC voltage.
- It features a cable mount type with 4 contacts arranged in a straight orientation.
- Housing is made of durable ABS material, enhancing mechanical protection.
- Contacts are brass with silver plating for low resistance and corrosion protection.
- The bayonet locking mechanism offers quick and secure connectivity.
- Suitable for use in various industrial and electronic applications requiring DIN connectors.
- Maintains insulation resistance of 100MΩ at 500V DC and contact resistance pins max 30mΩ.
- Operating temperature range from -25°C up to 70°C ensures versatility in conditions.
Product Description
The RS PRO 491-015 model is a 4 Pole Straight Standard DIN Plug developed for dependable cable connections in electronic and industrial contexts. It integrates a bayonet locking system providing secure and fast mating with appropriate chassis mounted sockets.
Constructed with ABS housing and shielded construction, it includes brass contacts plated with silver to minimize contact resistance and protect against corrosion. This plug demonstrates a current rating of 4A and supports an operating voltage of 100V AC.
Its design features a straight orientation with a cable mount for ease of integration in cable assemblies. The bayonet locking mechanism and supplied locking rings ensure robust and safe connections in demanding environments.
Insulation resistance is rated at a minimum of 100MΩ at 500V DC, while contact resistance is tightly controlled to a maximum of 30mΩ for pins and 50mΩ for the shell. The unit withstands voltages up to 250V AC for 1 minute during testing.
Operating temperatures range from -25°C to 70°C, making it suitable for various industrial, manufacturing, and electronics applications where reliable signal and power transmission is crucial.
The plug has 4 silver-plated brass contacts for enhanced conductivity and durability. Bayonet lock and shielded body ensure secure connections and EMI protection. ABS housing provides mechanical strength and environmental resistance.
Operating temperature supports diverse industrial environments. Particularly applicable in electronic assembly, power connectors, and cable terminations.
This RS PRO DIN Plug fits seamlessly in applications demanding reliable electrical connections and ease of installation. It is compatible with RS PRO’s range of DIN connectors including various pole formats and mounting types.
Explore the extensive catalog of RS PRO connectors and explore related accessories on EnvMart for secure, industrial-grade electrical connections.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RS PRO 491-015 DIN plug supports a current rating of 4A.
It operates at a maximum voltage of 100V AC.
The housing is made of ABS material, while the contacts are brass with silver plating for low resistance and corrosion protection.
The insulation resistance is rated at a minimum of 100MΩ at 500V DC.
It can operate within a temperature range of -25°C to 70°C.
The bayonet locking mechanism provides a quick and secure connection when mating with compatible chassis mounted sockets.
The contact resistance is a maximum of 30mΩ for the pins and 50mΩ for the shell.
Yes, it is compatible with RS PRO’s range of DIN connectors, including various pole formats and mounting types.
This model features a cable mount type for ease of integration in cable assemblies.
It can withstand voltages up to 250V AC for 1 minute during testing.
The RS PRO 491-015 model has 4 contacts arranged in a straight orientation.
It is suitable for various industrial and electronic applications requiring reliable DIN connections.
