Texas Instruments 24-Bit 2-Channel Audio ADC 192 ksps 28-Pin SSOP PCM1804DB

Free Delivery in India | Lowest Global Shipping Charges

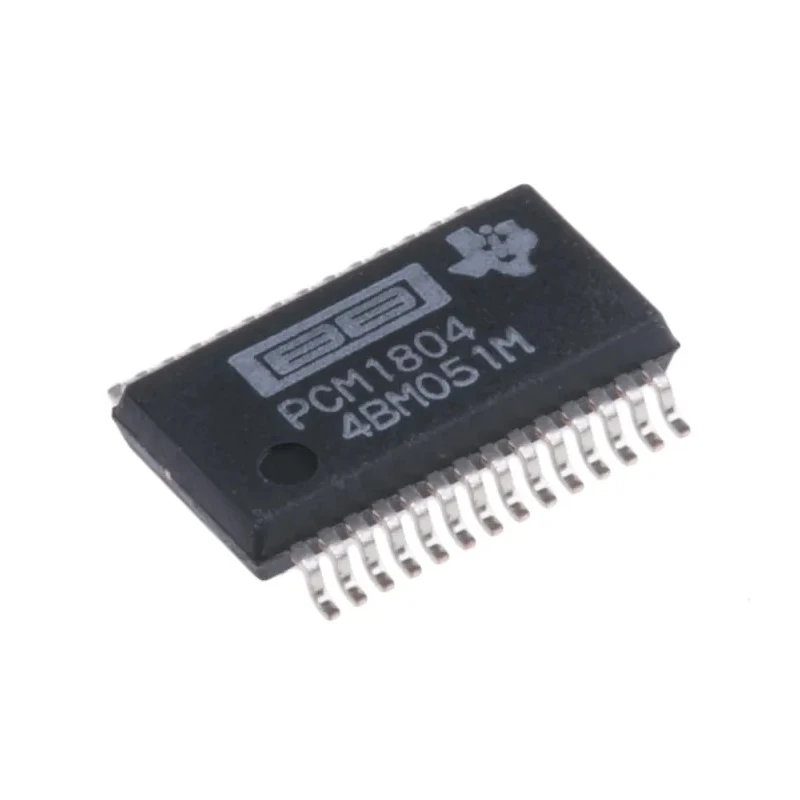

Texas Instruments 24-Bit 2-Channel Audio ADC 192 ksps 28-Pin SSOP PCM1804DB

Name: Texas Instruments 24-Bit 2-Channel Audio ADC 192 ksps 28-Pin SSOP PCM1804DB
Brand: Texas Instruments
SKU: 121361



Category Analogue to Digital Converter Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Resolution	24 bit
Brand	Texas Instruments
Height	2mm
Length	10.5mm
Model	PCM1804DB
Mount Type	Surface
Sampling rate	192ksps
Series	PCM1804
Input Type	Voltage
Maximum Operating Temperature	70°C
Package Type	SSOP
Minimum Operating Temperature	-10°C
Interface Type	Serial
Architecture	Delta Sigma
Pin Count	28
Minimum Supply Voltage	5V
Number of ADCs	2

Key Features

Features Delta Sigma architecture for precise audio signal conversion.
Operates within a temperature range of -10°C to 70°C.
Supports serial interface communication for integration.
Operates at a minimum supply voltage of 5V suitable for various applications.
Compact 10.5mm length and 2mm height package ensures space efficiency.
Lacks formal industry standards and automotive certifications.
Designed for surface mount installation in electronic circuits.
Dual ADC channels allow stereo audio input processing.

Product Description

Texas Instruments PCM1804DB is a high-performance 24-bit, dual-channel Audio Analogue-to-Digital Converter (ADC) designed for precision audio processing in professional and consumer electronics.

Featuring Delta Sigma architecture, this ADC delivers excellent linearity and low distortion, making it ideal for audio applications requiring high fidelity signal conversion.

The device supports a maximum sampling rate of 192 kilosamples per second (ksps) and operates within an ambient temperature range from -10°C to 70°C, ensuring reliability in a variety of industrial and commercial environments.

Its 28-pin SSOP surface-mount package, measuring 10.5mm in length and 2mm in height, offers a compact footprint suitable for space-constrained applications.

The PCM1804DB operates at a minimum supply voltage of 5V and interfaces through a serial interface, facilitating seamless integration with digital audio processors and microcontrollers.

This product does not carry specific standards or automotive certifications but is widely used in laboratory instruments, audio equipment, and industrial automation domains requiring precise audio signal capture and digital conversion.

Delta Sigma architecture enables high-resolution audio conversion. Dual ADC channels provide stereo input capability. Wide operating temperature range ensures robustness. Compact SSOP package supports surface mounting on PCBs.

Serial interface type allows flexible communication. Operates at 5V supply voltage, compatible with common systems. Ideal for use in industrial, laboratory, audio, and commercial electronics. Length and height optimize board space usage for compact devices.
