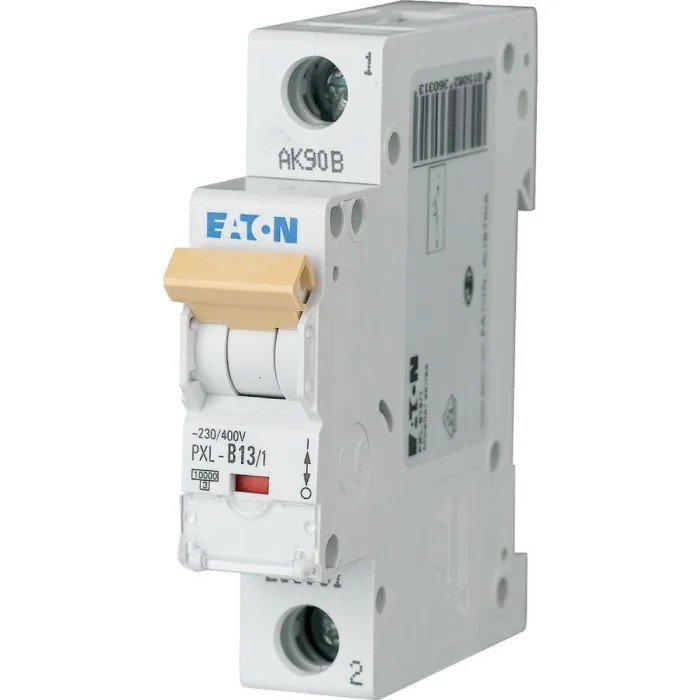

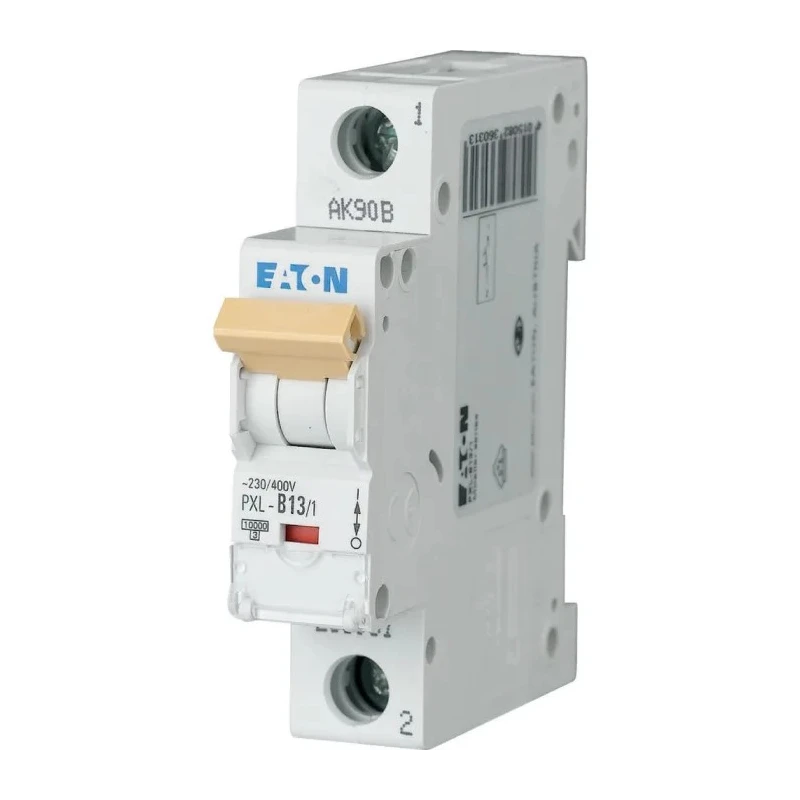

Eaton xPole PXL Miniature Circuit Breaker 1-Pole 13A Type B 400V AC 48V DC 10 kA Breaking Capacity 236031 PXL-B13/1

Eaton 236031 PXL-B13/1 Miniature Circuit Breaker (MCB) is a high-quality, industrial-grade 1-pole circuit breaker rated at 13A. It is engineered to provide reliable protection in residential and commercial electrical distribution networks.

This MCB supports both AC and DC voltages, with a rated AC voltage of 400V and DC voltage rating of 48V. Its Type B tripping curve allows immediate disconnection during overloads or short circuits, safeguarding wiring and connected equipment effectively.

The compact dimensions of 80mm width, 17.5mm height, and 60mm depth enable seamless installation on standard DIN rails, facilitating easy integration into electrical switchgear and panels.

The device has a breaking capacity of 10 kiloamperes, indicating its robustness to safely interrupt high fault currents without damage. An IP20 protection rating ensures reliable operation against the ingress of solid objects and provides safety in typical indoor electrical environments.

The tripping mechanism employs electromagnetic technology coupled with a user-friendly toggle switch for straightforward manual reset after a trip event. This MCB accepts conductor cables ranging from 1 mm² to 25 mm², including multi-stranded and solid conductor types, providing installation flexibility.

Conforming to international standards EN 60898 and IEC, this product is manufactured in Austria, ensuring quality and compliance for demanding electrical applications. Provides 13A current rating for efficient system protection.

Type B characteristics enable rapid fault clearing. Rated for 400V AC and 48V DC applications. 10 kA breaking capacity for high fault current scenarios. Compact DIN rail mountable design for easy installation. Electromagnetic tripping mechanism with toggle reset switch.

Supports conductor sizes from 1 mm² to 25 mm². Operates between -25°C to 55°C ambient temperature. Complies with EN 60898 and IEC standards. Manufactured in Austria ensuring premium quality.

This Eaton xPole PXL Miniature Circuit Breaker is ideal for electrical distribution boards in residential, commercial, and light industrial installations. Its durable construction and conformity to safety standards make it a dependable component for safeguarding electrical circuits.
