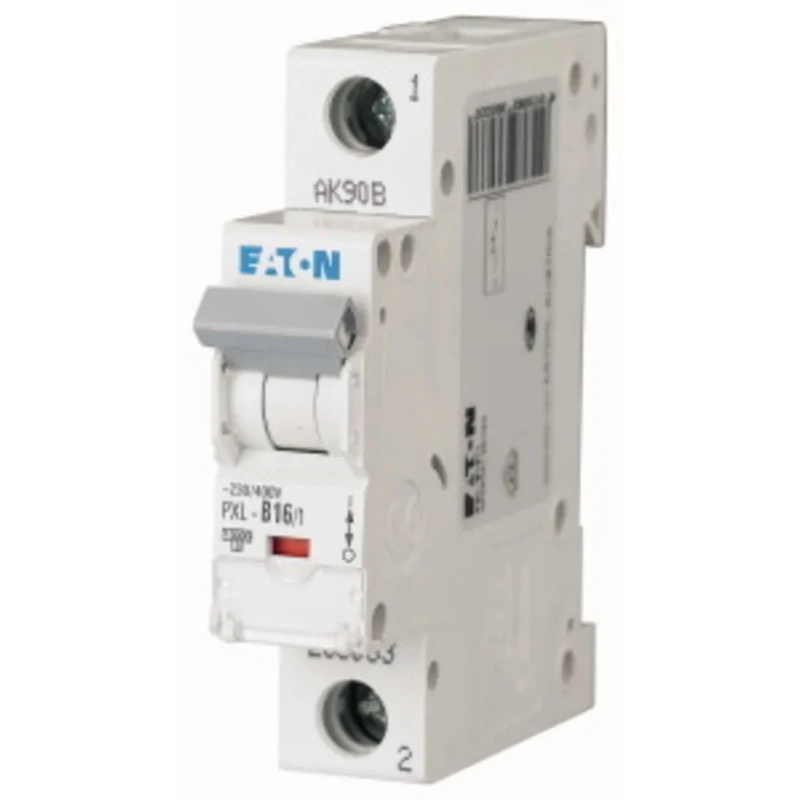

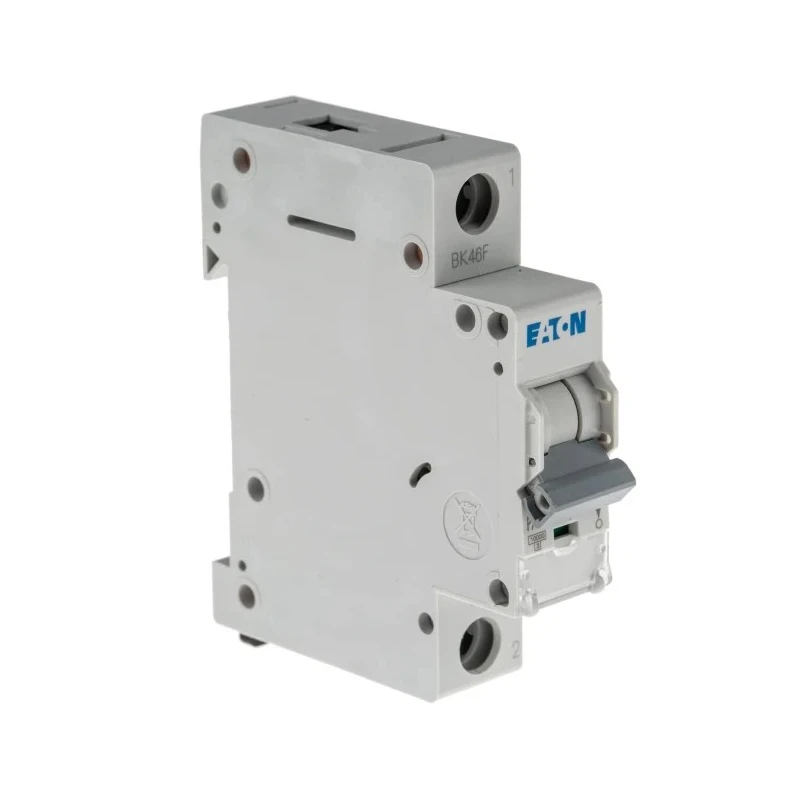

Eaton xPole PXL Miniature Circuit Breaker, 1-Pole, 16A, Type B, 400V AC, 48V DC, 10 kA Breaking Capacity 236033 PXL-B16/1
Specifications
| Country of Origin | Austria |
|---|---|
| Range | xPole |
| Brand | Eaton |
| Height | 17.5mm |
| Model | 236033 PXL-B16/1 |
| Depth | 60mm |
| IP Rating | IP20 |
| Width | 80mm |
| Mount Type | DIN Rail |
| Current Rating | 16A |
| Series | PXL |
| Breaking Capacity | 10kA |
| Number of Poles | 1 |
| Standards/Approvals | EN 60898, IEC |
| Rated AC Voltage | 400V ac |
| Rated DC Voltage | 48V dc |
| Tripping Characteristics | Type B |
| Tripping Mechanism | Electromagnetic |
| Reset Actuator Type | Toggle Switch |
| Break Time | Instantaneous |
| Type B | Instantaneous trip when the electrical current through the device is 3 to 5 times the rated current. The type B trip curve MCBs are designed for standard circuit protection, typically protection of generators, persons and very long cables |
| Type C | Instantaneous trip when the flow-through current is 5 to 10 times the rated current |
| Type D | Instantaneous trip when the flow-through current is 10 to 14 times the rated current |
| Type K | Instantaneous trip when the flow-through current is 10 to 14 times the rated current |
| Type S | Instantaneous trip when the flow-through current is 13 to 17 times the rated current |
| Type Z | Instantaneous trip when the flow-through current is 2 to 3 times the rated current |
Key Features
- Designed for 1-pole installation on DIN rails with a compact and modular form factor.
- Rated current of 16 amperes with a Type B tripping characteristic for instantaneous trips at 3 to 5 times rated current.
- Supports rated AC voltage of 400V and DC voltage up to 48V.
- Equipped with a toggle switch that is finger-proof and back-of-hand-proof for safety.
- Dual terminals for easy connection to busbars or cables ensure versatile installation.
- Includes a red-green contact position indicator to improve operational safety.
- Complies with international standards EN 60898 and IEC, assuring industrial-grade reliability.
- Compact dimensions of 17.5mm (Height) x 80mm (Width) x 60mm (Depth) fit standard distribution boards.
Product Description
Eaton 236033 PXL-B16/1 Miniature Circuit Breaker (MCB) from the xPole PXL series is a 1-pole circuit protection device designed for industrial, residential, and commercial electrical distribution systems. It is rated for 16A current at 400V AC and 48V DC, offering robust protection against short circuits and overloads.
This MCB features a Type B tripping characteristic, providing instantaneous trip action when current surges to 3 to 5 times the rated current, suitable for lighting and distribution circuits without significant surge currents. The modular design enables easy mounting on DIN rails with a quick-fit mechanism and three locking positions for reliable placement.
Safety is enhanced through a red-green contact position indicator, finger-proof toggle switch construction, and dual terminal compatibility with busbars and cables. Its breaking capacity of 10 kA mitigates damaging electrical faults, protecting installations from overload damage.
Compact build dimensions (17.5mm height, 80mm width, 60mm depth) allow straightforward integration into standard electrical distribution boards. Conformance to EN 60898 and IEC standards ensures this MCB meets international quality and safety norms.
Single pole Miniature Circuit Breaker with electromagnetic tripping mechanism. Quick and secure installation on DIN rails with flexible terminal connections. Red-green indicator for clear contact position visibility. Type B tripping curve suitable for residential and light commercial applications.
Finger-safe toggle switch reduces accidental operation. Compact and modular design fits standard switchgear enclosures. High breaking capacity of 10 kA ensures effective fault interruption.
The Eaton xPole PXL series MCB is ideal for safeguarding circuits in industrial, commercial, residential, and HVAC environments. It provides dependable and safe power distribution with easy maintenance and high operational reliability. Browse the Eaton MCB range at EnvMart for compatible electrical protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton xPole PXL Miniature Circuit Breaker has a rated current of 16 amperes.
It has a breaking capacity of 10 kA, which helps mitigate damaging electrical faults.
This circuit breaker supports a rated AC voltage of 400V and a rated DC voltage of up to 48V.
It features a Type B tripping characteristic, which provides instantaneous trip action at 3 to 5 times the rated current.
This model is designed for mounting on DIN rails, allowing for quick and secure installation.
The dimensions of the circuit breaker are 17.5mm in height, 80mm in width, and 60mm in depth.
It includes a finger-proof toggle switch and a red-green contact position indicator to enhance operational safety.
It complies with international standards EN 60898 and IEC, ensuring it meets quality and safety norms.
The mounting type for this circuit breaker is DIN Rail, suitable for standard electrical distribution boards.
It utilizes an electromagnetic tripping mechanism for effective circuit protection.
This MCB is suitable for industrial, residential, and commercial electrical distribution systems, particularly for lighting and distribution circuits.
The Eaton xPole PXL Miniature Circuit Breaker has an IP rating of IP20, indicating its level of protection against solid objects.
