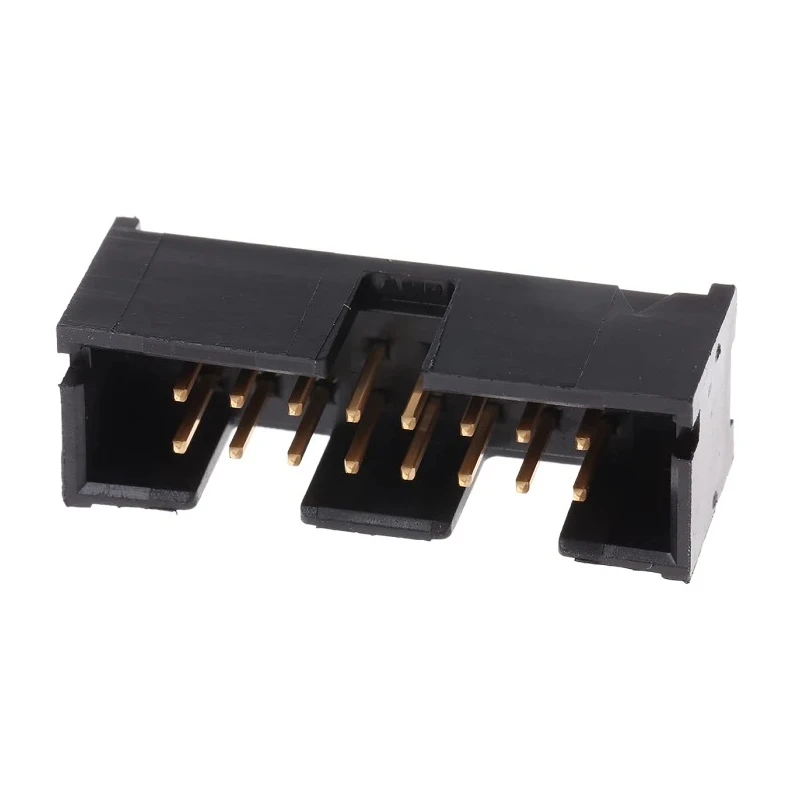

TE Connectivity AMP-LATCH Series Straight Through Hole PCB Header, 16 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 5103308-3

The TE Connectivity 5103308-3 AMP-LATCH Series Straight Through Hole PCB Header is a high-quality connector designed for wire-to-board applications requiring precision and reliability. It features 16 male contacts arranged in two rows with a 2.54 mm pitch, ensuring compatibility with standard ribbon cables and PCB layouts.

The connector housing is molded from flame retardant 94V-0 rated thermoplastic material, providing excellent resistance to heat and fire hazards. Dual polarization slots, including a central and double bar design, guarantee correct mating with matching IDC ribbon cable connectors, minimizing misalignment or damage risks during installation.

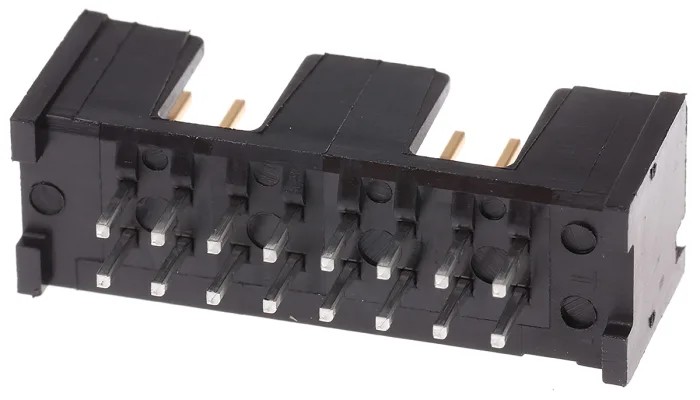

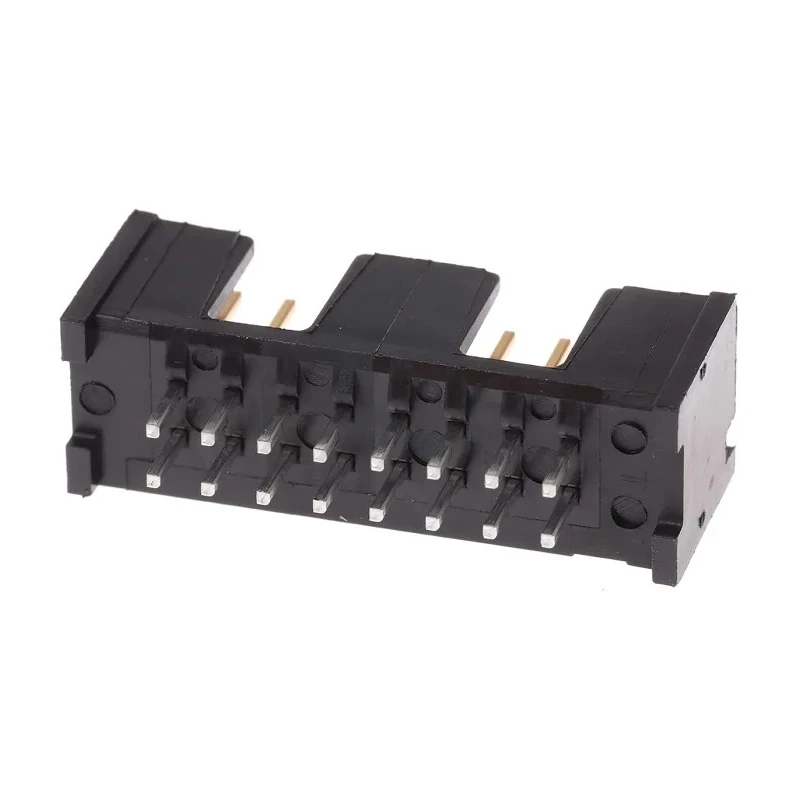

This PCB header uses gold-plated copper alloy contacts to secure strong electrical connections and prevent corrosion over long-term use. Its solder termination style with kinked solder tails ensures a robust mechanical and electrical bond to the PCB, enhancing durability in demanding industrial environments.

Operating over a wide temperature range from -55°C to 105°C, this 250V, 1A rated PCB header is suitable for diverse industrial applications including PCs, business equipment, medical devices, storage and networking equipment, industrial controls, appliances, and electrical testing apparatus.

Additionally, the inclusion of board standoffs elevates the connector above the PCB, allowing efficient removal of solder flux residues during soldering and contributing to improved assembly quality. The shrouded construction also provides superior protection to the contacts, extending the lifespan of the connector.

Low profile design with center and dual polarization slots for accurate connector alignment. Constructed from flame retardant 94V-0 thermoplastic housing material. Gold plated copper alloy contacts for superior conductivity and corrosion resistance.

Kinked solder tails offer secure solder termination on PCB. Wide operating temperature range from -55°C to 105°C supports varied environments. Rated voltage of 250V and current of 1A suitable for general PCB connector needs.

Shrouded, straight orientation provides contact protection and mating precision. Board standoffs enable effective solder flux removal during assembly processes. Ideal for use in industrial, medical, networking, business equipment, and electrical testing sectors.
