SMC Pneumatic Guided Cylinder 20mm Bore, CXS Series, 100 mm Stroke CXSM20-100

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Guided Cylinder 20mm Bore, CXS Series, 100 mm Stroke CXSM20-100



Category Pneumatic Guided Cylinder Brand SMC Condition New

Specifications

Country of Origin	China
Brand	SMC
Maximum Operating Pressure	0.7 Mpa
Height	25mm
Length	194mm
Model	CXSM20-100
Gross Weight	740g
Width	64mm
Series	CXS
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-10°C
Stroke Length	100mm
Bore Diameter	20mm
Rod Type	Double
Cushioning Type	Rubber
Guide Type	Ball Bearing, Slide Bearing
RS PRO Pneumatic Guided Cylinder - 100 mmRS Stock No.	180-322Brand: RS PRO

Key Features

Features a dual-rod design with ball bearing and slide bearing guides for enhanced stability.
Operates at a maximum pressure of 0.7 Mpa with rubber cushioning for smooth operation.
Suitable for a temperature range from -10°C to 60°C for varied industrial environments.
Constructed with a width of 64mm, height of 25mm, and length of 194mm for compact installation.
Equipped with integral stroke adjustment and standard magnetic sensing capabilities.
High non-rotational accuracy ideal for pick-and-place pneumatic tasks.
Designed for use with non-lubricated, filtered compressed air ensuring low maintenance.

Product Description

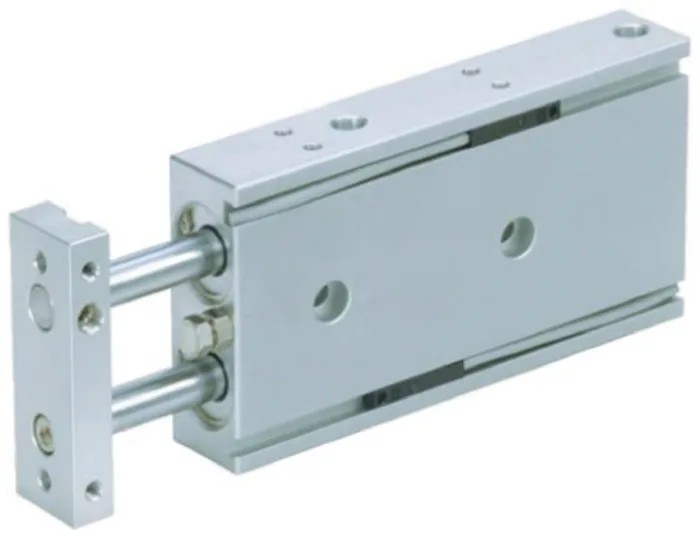

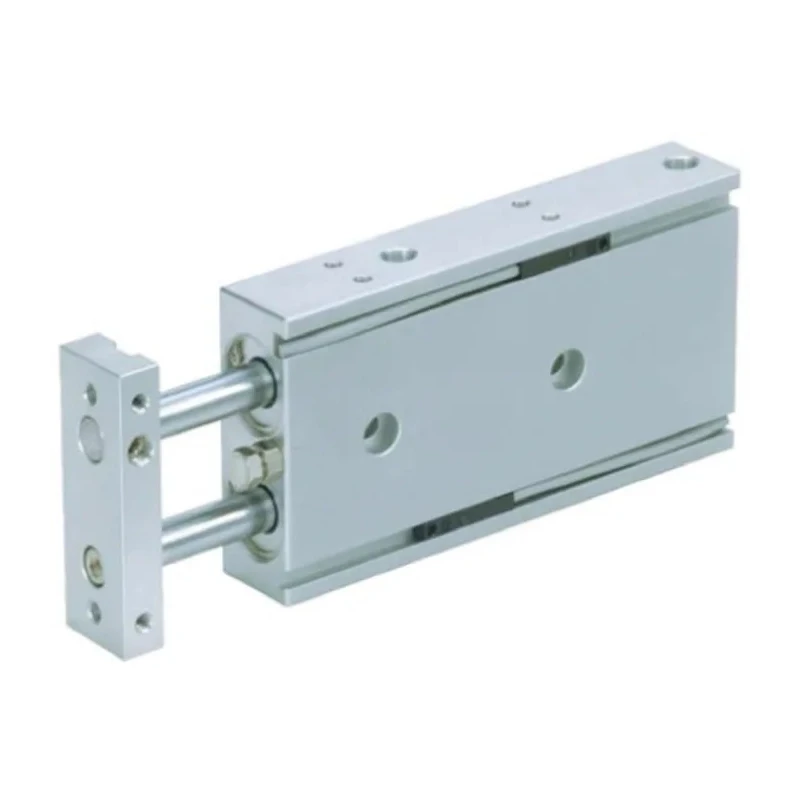

SMC CXSM20-100 Pneumatic Guided Cylinder from the CXS Series features a 20mm bore and a 100 mm stroke length, offering reliable and precise pneumatic actuation for industrial automation. This dual-rod cylinder utilizes ball bearing and slide bearing guides to deliver excellent stability and high non-rotational accuracy, making it ideal for pick-and-place and similar applications.

The cylinder is designed with rubber cushioning to provide smooth deceleration and reduce impact noise, operating effectively within temperatures from -10°C to 60°C. The unit supports a maximum operating pressure of 0.7 Mpa and operates with non-lubricated, filtered compressed air, reducing maintenance requirements.

Compact dimensions of 64mm width, 25mm height, and 194mm total length allow easy integration into automation systems. It comes with an integral stroke adjustment feature that can be set to a standard stroke less 5mm, enhancing operational flexibility. The cylinder also includes a recess for auto switches and standard magnetic sensing, facilitating position detection.

This pneumatic guided cylinder is suited for industrial uses including manufacturing automation, material handling, pick-and-place robotic assembly, and other fluid power applications requiring precise linear motion control. Its high accuracy and robust design make it essential for HVAC, packaging, and laboratory automation sectors as well.

Dual-rod design with ball and slide bearing guides ensures high stability. Rubber cushioning provides smooth operation and impact absorption. Wide operating temperature range from -10°C to 60°C suits numerous industrial environments.

Compact dimensions enable easy system integration and space efficiency. Integral stroke adjustment allows fine-tuning of movement range. Magnetic sensing recess supports position detection automation. Suitable for pick-and-place applications with high accuracy requirements.

For additional pneumatic cylinder options and related accessories, explore the Pneumatic Guided Cylinder category at EnvMart to find compatible and high-quality industrial automation components.
