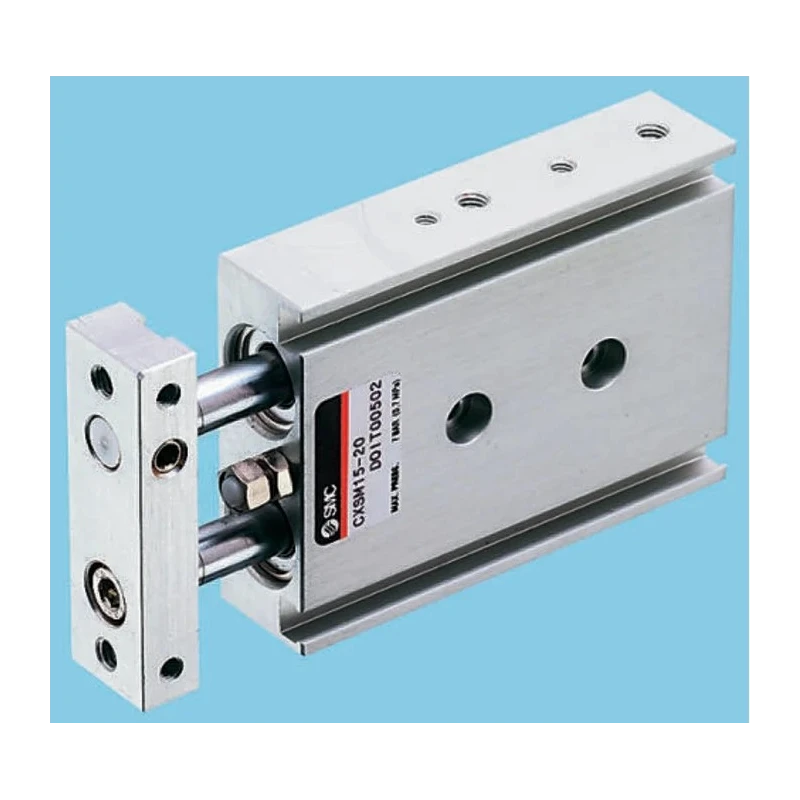

SMC Pneumatic Guided Cylinder 25mm Bore, 50mm Stroke, Rubber Cushioning, Double Rod Type CXSM25-50
Specifications
| Country of Origin | China |
|---|---|
| Brand | SMC |
| Maximum Operating Pressure | 0.7 Mpa |
| Height | 80mm |
| Length | 146mm |
| Model | CXSM25-50 |
| Gross Weight | 830g |
| Width | 30mm |
| Series | CXSM |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -10°C |
| Stroke Length | 50mm |
| Bore Diameter | 25mm |
| Rod Type | Double |
| Cushioning Type | Rubber |
| Piston Rod Thread Standard | Rc |
| Piston Rod Thread Size | 1/8 in |
Key Features
- Designed for accurate positioning in automation and robotics applications.
- Rubber cushioning reduces impact noise and vibration for enhanced durability.
- Operates efficiently at a maximum pressure of 0.7 MPa for reliable force output.
- Double rod type with a piston rod thread size of 1/8 inch and Rc thread standard.
- Compact dimensions of 146mm length, 80mm height, and 30mm width ensure easy installation.
- Suitable for temperature ranges from -10 °C to 60 °C for diverse industrial environments.
- Lightweight design with a gross weight of 830 grams.
- Ideal for automated assembly, packaging, conveyor systems, and precise test equipment.
Product Description
SMC CXSM25-50 Pneumatic Guided Cylinder features a 25mm bore diameter and 50mm stroke length for precise linear motion control in demanding industrial applications. It incorporates rubber cushioning that minimizes vibration and noise, contributing to a longer service life and smoother operation.
This double rod cylinder operates at a maximum pressure of 0.7 MPa and supports piston rod threading of 1/8 inch Rc standard, ensuring compatibility with various pneumatic systems. Its compact form factor, measuring 146mm in length, 80mm in height, and 30mm in width, allows for easy integration into automated machinery and robotics.
The cylinder performs reliably within an operating temperature range from -10 °C to +60 °C, making it suitable for both temperature-sensitive operations and harsh environments. With a gross weight of approximately 830 grams, it provides a balanced solution combining strength and lightweight design.
Common applications include automated assembly lines, robotic systems, material handling, packaging, conveyor mechanisms, and precision test equipment. The SMC CXSM Series cylinders are built to meet high-quality standards, ensuring dependable pneumatic actuation and precise positioning in industrial, laboratory, manufacturing, and commercial contexts.
Provides precise linear motion for accurate positioning in automation. Rubber cushioning reduces impact and noise during operation. Compact design allows for flexible installation in tight spaces. Robust construction supports a maximum operating pressure of 0.7 MPa.
Wide operating temperature range from -10 °C to 60 °C ensures versatile usability. Double rod type enhances stability and load handling capacity. Compatible with standard pneumatic systems using Rc threaded piston rods. Lightweight and durable at 830 grams for ease of handling and integration.
Explore the SMC range of Pneumatic Guided Cylinders for reliable automation solutions at EnvMart, your trusted industrial equipment source.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 0.7 MPa.
This unit has dimensions of 146mm in length, 80mm in height, and 30mm in width.
The stroke length of this pneumatic guided cylinder is 50mm.
The bore diameter of this model is 25mm.
It features rubber cushioning, which helps reduce impact noise and vibration during operation.
The gross weight of this unit is approximately 830 grams.
This model operates efficiently within a temperature range of -10 °C to +60 °C.
It is a double rod type, enhancing stability and load handling capacity.
The piston rod thread standard for this unit is Rc.
Common applications include automated assembly lines, robotic systems, material handling, packaging, conveyor mechanisms, and precision test equipment.
The piston rod thread size is 1/8 inch.
Rubber cushioning minimizes vibration and noise, contributing to smoother operation and a longer service life.
