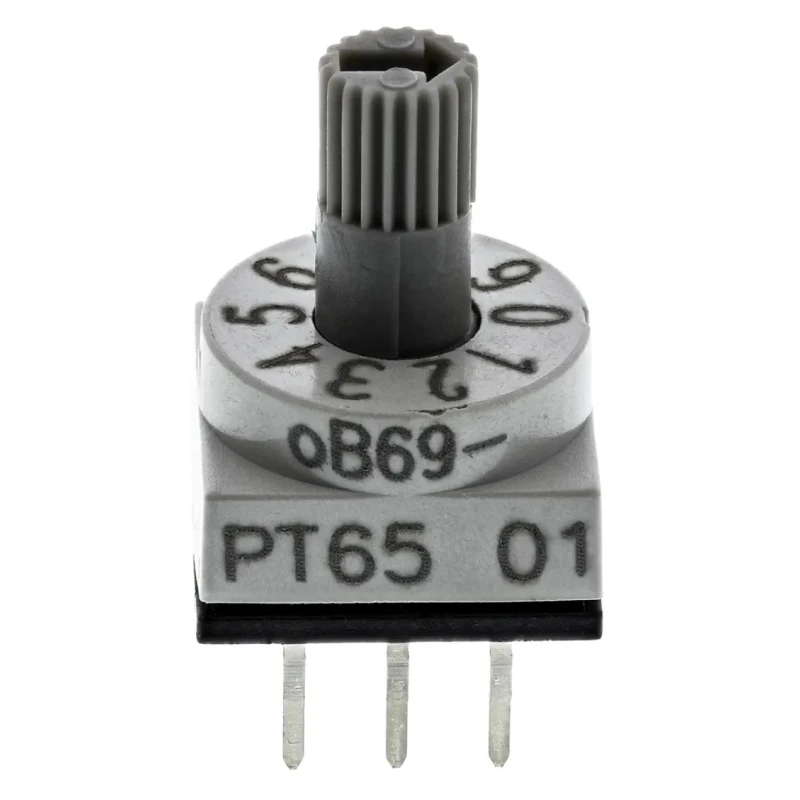

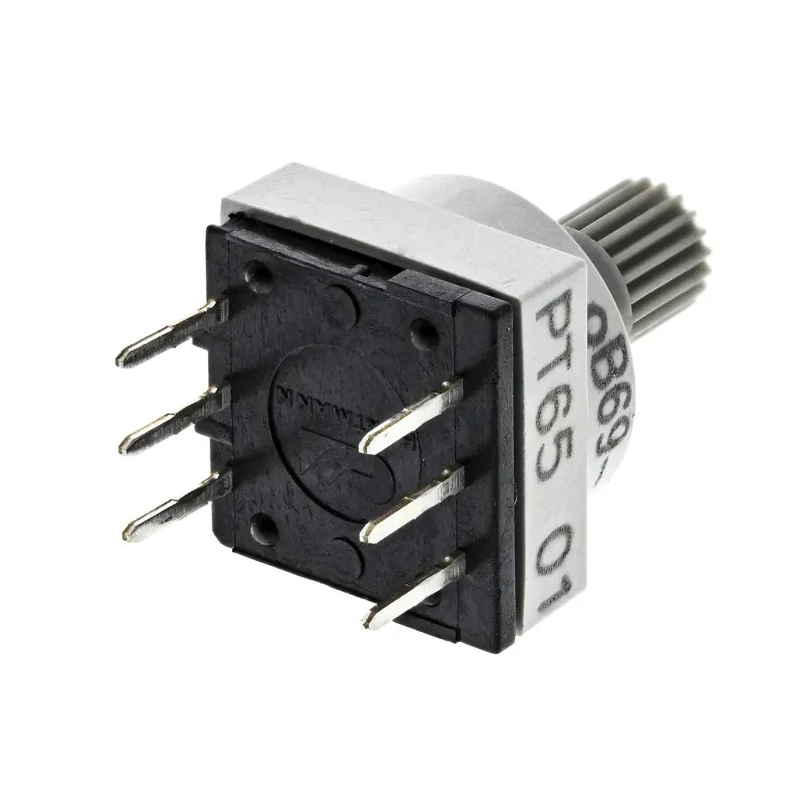

Hartmann Spindle Rotary Coded DIP Switch Through Hole Solder PT65301
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Hartmann |
| Model | PT65301 |
| Mount Type | Through Hole |
| Series | PT 65 |
| Actuator Type | Spindle |
| Contact Rating | 150mA @ 24Vdc |
| Terminal type | Solder |
| Soldering Temperature | 340°C max. for 2s max. (40 watt iron max.) or 260°C for 10s max |
| APEM 10 Way Through Hole DIP Switch, Rotary Shaft ActuatorBrand | APEM |
| Omron Rotary Shaft Rotary Coded DIP Switch Through HoleBrand | Omron |
| KNITTER-SWITCH 10 Way Through Hole DIP Switch, Rotary Shaft Actuator, IP67Brand | KNITTER-SWITCH |
Key Features
- The switch features a spindle actuator type for accurate rotary coding.
- It is designed for through hole mounting ensuring stable soldered connections.
- Gold-plated contacts offer excellent conductivity and corrosion resistance.
- Contact rating supports 150mA at 24V DC suitable for low power switching.
- Soldering temperature tolerance allows up to 340°C for 2 seconds ensuring durability during PCB assembly.
- Flux sealed and process washable for enhanced reliability in manufacturing environments.
- Positive detent mechanism provides tactile feedback and operational precision.
- Manufactured in Germany adhering to high industrial quality standards.
Product Description
Hartmann PT65301 Rotary Coded DIP Switch is a high-quality electrical component featuring a spindle actuator designed for through hole solder mounting. Engineered for precision control and reliability, this rotary encoded switch incorporates gold plated contacts and a positive detent mechanism to ensure consistent and stable switching operations.
This device is flux sealed and process washable, making it suitable for automated PCB assembly lines in industrial and manufacturing sectors. With a contact rating of 150mA at 24V DC and a switch life exceeding 104 operations, it is ideal for low current switching applications requiring durability and precise position encoding.
The soldering temperature resistance up to 340°C for brief durations enables effective assembly without compromising switch integrity. Its spindle actuator type and through hole mount form factor facilitate secure mounting and user-friendly rotary control interface.
Applications include industrial automation controls, instrumentation panels, electronic control systems, and HVAC equipment, where reliable rotary code selection is necessary for configuration and parameter setting. The compact design and gold contacts reduce contact resistance, enhancing signal integrity and lifespan.
The switch features a spindle actuator type for accurate rotary coding. It is designed for through hole mounting ensuring stable soldered connections. Gold-plated contacts offer excellent conductivity and corrosion resistance.
Contact rating supports 150mA at 24V DC suitable for low power switching. Soldering temperature tolerance allows up to 340°C for 2 seconds ensuring durability during PCB assembly. Flux sealed and process washable for enhanced reliability in manufacturing environments.
Positive detent mechanism provides tactile feedback and operational precision. Manufactured in Germany adhering to high industrial quality standards.
Hartmann products represent high reliability and precision for electronics and electrical applications. Explore a wide range of rotary coded switches and components on EnvMart for your automation and control system requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact rating of this model is 150mA at 24V DC, which is suitable for low power switching applications.
This unit is designed for through hole mounting, ensuring stable soldered connections.
The soldering temperature tolerance allows up to 340°C for a maximum of 2 seconds, or 260°C for a maximum of 10 seconds.
It features a spindle actuator type, which allows for accurate rotary coding.
Yes, the switch is flux sealed and process washable, enhancing its reliability in manufacturing environments.
The switch life exceeds 10^4 operations, making it suitable for applications requiring durability.
This model is manufactured in Germany, adhering to high industrial quality standards.
It is suitable for applications such as industrial automation controls, instrumentation panels, electronic control systems, and HVAC equipment.
The switch uses solder terminals for secure connections.
The switch features gold-plated contacts for excellent conductivity and a positive detent mechanism for tactile feedback and operational precision.
It belongs to the PT 65 series of rotary coded DIP switches.
The gold-plated contacts offer excellent conductivity and corrosion resistance, enhancing signal integrity and lifespan.
