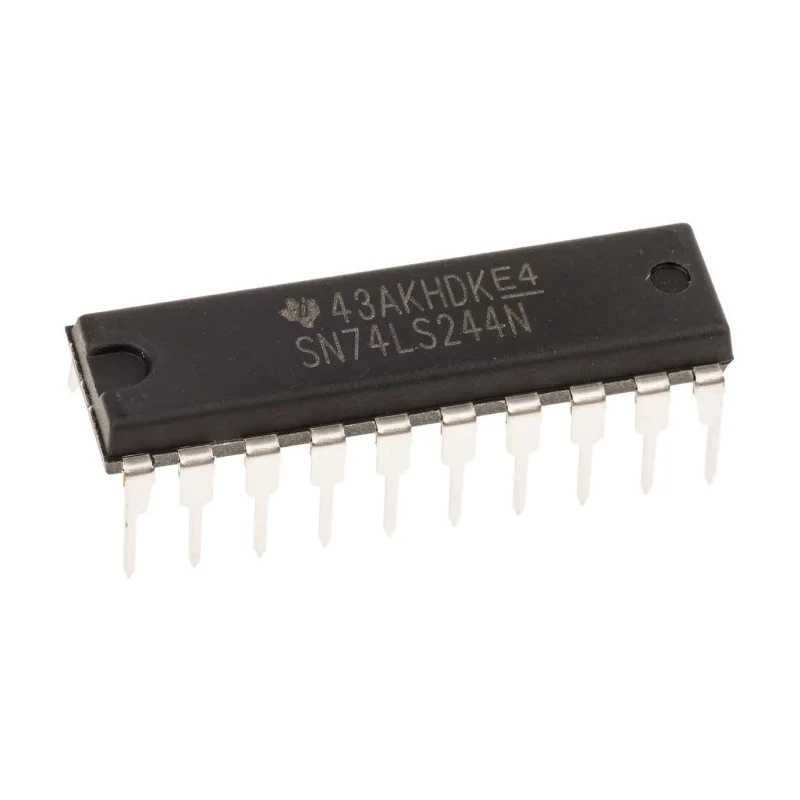

Texas Instruments 8-Channel Buffer & Line Driver, 3 State, Non-Inverting, 20-Pin PDIP SN74LS244N

Texas Instruments SN74LS244N is an 8-channel buffer and line driver IC with 3-state, non-inverting outputs, housed in a 20-pin PDIP package. It belongs to the 74LS family, combining bipolar junction transistor technology with Schottky diode clamps to provide high-speed operation with reduced power consumption.

This IC operates over a supply voltage range of 4.75V to 5.25V and supports single-ended input and 3-state output, making it suitable for digital buffering applications where multiple lines must be driven or isolated.

The SN74LS244N features a through-hole mounting style, facilitating easy installation on standard PCBs. It is rated for operating temperatures from 0°C to 70°C, suitable for typical industrial and commercial environments.

Its maximum propagation delay time of 15ns and output current capabilities (-15mA high, 24mA low) ensure efficient signal transmission with minimal timing distortion. The package dimensions of approximately 27mm x 6.6mm x 5mm enable compact design layouts.

Typical industrial applications include digital signal buffering, line driving, and interfacing between logic families or components. It finds use in electronics manufacturing, automation systems, and embedded circuitry requiring reliable logic buffering.

Though it does not carry automotive standards approval, the SN74LS244N is a fundamental component in interface IC design offering proven performance. Belongs to the 74LS logic family, ensuring compatibility with standard LS logic.

Supports 8 channels with single-ended input and 3-state non-inverting outputs. Features through-hole mount type in a 20-pin Plastic Dual In-line Package. Electrical operating range from 0°C to 70°C with robust supply current of 54mA.

Maximum propagation delay time is 15 nanoseconds at load capacitance. Designed without automotive standard certification, ideal for general electronic component applications. Compact dimensions: 26.92mm length, 6.6mm width, 5.08mm height for easy PCB integration.

Offers maximum output currents of -15mA (high level) and 24mA (low level) for reliable signal buffering. Explore the Texas Instruments product range and other semiconductor components for your electronic and industrial applications at EnvMart.
