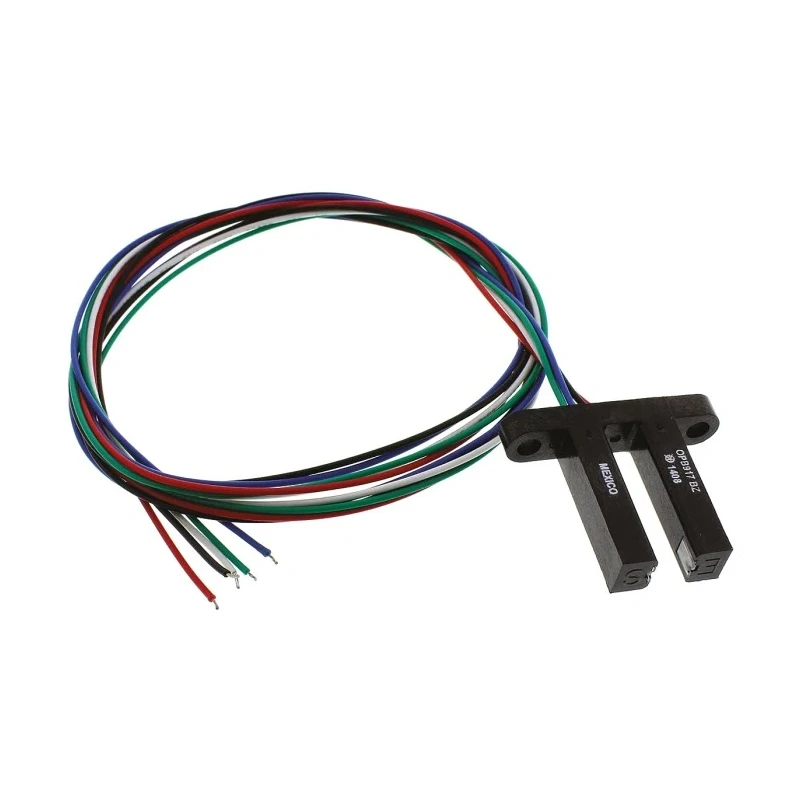

Optek Through Hole Slotted Optical Switch, Buffer Open Collector with 10K Pull Up Resistor OPB917BZ

Optek OPB917BZ is a through hole slotted optical switch designed with a buffer and open collector output that includes a 10K pull up resistor, ensuring stable and noise-resistant signal transmission. This device has a slot width of 5.08 mm, suitable for various optical switching applications demanding precision and reliability.

The slotted optical switch features an opaque plastic housing that minimizes interference from visible and near-infrared light, enhancing sensing accuracy. Its housing also includes parallel faces inside the slot covered with IR transmissive or opaque plastic, offering dust protection and resistance against ambient light. The unit is constructed to operate effectively within a temperature range from -40°C to 85°C, making it suitable for rugged industrial environments.

With a compact form factor measuring 30.73 mm in length, 6.35 mm in width, and 25.65 mm in height, the OPB917BZ supports through hole mounting and wire package types with 5 pins for secure PCB installation. Typical rise and fall times are both 50 nanoseconds, promoting quick response necessary in high-speed applications.

Optek’s slotted optical switches serve in applications such as mechanical switch replacement, speed indication, mechanical limit detection, and edge sensing within industrial, manufacturing, HVAC, and laboratory environments. Their design flexibility allows integration into various control systems requiring precise optical detection.

This product is RoHS compliant, affirming its adherence to environmental protocols. Manufactured in Mexico to high-quality standards, ensuring reliability and durability. Set yourself up for success by choosing Optek Slotted Optical Switches for your precise optical sensing requirements. Discover more electronics and sensor solutions at EnvMart.
