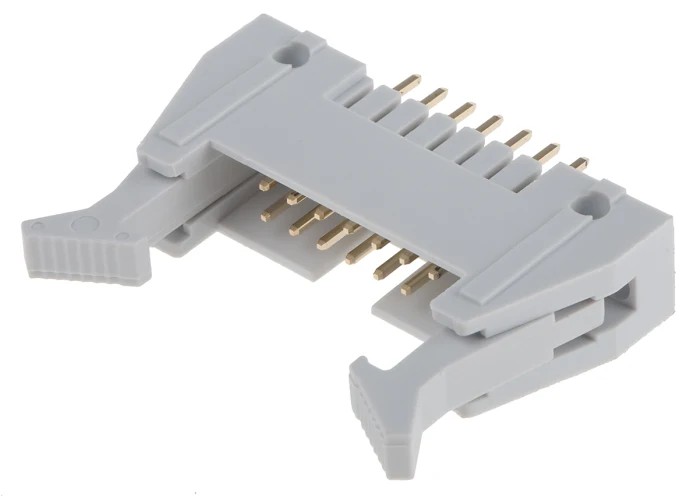

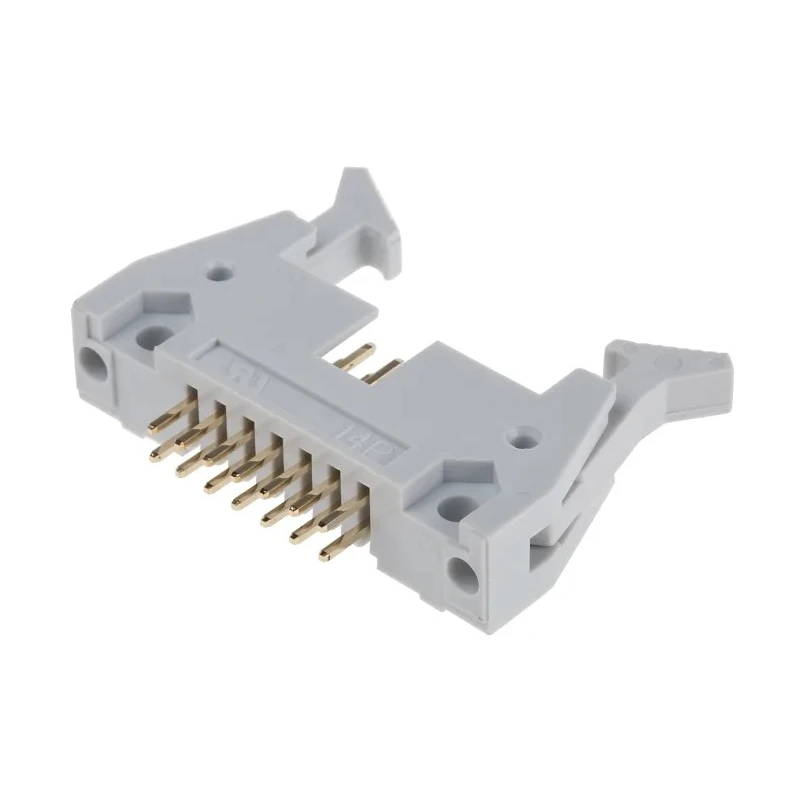

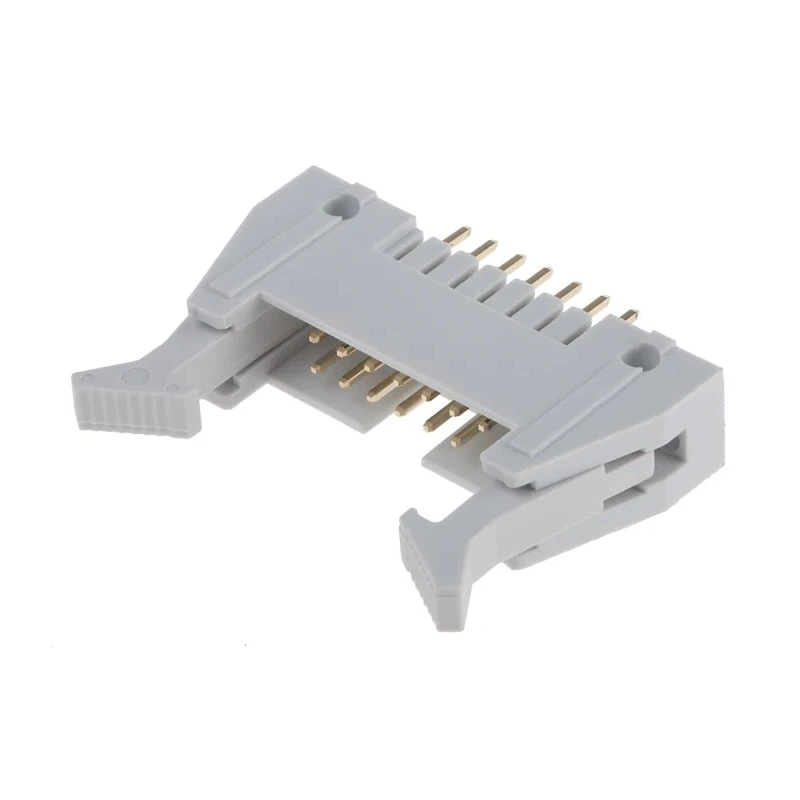

RS PRO Straight Through Hole PCB Header 14 Contacts 2.54 mm Pitch Shrouded 471-036
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Orientation | Straight |
| Current | 1A |
| Model | 471-036 |
| Mount Type | Through Hole |
| Housing Material | Polyethylene Terephthalate |
| Contact Material | Brass |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -45°C |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 14 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
Key Features
- The housing material is durable Polyethylene Terephthalate ensuring reliable insulation.
- Each contact is made of brass and plated with gold for optimal conductivity.
- Designed for through-hole mount type allowing robust PCB assembly.
- Operates safely within a temperature range of -45°C to 105°C.
- Termination style is solder type, suitable for stable connection.
- Supports a maximum current of 1 Ampere, suitable for low power applications.
- Fully shrouded design enhances protection and alignment during mating.
- Ideal for prototype development, medical equipment, and industrial automation.
Product Description
RS PRO 471-036 Straight Through Hole PCB Header is a high-quality connector designed for reliable electronic assembly applications. It features 14 male contacts with a 2.54 mm pitch and a straight orientation which is ideal for through-hole mounting on printed circuit boards. The housing is made from durable Polyethylene Terephthalate (PET) which offers good electrical insulation and mechanical stability. Contact pins are constructed from brass and plated with gold flash plating, providing excellent conductivity and corrosion resistance.
This PCB header operates effectively within a wide temperature range of -45°C to 105°C, ensuring performance across various industrial and laboratory environments. The termination type is solder, allowing for secure and stable solder joints. The shrouded design with long ejection latches on either side offers enhanced protection, prevents contact damage, and ensures precise connector alignment during mating.
Common applications include prototype development, medical and consumer electronics, data storage devices, and industrial automation systems. The RS PRO brand is trusted worldwide for offering rigorously tested components that meet demanding industry standards.
The housing material is Polyethylene Terephthalate (PET) providing mechanical strength and insulation. Gold-plated brass contacts ensure excellent electrical connectivity and corrosion resistance. Shrouded design enhances durability and connector protection.
Rated for 1 Ampere maximum current suitable for precision low-power circuits. Compatible with IDC ribbon cable connectors and BS9525-F0023 compliant connectors. Solder termination type allows for secure and lasting PCB attachment.
Operates over a temperature range from -45°C to 105°C for industrial and commercial reliability. Manufactured in Taiwan, Province Of China, assuring quality manufacturing standards.
This PCB header is a versatile electronic component ideal for electrical engineers working in industrial, laboratory, manufacturing, and commercial electronics sectors. Browse more PCB Headers and connectors in our Electronics Components category at EnvMart for trusted quality and performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch size of this PCB header is 2.54 mm, which is standard for many electronic connections.
This model is rated for a maximum current of 1 Ampere, making it suitable for low power applications.
It operates within a temperature range of -45°C to 105°C, ensuring reliability in various environments.
The contacts are made of brass and are plated with gold for optimal conductivity and corrosion resistance.
The termination type is solder, allowing for secure and stable connections on printed circuit boards.
This PCB header has a straight orientation, which is ideal for through-hole mounting.
This unit features 14 male contacts, suitable for various electronic applications.
It supports through-hole mounting, which provides robust assembly on printed circuit boards.
Yes, it is compatible with IDC ribbon cable connectors and connectors compliant with BS9525-F0023.
This PCB header is manufactured in Taiwan, ensuring adherence to quality manufacturing standards.
The housing material is Polyethylene Terephthalate (PET), which provides good electrical insulation and mechanical stability.
It is suitable for applications in prototype development, medical equipment, and industrial automation.
