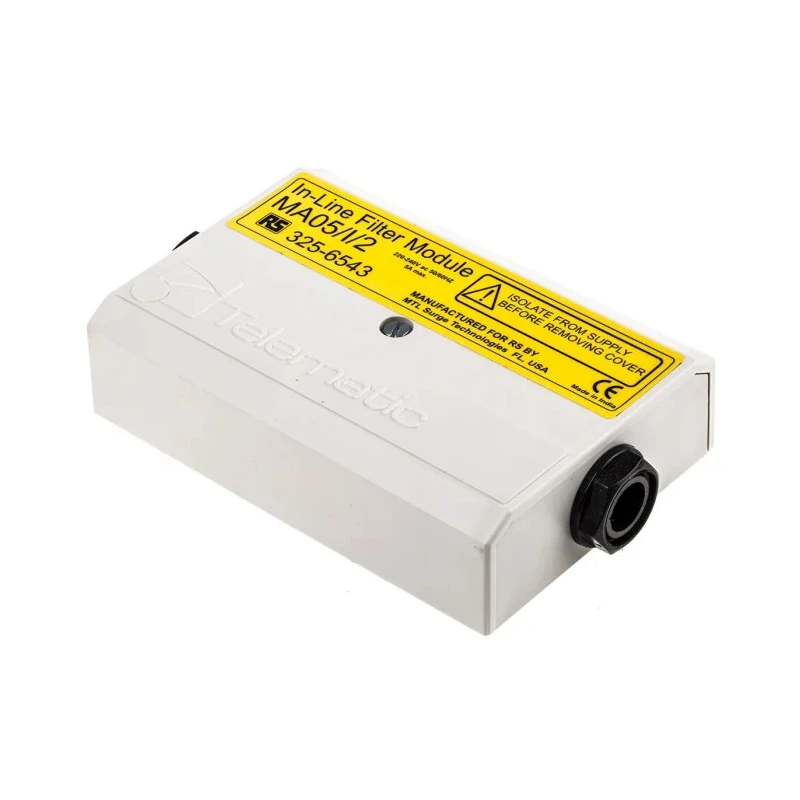

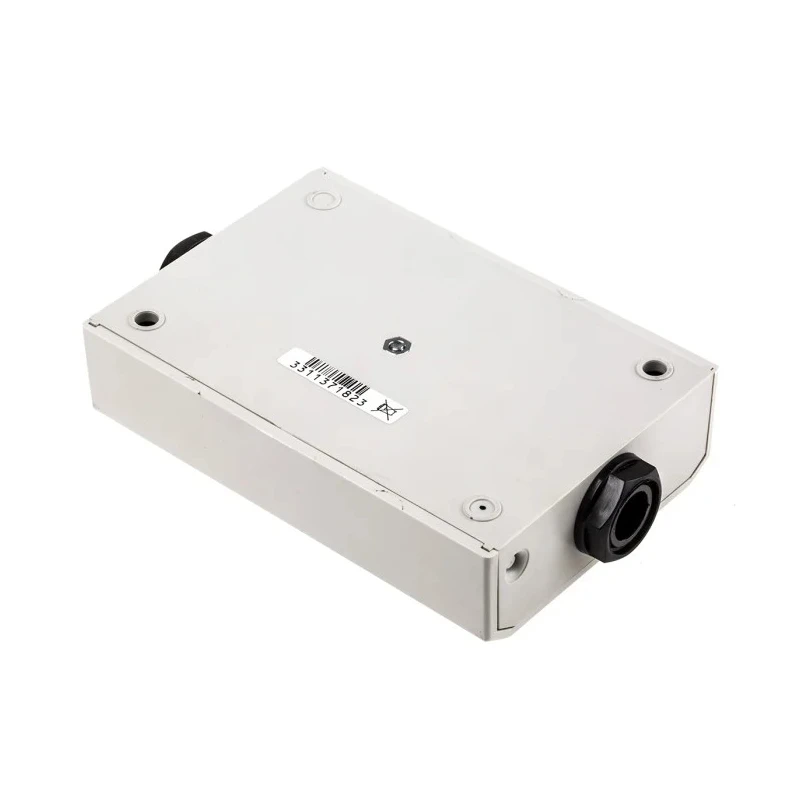

RS PRO Wall Mount RFI Filter 5 A 240 V AC 50/60 Hz, Screw Termination, 1 Phase MA05/10 325-6543
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | RS PRO |
| Height | 28mm |
| Length | 123mm |
| Model | 325-6543 |
| Depth | 75mm |
| Mount Type | Wall Mount |
| Operating Frequency | 50, 60Hz |
| Series | MA05/10 |
| Maximum Operating Temperature | 85°C |
| Number Of Stages | 3 |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 5A |
| Number of Phases | 1 |
| Leakage Current | 300μA |
| Maximum Voltage | 240V ac |
| Termination Style | Screw |
Key Features
- This RFI filter supports a maximum current of 5 A and a maximum voltage of 240 V AC.
- Operates efficiently across 50 Hz and 60 Hz frequencies for versatile applications.
- Features screw termination style and a wall mount design for secure installation.
- Includes three filtering stages to ensure high attenuation of unwanted signals.
- Can operate in a temperature range from -25°C to +85°C for reliable performance.
- Leakage current is low at 300 μA, minimizing energy loss and interference.
- Compact dimensions of 123 mm length, 75 mm depth, and 28 mm height allow space-efficient mounting.
- Complies with IEC 1000-4-5 and IEC 1000-4-6 standards for surge immunity and EMI protection.
Product Description
RS PRO MA05/10 Wall Mount RFI Filter rated at 5 A and 240 V AC with an operating frequency of 50/60 Hz is designed to protect electronic devices from disruptive radio frequency interference. This filter features a screw termination style and is intended for wall mounting, making it suitable for fixed installations near power supplies.
With three stages of filtering, the device efficiently suppresses unwanted electromagnetic signals that can degrade equipment performance or cause damage. The low leakage current of 300 μA minimizes power loss while ensuring effective filtering. It operates safely within a temperature range between -25°C and +85°C, providing durability in diverse industrial and commercial environments.
The compact form factor with dimensions 123 mm (L) x 75 mm (D) x 28 mm (H) allows integration into control panels and enclosures without requiring excessive space. Tested according to IEC 1000-4-5 and IEC 1000-4-6 standards, this filter guarantees robust surge and EMI protection.
This product is especially suitable for use in protecting medical imaging rooms such as MRI environments, industrial equipment, and sensitive computing devices from electrical noise disturbances. It ensures compliance with British Standard BS 6651:1992 Appendix C for lightning protection withstanding surges up to 6000 V and currents of 3000 A.
This RFI filter supports a maximum current of 5 A and maximum voltage of 240 V AC. Operates effectively at 50 and 60 Hz frequencies with a three-stage filter design. Low leakage current of 300 μA reduces power spill and interference.
Wall mountable with screw termination for secure electrical connections. Compact size and wide operating temperature range enhances installation flexibility. Complies with IEC surge immunity and EMI standards for reliable performance.
Ideal for industrial, medical, and computer equipment protection.
RS PRO products are known for rigorous quality assurance and durability, trusted by engineers worldwide. Explore the wide range of RS PRO components on EnvMart to find the perfect match for your industrial and electronic needs.
Explore more products in our Power Line Filters category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This RFI filter supports a maximum current of 5 A.
It operates at a maximum voltage of 240 V AC.
This unit operates efficiently across 50 Hz and 60 Hz frequencies.
It features a screw termination style for secure electrical connections.
It can operate in a temperature range from -25°C to +85°C.
The compact dimensions are 123 mm in length, 75 mm in depth, and 28 mm in height.
It includes three stages of filtering to ensure high attenuation of unwanted signals.
The leakage current is low at 300 μA, minimizing energy loss and interference.
It complies with IEC 1000-4-5 and IEC 1000-4-6 standards for surge immunity and EMI protection.
This model is designed for wall mounting, making it suitable for fixed installations.
It is especially suitable for protecting medical imaging rooms, industrial equipment, and sensitive computing devices from electrical noise disturbances.
The country of origin for this product is the United Kingdom.
