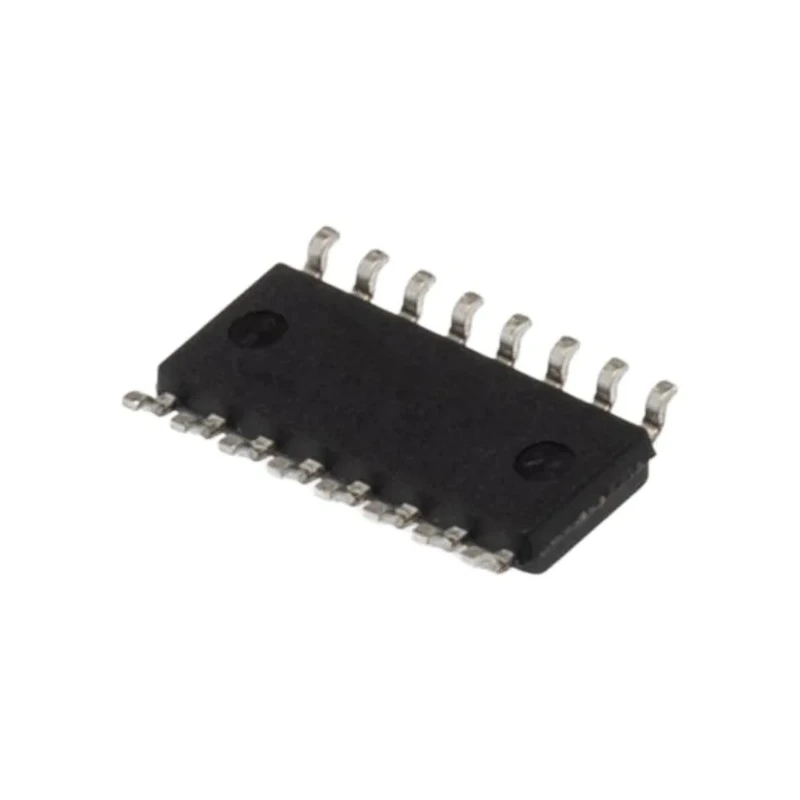

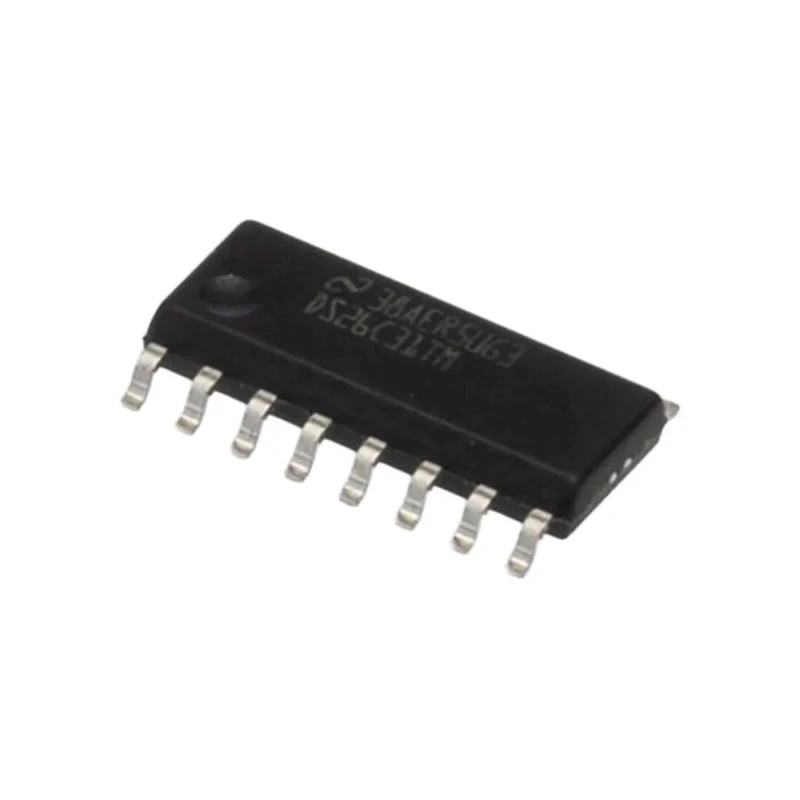

Texas Instruments 4-Channel Line Transmitter, 3 State Output, Surface Mount 16-Pin SOIC Package DS26C31TM/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.75mm |
| Length | 10mm |
| Model | DS26C31TM/NOPB |
| Width | 6.2mm |
| Mount Type | Surface |
| Output type | 3 State |
| Series | DS26C31T |
| Input Type | Differential |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| IC Type | Line Driver |
| Number Of Channels | 4 |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | CMOS |
| Logic Function | Line Driver |
| Minimum Supply Voltage | 4.5V |
| Maximum Propagation Delay Time @ CL | 8ns |
| Supply Current | 500μA |
Key Features
- Employs CMOS logic family for efficient power consumption.
- Features four independent line driver channels.
- Supports differential input and 3-state output functionality.
- Operates with supply voltages from 4.5V to 5.5V.
- Maximum propagation delay time of 8ns at capacitive load.
- Designed for surface mount applications using a 16-pin SOIC package.
- Operates reliably within a temperature range from -40°C to 85°C.
- Supply current is approximately 500μA for low power operation.
Product Description
The Texas Instruments DS26C31TM/NOPB is a 4-channel line transmitter designed for high-performance RS-422 line driving. Housed in a 16-pin SOIC surface mount package, this device utilizes CMOS logic technology to ensure efficient power use with a supply current of just 500μA. It supports differential inputs and features 3-state outputs, allowing for versatile communication line control.
Operating from a minimum supply voltage of 4.5V to a maximum of 5.5V, the DS26C31TM/NOPB offers a maximum propagation delay time of 8 nanoseconds at capacitive loads, facilitating fast signal transmission. Its operating temperature range of -40°C to 85°C enables reliable operation in demanding industrial and automotive electronics environments.
The device dimensions include a length of 10mm, width of 6.2mm, and height of 1.75mm, making it suitable for compact PCB layouts. It is a standard component for RS-422 communication interfaces and other line driver applications.
Key features of this line transmitter include four independent driver channels, CMOS logic family, surface mount compatibility, and 3-state output mode for line control flexibility.
Employs CMOS logic family for efficient power consumption. Features four independent line driver channels. Supports differential input and 3-state output functionality. Operates with supply voltages from 4.5V to 5.5V. Maximum propagation delay time of 8ns at capacitive load.
Designed for surface mount applications using a 16-pin SOIC package. Operates reliably within a temperature range from -40°C to 85°C. Compact dimensions: 10mm length, 6.2mm width, 1.75mm height. Supply current is approximately 500μA for low power operation.
Ideal for RS-422 line transmitter applications in industrial, communications, and electronic systems. This product is widely used in industrial machines, instrumentation, communication equipment, and embedded system designs that require robust and fast line driver ICs.
Explore the range of Line Interface ICs available for diverse industrial and electronic applications at EnvMart.
