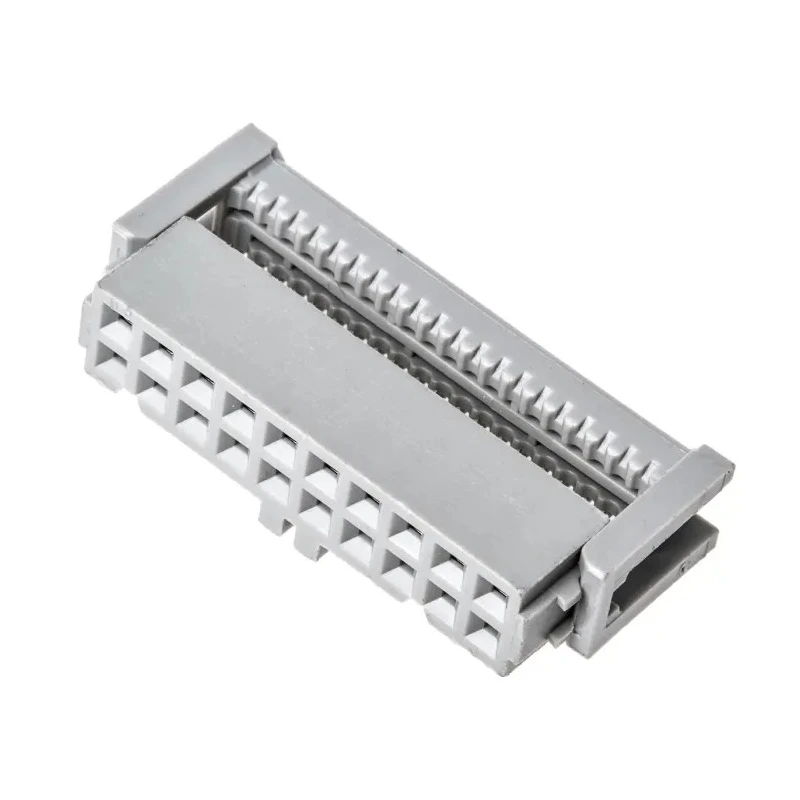

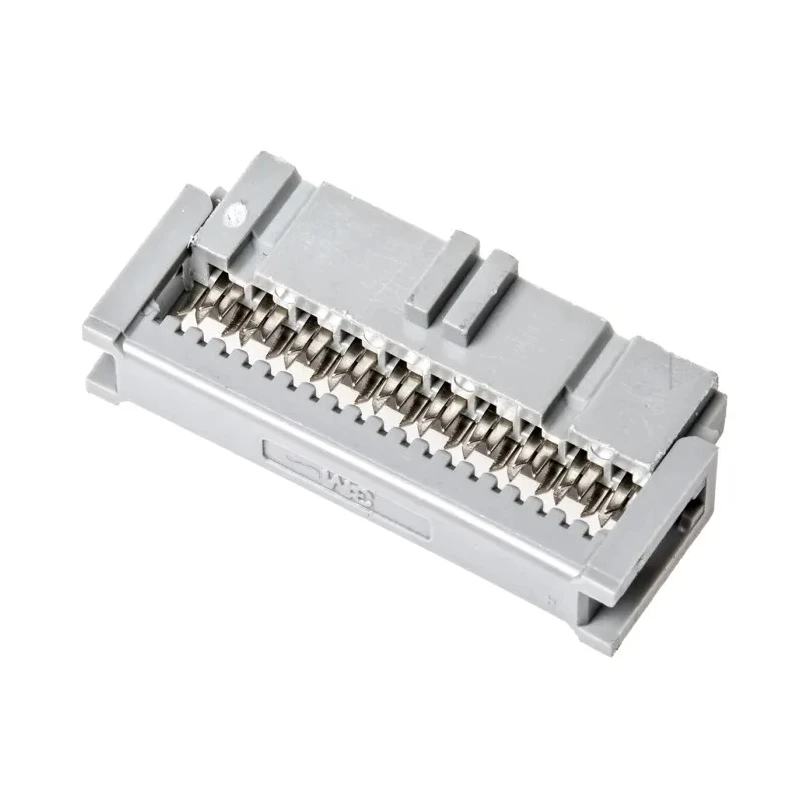

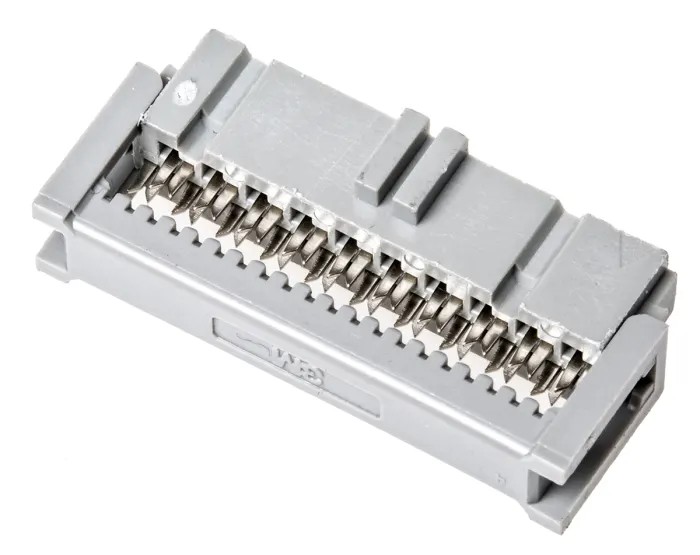

3M 20-Way IDC Connector Female for Cable, 2 Row, 1kV AC, 1A, Gold over Nickel Plating 89120-0101HA
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1kV ac |
| Brand | 3M |
| Orientation | Right Angle |
| Current | 1A |
| Model | 89120-0101HA |
| Mount Type | Cable |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | 891 |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 20 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shrouded/Unshrouded | Shrouded |
| TE Connectivity 20-Way IDC Connector Female for Cable, 2 RowBrand | TE Connectivity |
| 3M 20-Way IDC Connector Socket for Cable Mount, 2-RowBrand | 3M |
Key Features
- Preassembled connector socket allows rapid, tool-free insulation displacement connection.
- High voltage rating of 1kV AC supports demanding electronic applications.
- 20 contacts arranged in two rows with 2.54mm pitch for standard ribbon cable interfacing.
- Gold over nickel plating ensures reliable conductivity and corrosion resistance.
- Compact cable mount design with right-angle orientation for space-efficient assembly.
- Operating temperature range from -55°C to 105°C enables use in harsh environments.
- Phosphor bronze contact material delivers durability and electrical stability.
- Shrouded female connectors enhance protection and safety.
Product Description
3M 89120-0101HA 20-Way IDC Connector Female for Cable, 2 Row, rated 1kV AC and 1A current capacity, is designed to terminate ribbon cables quickly and efficiently without requiring stripping of individual wires or special tools. This insulation displacement connector features 20 gold-over-nickel plated contacts arranged in two rows with a 2.54mm pitch, accommodating high-density electronic interconnections.
The housing is constructed from durable polybutylene terephthalate, providing mechanical stability and resistance to environmental factors. Contacts made from phosphor bronze deliver excellent conductivity and longevity, while the shrouded female design enhances safety and connection reliability. Operating temperature ranges from -55°C to 105°C allow this connector to perform under various industrial and commercial conditions.
This connector series features a double-recessed cover, facilitating cable termination from both sides and eliminating the need for single-recessed covers. Its right-angle cable mount orientation optimizes space usage on printed circuit boards and wire assemblies.
Applications include telecommunications equipment, computer drives, and tablet electronic assemblies where reliable ribbon cable interconnections are essential. The connector is preassembled, enabling faster assembly and compatibility with manual and semi-automatic equipment loading through sword packaging and polarization features to prevent misalignment.
Preassembled construction for faster termination than two-piece sockets. Sword packaging supports easy loading for assembly equipment.
Double-sided adhesive pull tab option facilitates easy unplugging. Suitable for telecommunications, computing, tablet, and other electronic applications requiring space-saving high-density connectors.
Choose 3M IDC Connectors for reliable, durable, and efficient ribbon cable connections in demanding industrial, commercial, and electronic manufacturing settings. Explore more electronics components and connectors at EnvMart for your technical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector is rated for 1kV AC, making it suitable for demanding electronic applications.
It has a current capacity of 1A, which allows it to handle standard electrical loads in various applications.
This IDC connector features 20 contacts arranged in two rows, facilitating high-density interconnections.
The contact pitch is 2.54mm, which is standard for interfacing with ribbon cables.
The housing is made from polybutylene terephthalate, while the contacts are constructed from phosphor bronze with gold over nickel plating for enhanced conductivity.
It operates within a temperature range of -55°C to 105°C, suitable for various industrial and commercial conditions.
This model uses insulation displacement termination, allowing for quick and efficient connections without the need for stripping wires.
It features a cable mount design with a right-angle orientation, optimizing space usage on printed circuit boards.
The connector is shrouded, which enhances protection and safety during use.
It is suitable for telecommunications equipment, computer drives, and tablet electronic assemblies where reliable ribbon cable interconnections are essential.
The connector is manufactured in India, ensuring compliance with local production standards.
It includes preassembled construction for faster termination and sword packaging that supports easy loading for assembly equipment.
