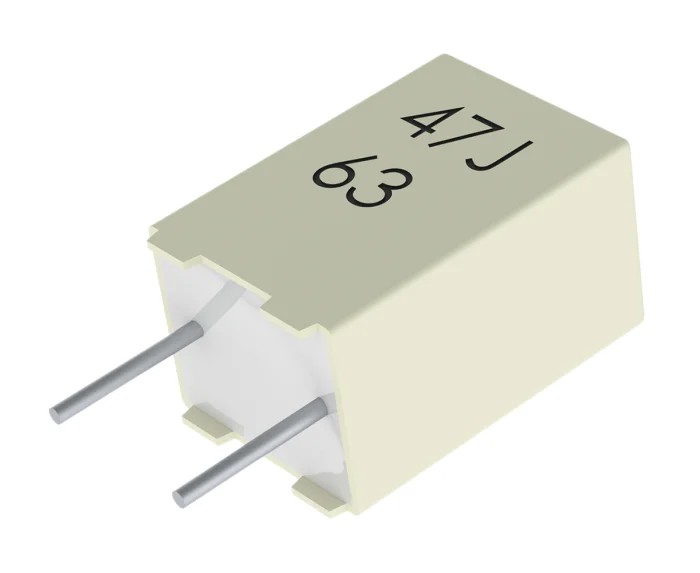

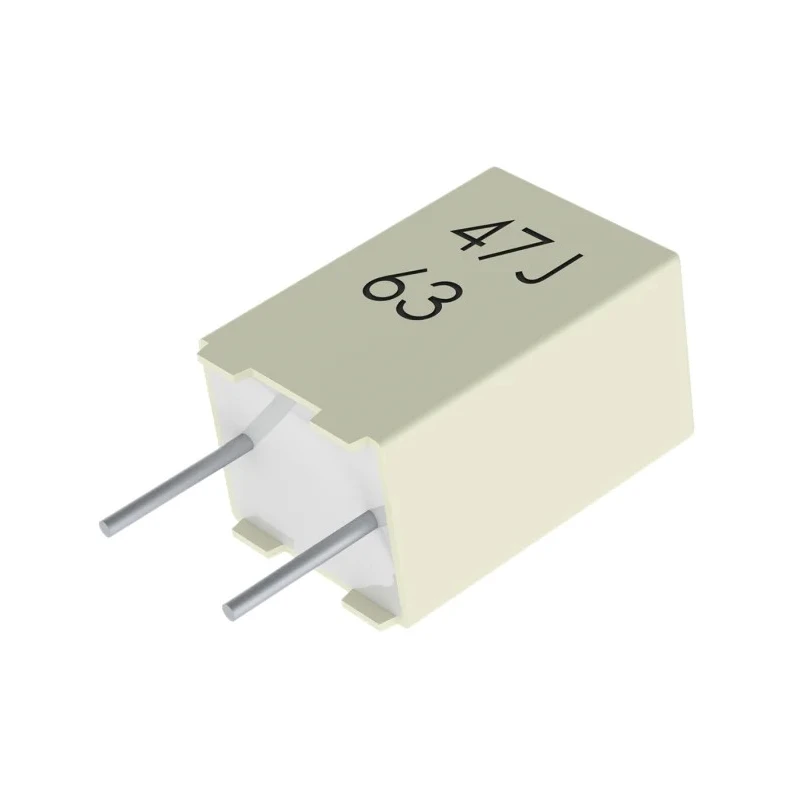

KEMET R82 Film Capacitor, ±5 % Tolerance, 47 nF, 100 V DC, 63 V AC, Through Hole Mount R82EC2470DQ60J

Free Delivery in India | Lowest Global Shipping Charges

KEMET R82 Film Capacitor, ±5 % Tolerance, 47 nF, 100 V DC, 63 V AC, Through Hole Mount R82EC2470DQ60J

Name: KEMET R82 Film Capacitor, ±5 % Tolerance, 47 nF, 100 V DC, 63 V AC, Through Hole Mount R82EC2470DQ60J
Brand: KEMET
SKU: 118986
Price: 0.09 USD
Availability: InStock



Category Film Capacitor Brand KEMET Condition New

Specifications

Country of Origin	India
Brand	KEMET
Height	6.5mm
Length	7.2mm
Model	R82EC2470DQ60J
Packaging	Ammo Pack
Width	2.5mm
Mount Type	Through Hole
Series	R82
Maximum Operating Temperature	105°C
Tolerance	±5 %
Capacitance	47nF
Minimum Operating Temperature	-55°C
Lead Length	18.5mm
Standards/Approvals	IEC 60384-2, RoHS
Pin Count	2
Rated AC Voltage	63V ac
Rated DC Voltage	100V dc
Lead Pitch	5mm
Lead Diameter	0.5mm
Automotive Standard	AEC-Q100

Key Features

Constructed with metallised polyester film and radial leads for durability.
Lead pitch measures 5 mm with 18.5 mm lead length and 0.5 mm lead diameter.
Operating temperature range spans from -55°C to 105°C ensuring reliability under varied conditions.
Complies with IEC 60384-2 and RoHS standards ensuring quality and environmental compliance.
Typical applications include blocking, coupling, decoupling, timing, and oscillator circuits.
Encapsulated in self-extinguishing, solvent resistant plastic case with thermosetting resin material.
Available in ammo pack packaging suitable for efficient assembly and automation.

Product Description

KEMET R82EC2470DQ60J film capacitor is a high-quality metallised polyester film capacitor designed for through-hole mounting applications. It features a capacitance of 47 nF with ±5 % tolerance, suitable for precise electronic circuit requirements. With a rated DC voltage of 100 V and AC voltage of 63 V, it is adaptable to a broad range of power conditions across industrial and commercial electronic systems.

The capacitor includes radial leads with a lead pitch of 5 mm and lead length of 18.5 mm, constructed with tinned wire electrically welded to the capacitor winding ends for optimal conductivity. Its encapsulation with a self-extinguishing, solvent resistant plastic case provides robust mechanical and environmental protection, enabling use in demanding environments.

This component is compliant with IEC 60384-2 and RoHS directives, ensuring adherence to international quality and safety standards. It possesses a wide operating temperature range from -55°C up to 105°C, making it suitable for varied climate conditions and applications.

Common use cases include blocking, coupling, decoupling, timing, and oscillator circuits within industrial electronics, automotive systems conforming with AEC-Q100 automotive standards, HVAC machinery, and water treatment control units. The ammo pack packaging supports automated insertion processes, enhancing production efficiency in manufacturing environments.

Capacitance: 47 nF with ±5 % tolerance. Rated voltages: 100 V DC, 63 V AC. Operating temperature: -55°C to 105°C. Lead pitch: 5 mm, lead length: 18.5 mm, lead diameter: 0.5 mm. Standards: IEC 60384-2, RoHS, AEC-Q100 automotive compliant.

Encapsulated in self-extinguishing solvent resistant plastic case. Applications in electronics, automotive, industrial, HVAC, and manufacturing. Packaging: Ammo pack for efficient automated assembly. Explore EnvMart for more high-quality Film Capacitors and other electronic components from trusted brands like KEMET.
