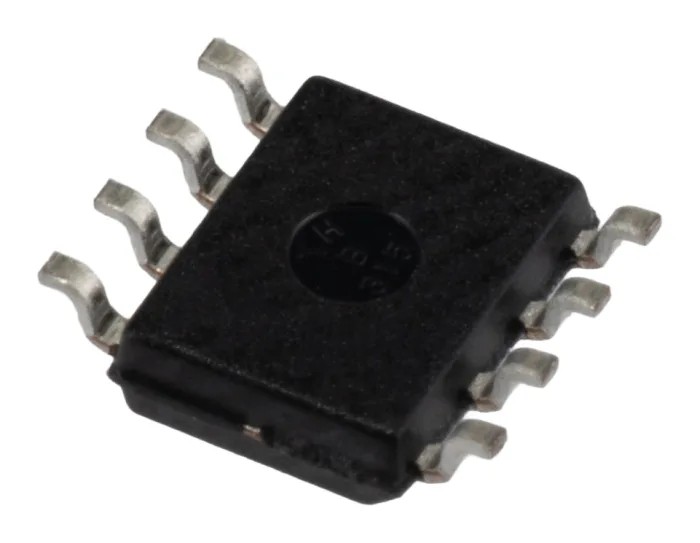

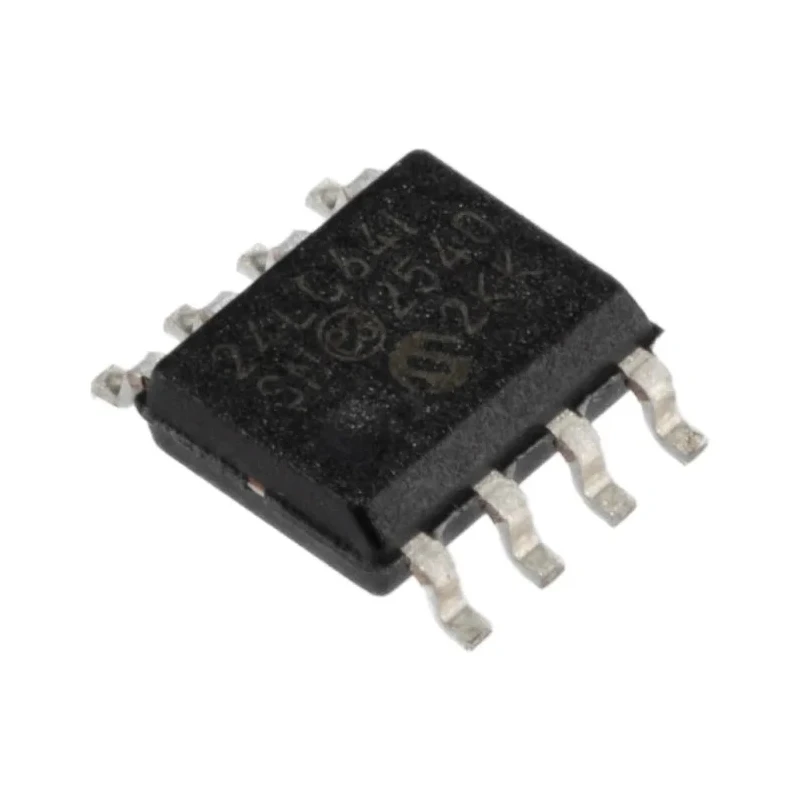

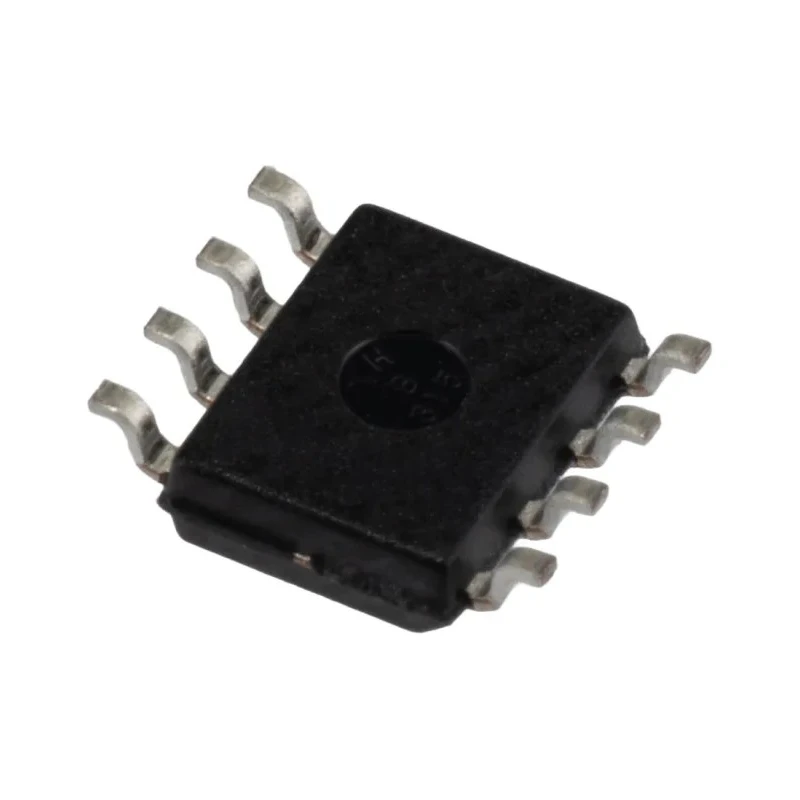

Microchip 64 kB Serial EEPROM 900 ns 8-Pin SOIC Serial-I2C 24LC64-I/SN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Length | 4.9mm |
| Model | 24LC64-I/SN |
| Width | 6mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Memory size | 64kB |
| Interface Type | Serial-I2C |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Supply Current | 3mA |
| Maximum Clock Frequency | 400kHz |
| Organisation | 8K x 8 bit |
| Number of Bits per Word | 8 |
| Maximum Random Access Time | 900ns |
| Number of Words | 8K |
| Microchip, 64 kB Serial EEPROM, 1000 ns 8-Pin SOIC Serial-I2CBrand | Microchip |
Key Features
- Offers a 64kB memory size organized as 8K x 8 bits for compact data storage.
- Operates with a supply voltage range from 2.5V to 5.5V supporting low voltage applications.
- Supports I2C compatible 2-wire serial interface with a maximum clock frequency of 400 kHz.
- Designed for surface mount with an 8-pin SOIC package and features a compact 4.9mm by 6mm size footprint.
- Ensures data retention for over 200 years with robust EEPROM technology and over 1 million erase/write cycles.
- Low power consumption with a maximum active current of 3 mA and standby current in the microampere range.
- Wide operating temperature range from -40°C to 85°C suitable for industrial and automotive environments.
- Includes automotive standard compliance with AEC-Q100 qualification for enhanced reliability.
Product Description
Microchip 24LC64-I/SN is a 64 kB Serial EEPROM designed for industrial, automotive, and commercial electronic applications requiring reliable non-volatile memory storage with fast access times and low power consumption. Featuring a standard I2C serial interface compatible with 400 kHz clock frequency, it allows easy integration into circuits requiring compact memory solutions.
The device operates within a voltage range of 2.5V to 5.5V, making it suitable for a wide array of power conditions. Its 8-pin SOIC surface mount package measures 4.9mm in length and 6mm in width, optimizing PCB space. The EEPROM guarantees over 200 years of data retention and supports more than one million erase/write cycles, ensuring longevity and durability for embedded memory applications.
Designed with advanced low-power CMOS technology, it achieves a maximum active current of 3 mA and a standby current close to 1 μA, thus enhancing energy efficiency. The operating temperature range from -40°C to 85°C and AEC-Q100 automotive qualification make it highly reliable for harsh industrial and automotive conditions.
64 kB memory size organized as 8K x 8 bit for efficient data management. Maximum random access time of 900 ns for fast read/write operations. Two-wire I2C serial interface supporting up to 400 kHz clock speed. Compact 8-pin SOIC surface mount package with 4.9mm length and 6mm width dimensions.
Data retention exceeding 200 years with over 1 million erase/write cycles. Low active current of 3 mA and ultra-low standby current for power saving. Wide operating temperature from -40°C to +85°C for robustness in extreme environments.
Compliance with AEC-Q100 automotive standard for high reliability.
This EEPROM device is ideally suited for use in electronic control units, industrial automation, automotive electronics, data logging equipment, and embedded memory applications requiring stable and durable serial memory solutions. Its robust design and industrial-grade qualifications make it a preferred choice for long-lasting memory usage in demanding environments.
Explore more Semiconductor components and EEPROM memory solutions in the EnvMart Electronics & Electricals category for your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a memory size of 64 kB organized as 8K x 8 bits.
The maximum clock frequency supported is 400 kHz.
It operates within a supply voltage range of 2.5V to 5.5V.
This EEPROM has a compact size with dimensions of 4.9mm in length and 6mm in width.
The maximum random access time is 900 ns.
It supports a Serial-I2C interface.
The maximum active current consumption is 3 mA.
It has an operating temperature range from -40°C to 85°C.
It supports over 1 million erase/write cycles.
It complies with the AEC-Q100 automotive standard for enhanced reliability.
It is designed for surface mount with an 8-pin SOIC package.
It is typically used in electronic control units, industrial automation, and automotive electronics.
