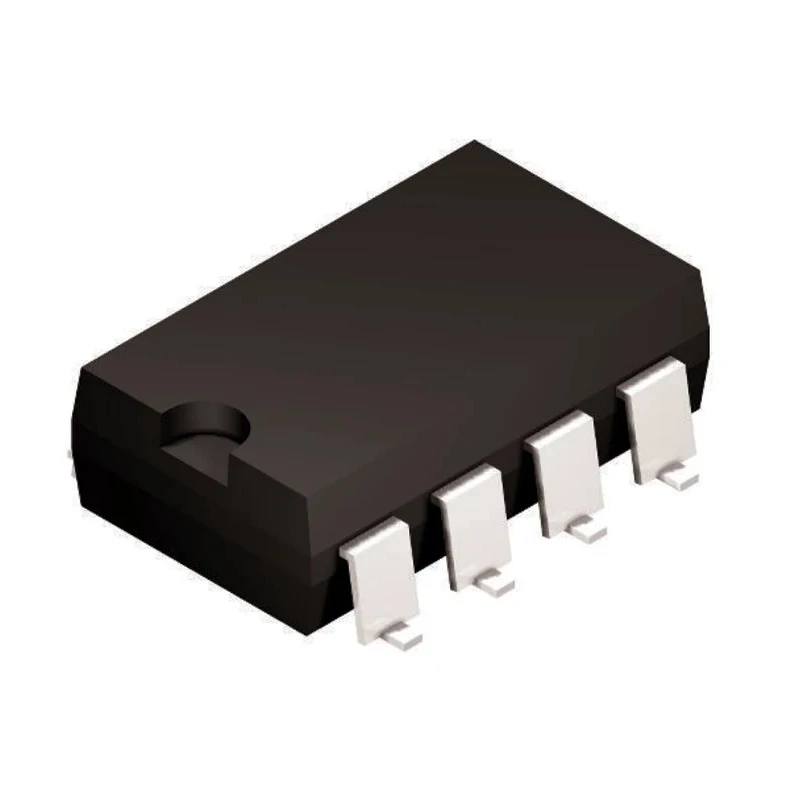

Broadcom DC Input Optocoupler Surface Mount 8-Pin DIP HCPL-2400-300E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | HCPL-2400-300E |
| Packaging | Tube |
| Mount Type | Surface |
| Series | HCPL |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 8mA |
| Number Of Channels | 1 |
| Standards/Approvals | VDE, UL, CSA |
| Maximum Forward Voltage | 1.55V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Typical Rise Time | 20ns |
| Typical Fall Time | 10ns |
Key Features
- Operates with a maximum forward voltage of 1.55V.
- Packaged in tubes for secure handling and insertion.
- Single channel design with 8 pins supporting DC input current type.
- Typical rise and fall times of 20ns and 10ns respectively for fast switching.
- Supported isolation voltage up to 3.75kVrms ensuring robust electrical isolation.
- Wide operating temperature range from -40°C to 85°C suitable for diverse industrial uses.
- Complies with VDE, UL, and CSA safety standards for quality assurance.
- Neither automotive certified nor intended for automotive system use.
Product Description
Broadcom HCPL-2400-300E is a high-performance DC input optocoupler designed for surface mounting and packaged in an 8-pin DIP format. This optocoupler provides reliable electrical isolation between input and output circuits, making it ideal for applications requiring noise reduction and signal integrity in electronic devices.
The device operates with a maximum forward voltage of 1.55V and supports a maximum input current of 8mA. Its fast typical rise time of 20ns and fall time of 10ns allow for efficient switching, making it suitable for logic output and digital signal processing in industrial control equipment and electronic instrumentation.
Packaged in tubes, the HCPL-2400-300E is ready for automated assembly processes, contributing to enhanced production efficiency. It features a single channel and an 8-pin DIP package type, facilitating compatibility with standard circuit board layouts.
Operating across a broad temperature range from -40°C to 85°C, this optocoupler is well-suited to industrial and commercial electronic applications requiring resilience to temperature variation. The device meets rigorous VDE, UL, and CSA standards, ensuring compliance with international safety and quality regulations.
Though it lacks automotive certification, the HCPL-2400-300E is a versatile optocoupler perfect for use in power supplies, signal isolation, and digital interfacing applications across various sectors including industrial, manufacturing, and electronics assembly.
Operates with maximum forward voltage of 1.55V. Supports DC input current type with maximum 8mA input current. Typical rise time of 20ns and fall time of 10ns enable quick switching. Single channel optocoupler in 8-pin DIP package.
Wide operating temperature range from -40°C to 85°C. Compliant with VDE, UL, and CSA safety standards. Designed for surface mount applications with tube packaging. Logic output compatible for digital circuits. Ideal for industrial and commercial electronic applications.
Explore more Broadcom Optocouplers and related electronic components within the EnvMart catalogue to meet diverse industrial and electronic design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward voltage of this optocoupler is 1.55V.
This model supports a maximum input current of 8mA.
The typical rise time is 20ns and the fall time is 10ns, allowing for efficient switching.
It operates within a temperature range from -40°C to 85°C.
This optocoupler is packaged in tubes for secure handling and insertion.
It features a single channel design.
This model complies with VDE, UL, and CSA safety standards.
It has an 8-pin DIP configuration, facilitating compatibility with standard circuit board layouts.
This optocoupler supports a DC input current type.
No, it is not automotive certified and is not intended for automotive system use.
The fast typical rise and fall times enable quick switching, making it suitable for logic output and digital signal processing.
The country of origin for this optocoupler is India.
