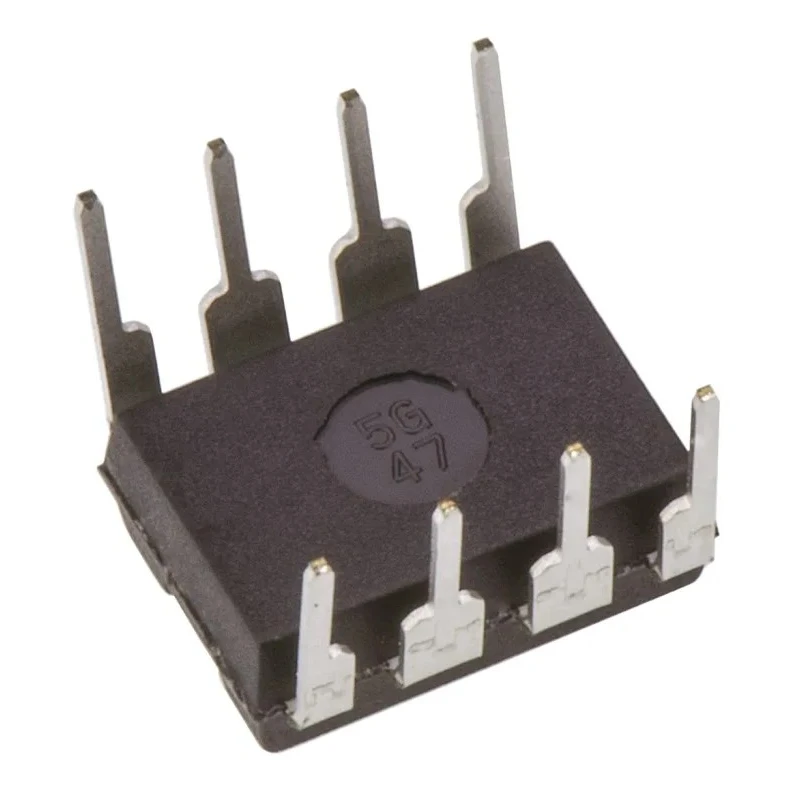

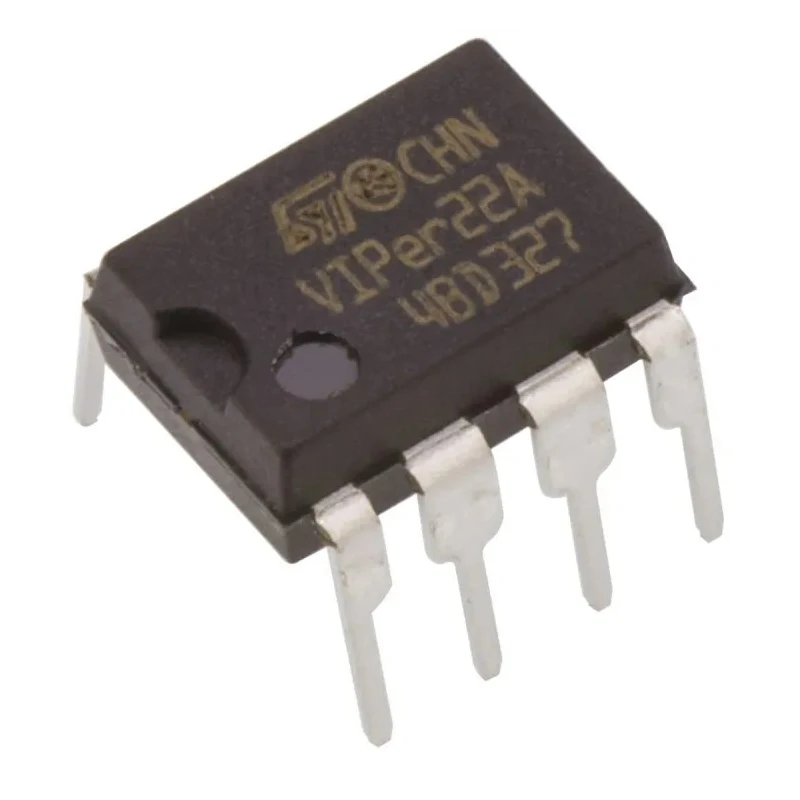

STMicroelectronics 8-Pin PDIP VIPER22ADIP-E PWM Controller 60 kHz 50V Through Hole
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 4.95mm |
| Length | 10.16mm |
| Model | VIPER22ADIP-E |
| Width | 7.11mm |
| Mount Type | Through Hole |
| Maximum Duty Cycle | 16% |
| Topology | Forward |
| Maximum Operating Temperature | 150°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Output Voltage | 730V |
| Maximum Switching Frequency | 60kHz |
| Pin Count | 8 |
| Maximum Supply Voltage | 50V |
| Minimum Supply Voltage | 0mV |
| Supply Current | 4.5mA |
| PWM Controller Type | Current Mode |
Key Features
- This PWM controller integrates a 700V vertical power MOSFET suitable for AC/DC converters.
- It supports a maximum switching frequency of 60 kHz for efficient power management.
- The device is mounted through hole in an 8-pin PDIP package, measuring 10.16mm length by 7.11mm width.
- Operational temperature ranges from -40°C to 150°C, ensuring reliability in harsh industrial environments.
- The maximum output voltage capability is 730V with a maximum duty cycle of 16%.
- The device consumes a supply current of 4.5mA and has a minimum supply voltage of 0 mV.
- Features forward topology and current mode PWM control for precise regulation.
- Suitable for offline power supplies, compatible with either primary or secondary side regulation loops.
Product Description
STMicroelectronics VIPER22ADIP-E is a high-voltage off-line converter combining a PWM controller and a vertical power MOSFET in one 8-pin PDIP package. It operates at a fixed switching frequency of 60 kHz and can handle supply voltages up to 50V, making it suitable for AC/DC converters and offline power supplies.
The device features current mode PWM control with a 16% maximum duty cycle and supports forward topology. Its robust design includes an operational temperature range from -40°C to 150°C and a compact footprint with dimensions of 10.16mm by 7.11mm by 4.95mm height, appropriate for through-hole mounting.
Its low supply current of 4.5mA enhances energy efficiency in power management applications. The integrated 700V power MOSFET allows for high output voltages up to 730V, fitting a variety of industrial and commercial power conversion uses.
This controller is engineered for applications requiring stable and efficient power switching such as power supplies in industrial automation, HVAC systems, and manufacturing equipment.
This PWM controller integrates a 700V vertical power MOSFET for high voltage handling. Maximum switching frequency is 60 kHz supporting efficient power conversion. Designed as an 8-pin PDIP through-hole package simplifying integration.
Operational temperature range is from -40°C to 150°C for wide environmental tolerance. Maximum output voltage up to 730V improves versatility in power applications. Low supply current of 4.5mA contributes to energy efficiency.
Current mode PWM with forward topology supports precise control. Compact dimensions provide easy installation in PCB layouts.
This product is new and manufactured in India. It is an ideal solution for power management IC requirements in various electronic and industrial applications. Explore more semiconductor and power management products on EnvMart for professional engineering needs.
Explore more products in our Power Management ICs category.
