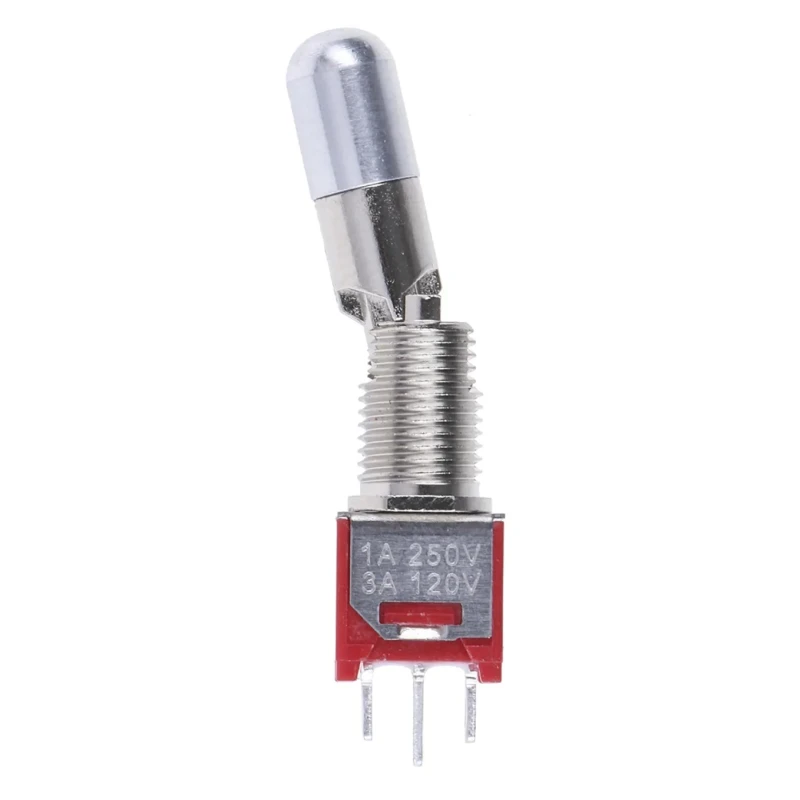

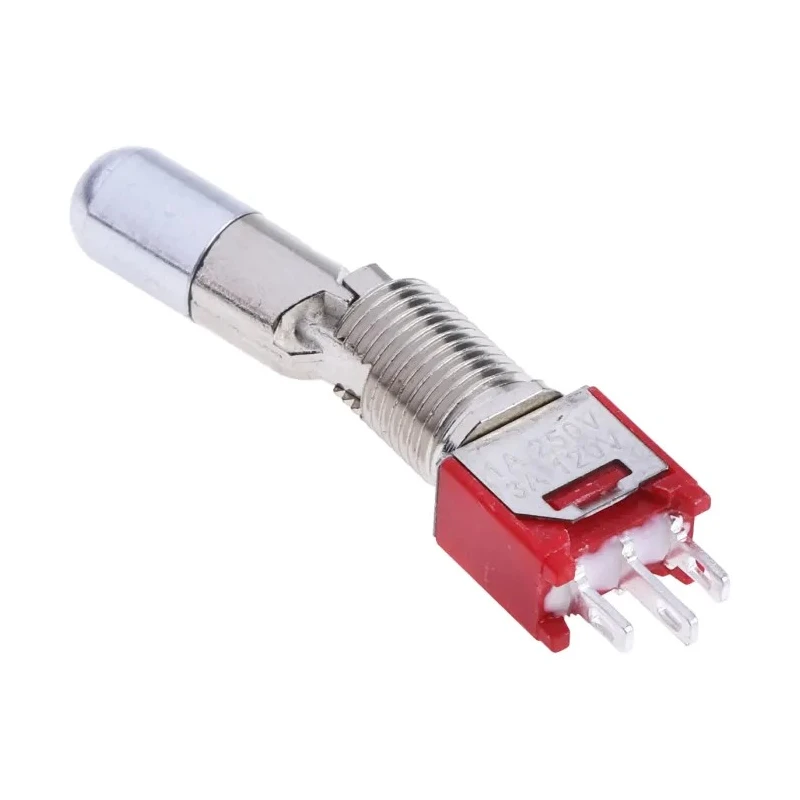

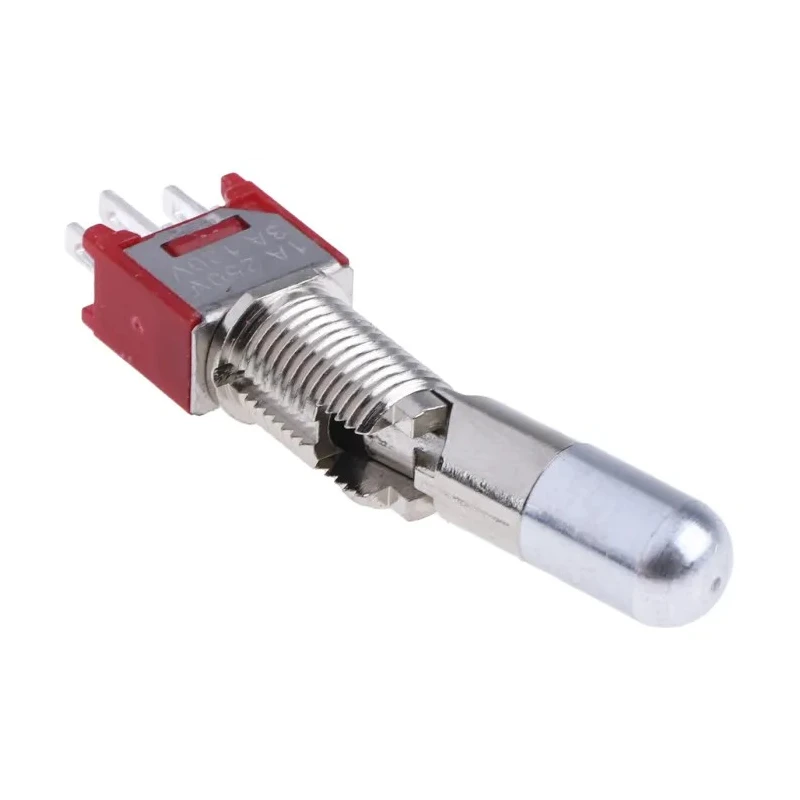

RS PRO Toggle Switch Panel Mount On-On SPDT Solder Terminal 28 V dc 240 V ac 394-471

RS PRO 394-471 Toggle Switch is a reliable panel mount switch designed for industrial and automation applications. It operates as an On-On SPDT (Single Pole Double Throw) switch, suitable for controlling two circuits from a single input. The switch supports electrical ratings of 28 V dc and 240 V ac, allowing versatile use in control panels and machinery.

The toggle actuator, made of robust brass material with a length of 16 mm, provides excellent mechanical strength and durability. Epoxy-sealed terminals enhance reliability by preventing contamination during soldering processes, ensuring stable electrical connections. The latching mechanism securely locks the toggle in the selected position to avoid accidental switching.

The switch housing uses diallyl phthalate (DAP) which meets the UL-94-V0 flame retardancy standard, ensuring that in case of fire the casing self-extinguishes rapidly, enhancing safety. It is tested for a mechanical life of 30,000 cycles, giving assured longevity under frequent operation conditions.

With protection ratings of IP66 and IP56, this toggle switch is resistant to dust and water ingress, making it suitable for harsh industrial environments. It complies with multiple certifications including UL, CSA, CE, and RoHS, reflecting its adherence to safety and environmental norms.

This toggle switch features a solid brass actuator of 16 mm length for durability. It supports a contact current rating of 3 A and can operate up to 85°C temperature. The switch is designed with SPDT contact configuration providing single pole double throw functionality.

It offers high protection with IP66 and IP56 ratings against dust and water ingress. The epoxy-sealed terminals ensure reliable solder connections without contamination risk. This latching toggle switch locks into the selected position for secure operation.

The casing is made of diallyl phthalate (DAP), compliant with UL-94-V0 for flame retardancy. With a mechanical life rating of 30,000 cycles, it provides long service life in industrial use. It is suitable for industrial machines, motors, relays, and automation control circuits.

This product meets industry standards including UL, CSA, CE, and RoHS for safety and environmental compliance.

This Toggle Switch is ideal for use in industrial automation, electrical control panels, manufacturing machinery, and motor control applications. It combines reliable electrical performance with robust mechanical design to meet demanding operating requirements.
