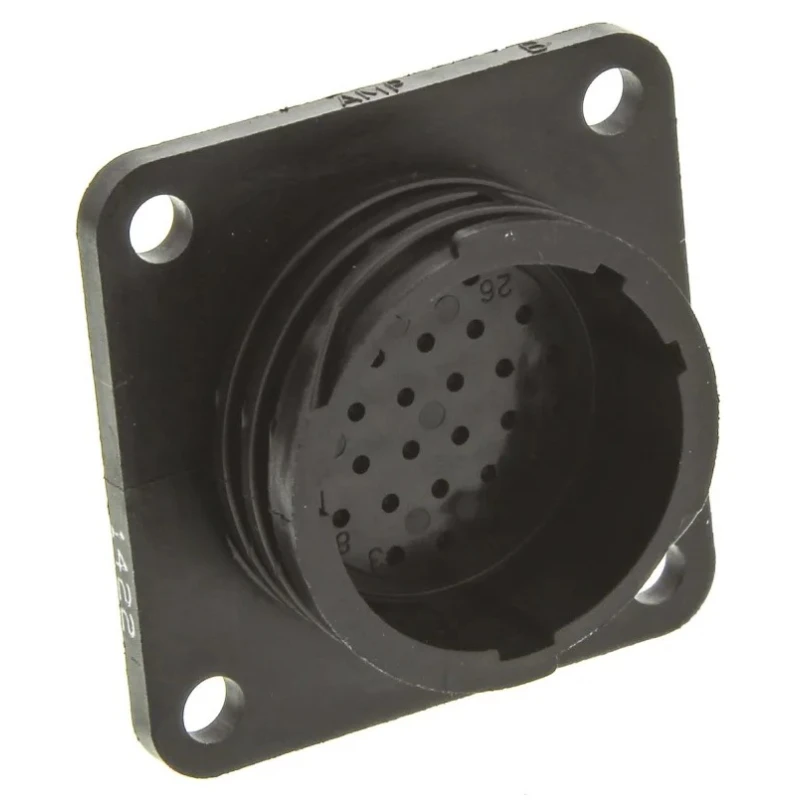

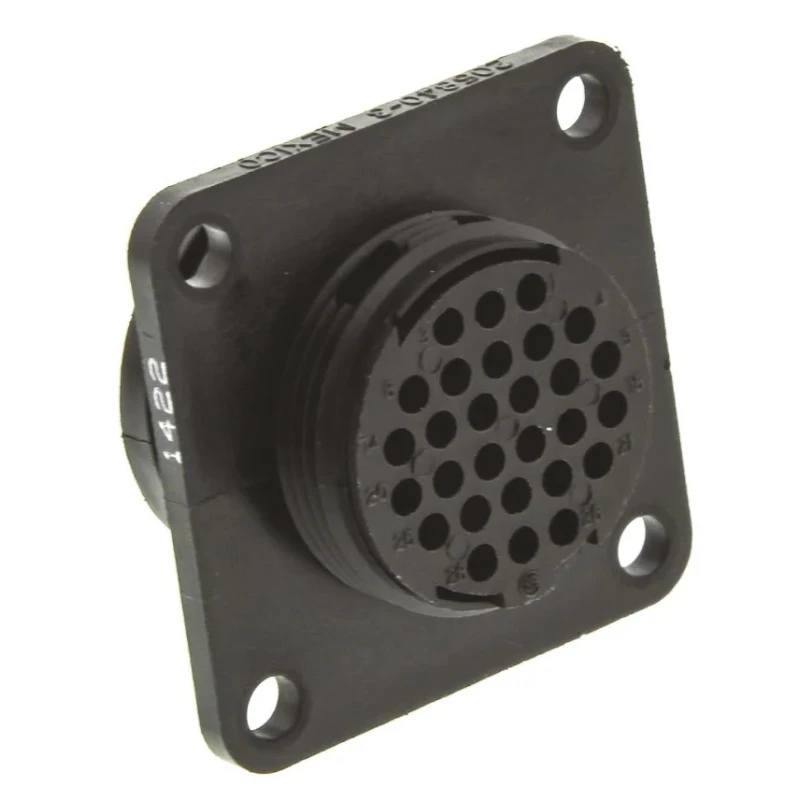

TE Connectivity Circular Connector Panel Mount Socket Male, 28 Contacts, Standard Size, 7.5A, 250V, Thermoplastic 205840-3
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 7.5A |
| Model | 205840-3 |
| IP Rating | IP67 |

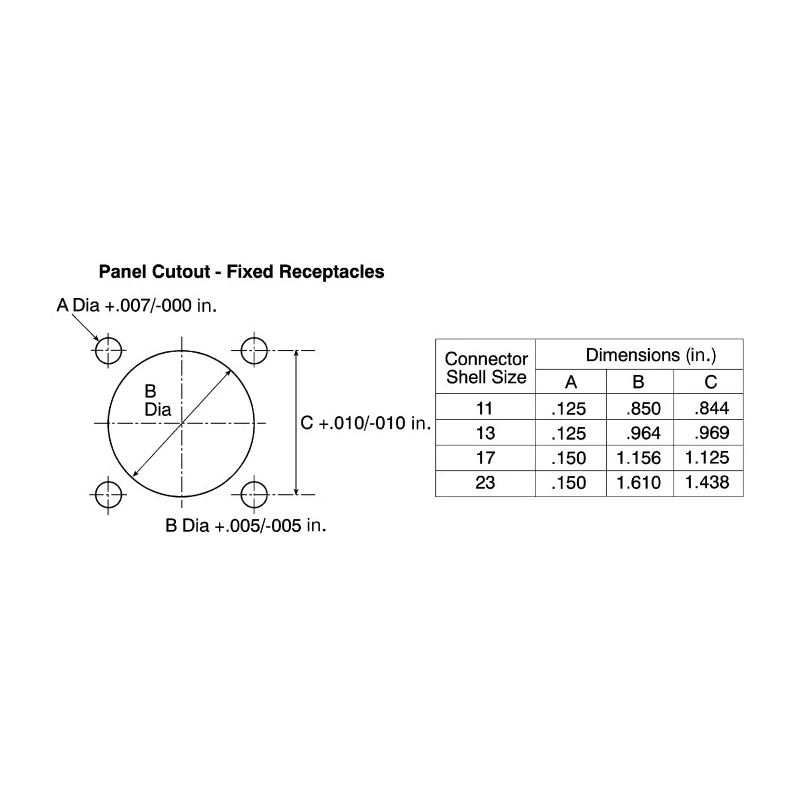

| Mount Type | Panel Mount |
| Housing Material | Thermoplastic |
| Series | CPC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | CSA, RoHS, UL 94V-0 |
| Contact Plating | Nickel |

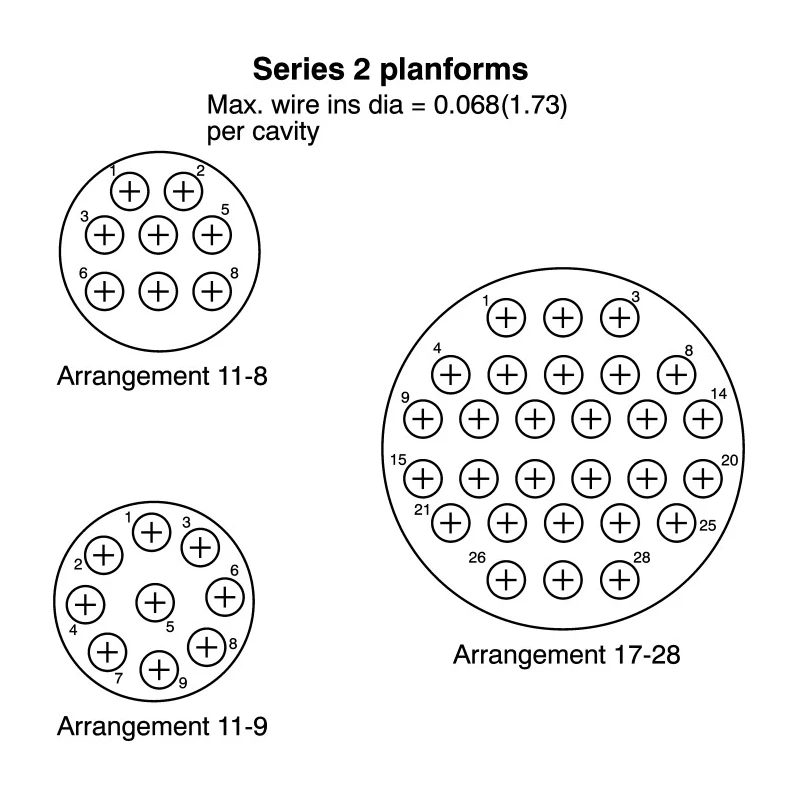

| Number of Contacts | 28 |
| Contact Gender | Male |
| Shell Size | 17 |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Plug/Socket | Socket |
Key Features
- This circular connector supports a straight orientation for reliable connections.
- It is constructed with nickel-plated contacts for enhanced durability and conductivity.
- The termination type is crimp with a bayonet mating mechanism for secure attachment.
- Designed to operate within a temperature range of -55°C to 105°C for versatile environments.
- Meets standards including CSA, RoHS, and UL 94V-0 for safety and compliance.
- CPC series connector ensures compatibility with corresponding series connectors.
- The panel mount design delivers secure and stable installations in electronic equipment.
- The housing is made from durable thermoplastic material ensuring long service life.
Product Description
TE Connectivity 205840-3 Circular Connector is a high-quality panel mount socket designed for industrial and electronic components applications. It features 28 contacts with a standard connector size, supporting a current of 7.5 amperes and rated for operation at 250 volts. The connector's thermoplastic housing and nickel contact plating provide durability and corrosion resistance, making it suitable for demanding environments.
Engineered for reliability, this circular connector includes a bayonet mating type with crimp termination, ensuring secure and stable connections. It is part of the CPC series connectors, compatible with related series connectors from TE Connectivity.
Its IP67 ingress protection rating guarantees dust tightness and protection against immersion in water, making this connector ideal for harsh industrial, manufacturing, and electronic control applications. The device supports a temperature range from -55°C minimum to 105°C maximum, suitable for a wide range of operational conditions.
Compliance with CSA, RoHS, and UL 94V-0 standards confirms the connector's safety and environmental conformity. The panel mount version simplifies installation while maintaining connection integrity, widely used in electronics, power connectors, and control systems.
This circular connector has 28 male contacts for efficient signal transmission. Panel mount configuration allows easy integration into equipment chassis. Nickel-plated contacts ensure reliable conductivity and corrosion resistance.
Thermoplastic housing delivers mechanical strength and electrical insulation. Bayonet mating system provides secure locked connection with counterpart connectors. Operates safely at voltage of 250 volts and current up to 7.5 amperes.
IP67 rated protection against dust and moisture ingress. Wide operating temperature range of -55°C to 105°C enables diverse industrial use. Certified to CSA, RoHS, and flame retardant UL 94V-0 standards.
This TE Connectivity connector is ideal for industrial, manufacturing, electronics assembly, and automotive applications where secure, high-quality circular connectors are required. Explore other CPC series connectors in the Electronics Components category on EnvMart for comprehensive connectivity solutions.
Explore more products in our Industrial Circular Connector category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 7.5 amperes.
It is rated for operation at 250 volts.
The connector has an IP67 rating, ensuring it is dust tight and protected against immersion in water.
It operates within a temperature range of -55°C to 105°C.
This connector features 28 male contacts.
It uses crimp termination for secure connections.
The housing is made from thermoplastic, and the contacts are nickel-plated for enhanced durability and conductivity.
It features a bayonet mating mechanism for secure attachment.
Yes, it meets CSA, RoHS, and UL 94V-0 standards for safety and compliance.
This model is designed for panel mount installation.
It is part of the CPC series of connectors.
The shell size for this connector is 17.
