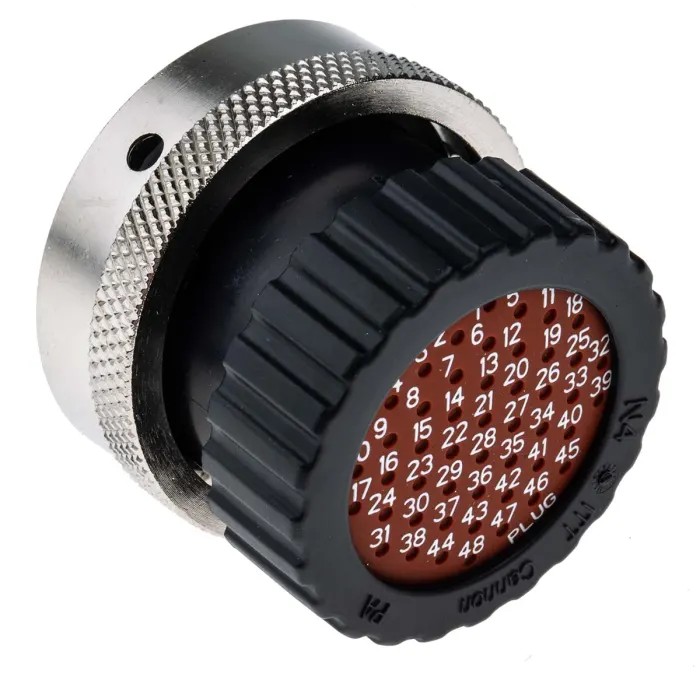

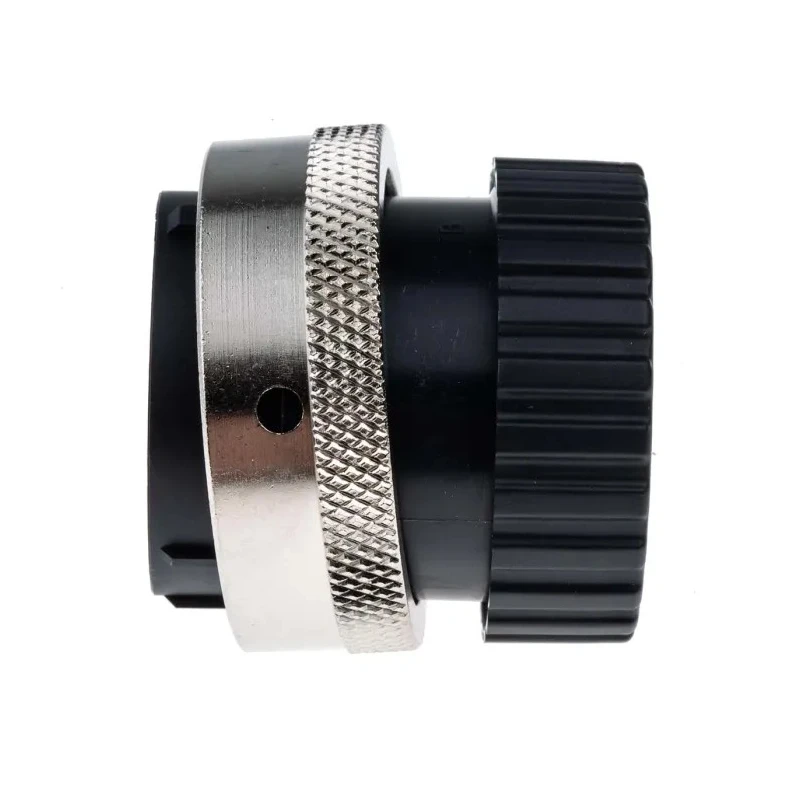

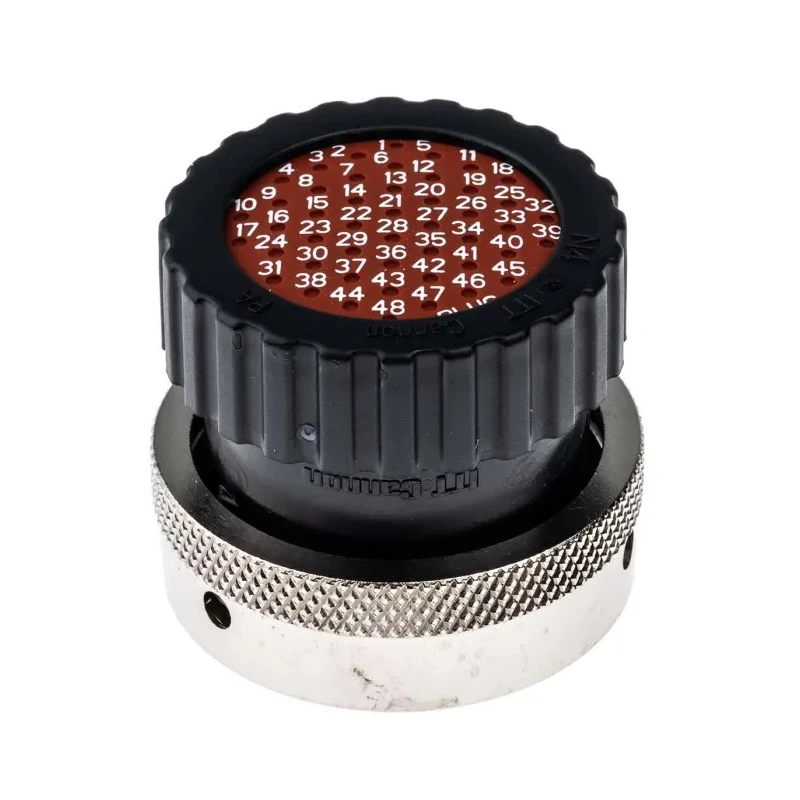

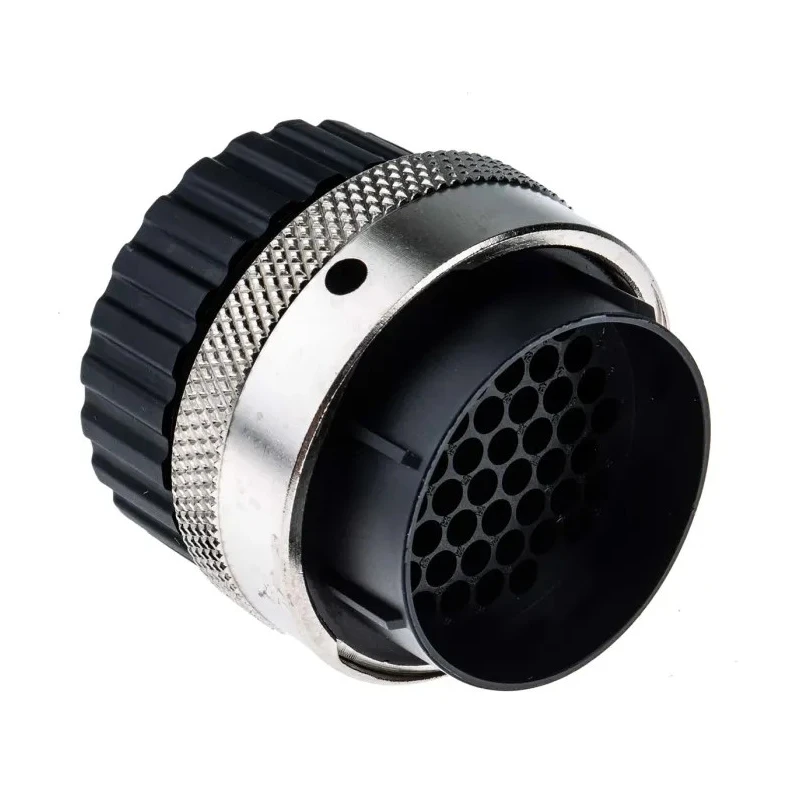

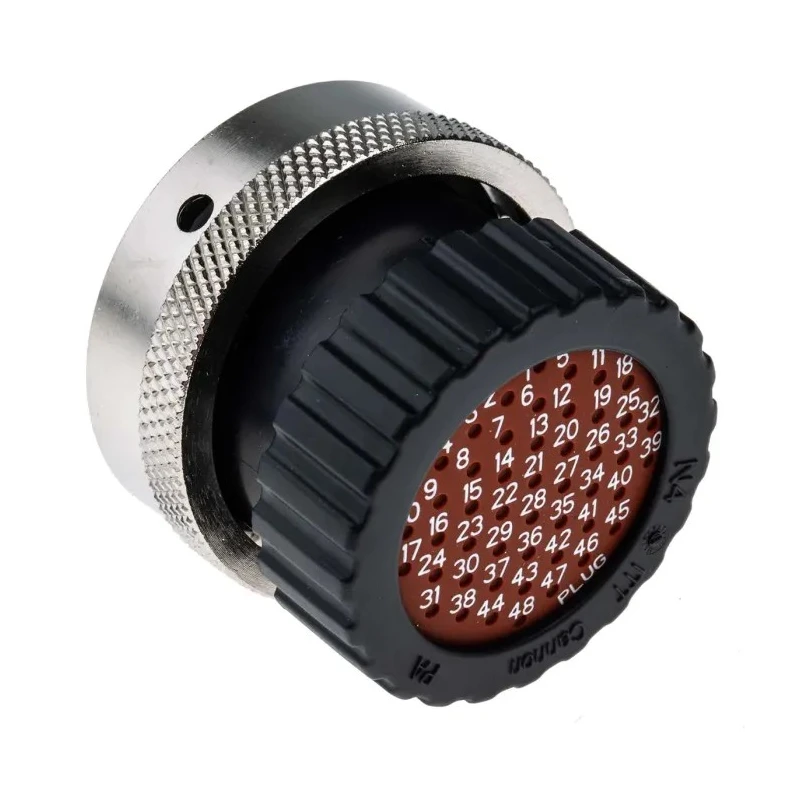

ITT Cannon Circular Connector 48 Contacts Cable Standard Plug Male IP67 Trident Neptune Series TN6S24-0048P1L / 192900-0469
Specifications
| Country of Origin | Hungary |
|---|---|
| Voltage | 250V |
| Brand | ITT Cannon |
| Orientation | Straight |
| Current | 30A |
| Model | TN6S24-0048P1L / 192900-0469 |
| IP Rating | IP67 |
| Mount Type | Cable |
| Housing Material | Polymer |
| Contact Material | Copper |
| Series | Trident Neptune |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pole Format | 48 |
| Contact Plating | Nickel |
| Number of Contacts | 48 |
| Contact Gender | Male |
| Shell Size | 24 mm |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Plug/Socket | Plug |
Key Features
- The connector features a robust polymer housing and a nickel-plated copper contact material.
- Rated for 250V voltage and 30A current for reliable power and signal transmission.
- Designed with crimp termination and straight orientation for secure cable connection.
- Operates efficiently within -55°C to 105°C temperature range.
- Includes a metal coupling nut and bayonet retention mechanism for durability.
- Compatible with industrial, automotive, marine, and process control applications.
- Ensures cost and weight efficiency by combining plastic connector benefits with metal connector durability.
- Meets IP67 for water submersible protection.
Product Description
ITT Cannon TN6S24-0048P1L / 192900-0469 circular connector is an industrial-grade 48-contacts male plug designed for cable mounting with a standard shell size of 24 mm and an IP67 rating, ensuring protection against dust and water ingress. It features a polymer housing combined with a nickel-plated copper alloy coupling ring and stainless steel bayonet pins, providing robust durability and corrosion resistance. This connector supports a voltage rating of 250V and a current rating of 30A per contact, suitable for demanding electrical applications.
The connector utilizes a bayonet mating type with crimp termination, allowing for secure and reliable cable connections. Operating temperatures range from -55°C to 105°C, making it adaptable to extreme industrial environments. The Neptune series design combines power and signal contacts for versatile use, ideal for sectors including automotive, marine, industrial automation, construction equipment, and process control.
With a water submersible design, the connector can withstand 500 mating cycles, ensuring long-term performance. Its straight body orientation and metal coupling nut with bayonet retention offer robust mechanical stability. The connector complies with UL approval standards and incorporates a rubber seal at the rear to maintain IP67 rating, with wire insulation diameters accommodated from 1.7 to 4.0 mm dependent on wire type.
The connector features a robust polymer housing and nickel-plated copper contacts. Bayonet coupling system provides secure and durable mating. Designed for mixed power and signal contacts in one housing. Operating temperature range from -55°C to 105°C for industrial resilience.
IP67 water submersible rating offers environmental protection. Suitable for automotive, marine, agricultural, and industrial applications. Crimp termination method ensures reliable cable connections. Stainless steel bayonet pins offer corrosion resistance and strength.
This ITT Cannon circular connector is a premier choice for industrial and commercial electronics requiring rugged, high-performance circular connectors. Explore EnvMart’s Electronics Components category for more connectors and accessories to suit diverse application needs.
Explore more products in our Industrial Circular Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a voltage of 250V and a current of 30A per contact, making it suitable for various electrical applications.
It has an IP67 rating, which indicates it is protected against dust and can withstand water submersion.
The housing is made of polymer, while the contacts are constructed from nickel-plated copper, providing durability and corrosion resistance.
It operates efficiently within a temperature range of -55°C to 105°C, suitable for extreme industrial environments.
This circular connector features 48 contacts, designed for versatile applications.
It utilizes a crimp termination method, ensuring secure and reliable cable connections.
The shell size of this model is 24 mm, which is standard for this type of connector.
It employs a bayonet mating type, which provides a secure and durable connection.
It is compatible with industrial, automotive, marine, and process control applications, making it versatile for various sectors.
It features a metal coupling nut and a bayonet retention mechanism, which contribute to its robust mechanical stability.
The rubber seal at the rear helps maintain the IP67 rating by preventing water ingress, ensuring reliable performance in wet conditions.
The country of origin for this model is Hungary, indicating its manufacturing location.
