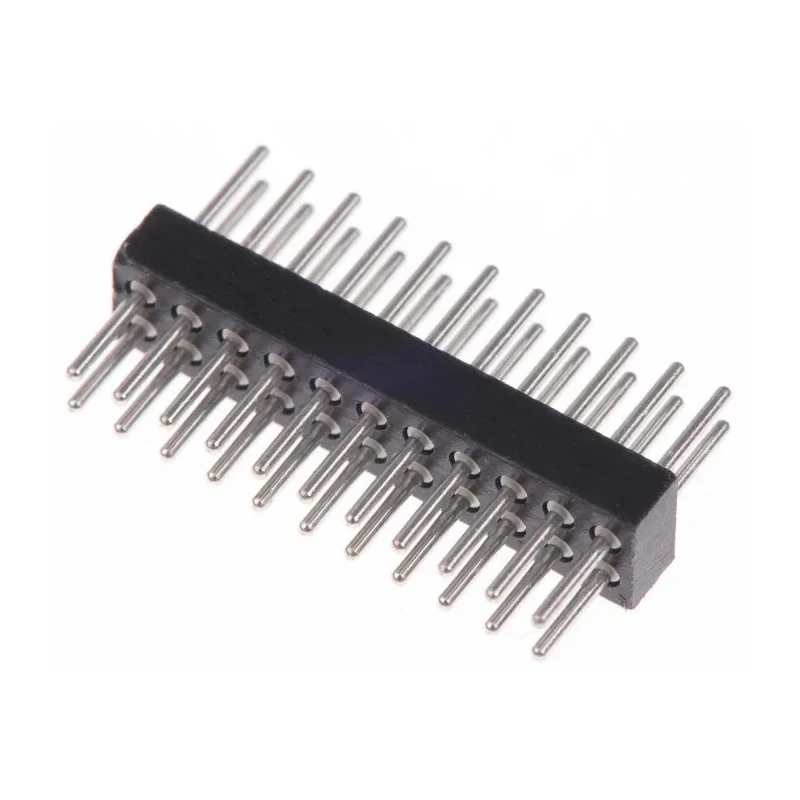

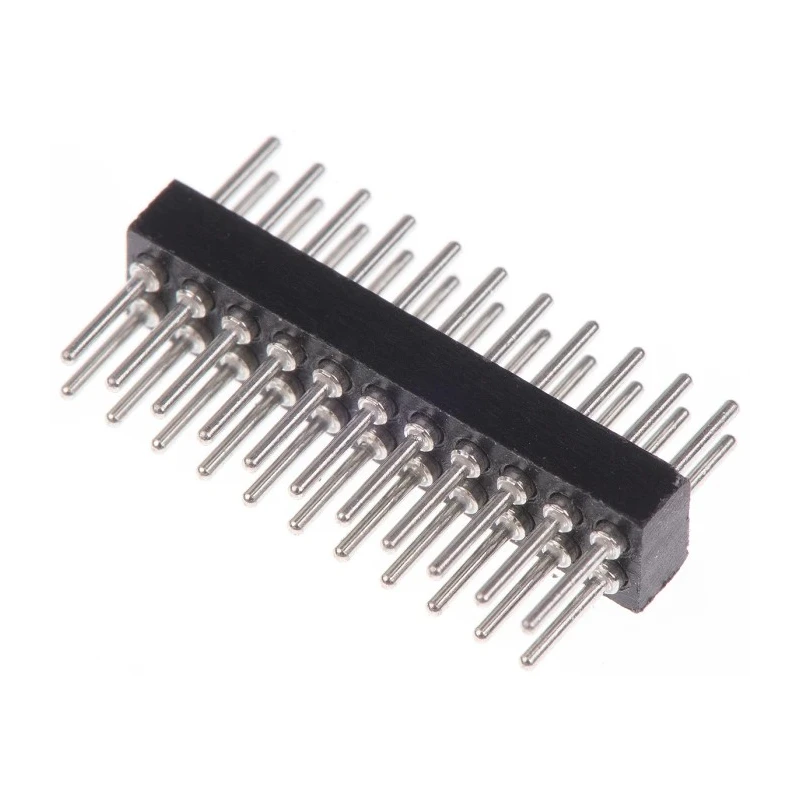

Preci-Dip 852 Series Straight Through Hole Pin Header, 22 Contacts, 1.27 mm Pitch, 2 Row, Unshrouded 852-80-022-10-001101

Free Delivery in India | Lowest Global Shipping Charges

Preci-Dip 852 Series Straight Through Hole Pin Header, 22 Contacts, 1.27 mm Pitch, 2 Row, Unshrouded 852-80-022-10-001101

Name: Preci-Dip 852 Series Straight Through Hole Pin Header, 22 Contacts, 1.27 mm Pitch, 2 Row, Unshrouded 852-80-022-10-001101
Brand: Preci-Dip
SKU: 215346
Price: 6.16 USD
Availability: InStock



Category PCB Pin Header Brand Preci-Dip Condition New

Specifications

Country of Origin	Switzerland
Voltage	150V
Brand	Preci-Dip
Orientation	Straight
Current	1A
Mount Type	Through Hole
Housing Material	Fibreglass Reinforced Polyethylene Terephthalate
Contact Material	Brass
Series	852
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	1.27mm
Contact Plating	Tin
Number of Contacts	22
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded

Key Features

Supports a current rating of 1 Ampere for stable electrical throughput.
Constructed with fibreglass reinforced polyethylene terephthalate housing for durability.
Brass contact material with tin plating ensures corrosion resistance and conductivity.
Designed for through-hole mounting with solder termination type.
Operates reliably in temperatures ranging from -55°C to 125°C.
Unshrouded male straight orientation provides easy insertion and soldering.
Complies with UL 94V-0 flame retardant standard for safe industrial use.
Originates from Switzerland, reflecting high manufacturing quality standards.

Product Description

Preci-Dip brand 852 Series Straight Through Hole Pin Header model 852-80-022-10-001101 is a high-quality electronic connector designed for industrial and PCB assembly applications. It features 22 male contacts arranged in 2 rows with a precise 1.27 mm pitch and an unshrouded straight orientation suitable for through-hole mounting.

The housing is fabricated from fibreglass reinforced polyethylene terephthalate, offering excellent mechanical strength and electrical insulation. Contacts are made from brass and plated with tin to provide superior conductivity and resistance to corrosion. The termination method is solder, ensuring dependable and permanent circuit connection.

This pin header supports a continuous current rating of 1A and handles voltages up to 150V, making it suitable for various electronics and power connector uses. It operates efficiently across temperatures of -55°C to 125°C and conforms to the UL 94V-0 flame retardant standard for safety in demanding industrial environments.

Applications include PCB headers in electronic components manufacturing, communications equipment, instrumentation, and power devices. Its compact and robust design enhances production efficiency by facilitating easy insertion and soldering on printed circuit boards.

Current rating of 1 Ampere. Fibreglass reinforced polyethylene terephthalate housing material. 22 male contacts with 1.27 mm pitch arranged in 2 rows. Brass contacts with tin plating for corrosion resistance. Unshrouded straight orientation and through-hole mount type.

Temperature range from -55°C to 125°C. Voltage rating of 150 Volts. UL 94V-0 flame retardant standard compliance. Manufactured in Switzerland for high quality assurance.

This product is ideal for industrial and laboratory electronic assembly, manufacturing, and repair operations requiring reliable, high precision PCB connections. Browse EnvMart's comprehensive range of PCB headers and electronic connectors for compatible components and accessories.
