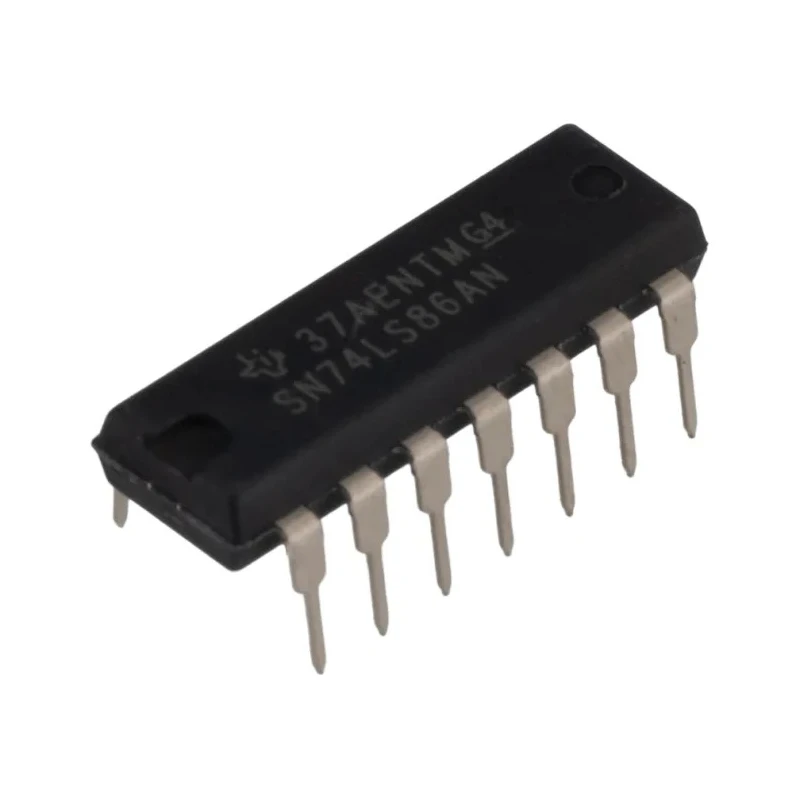

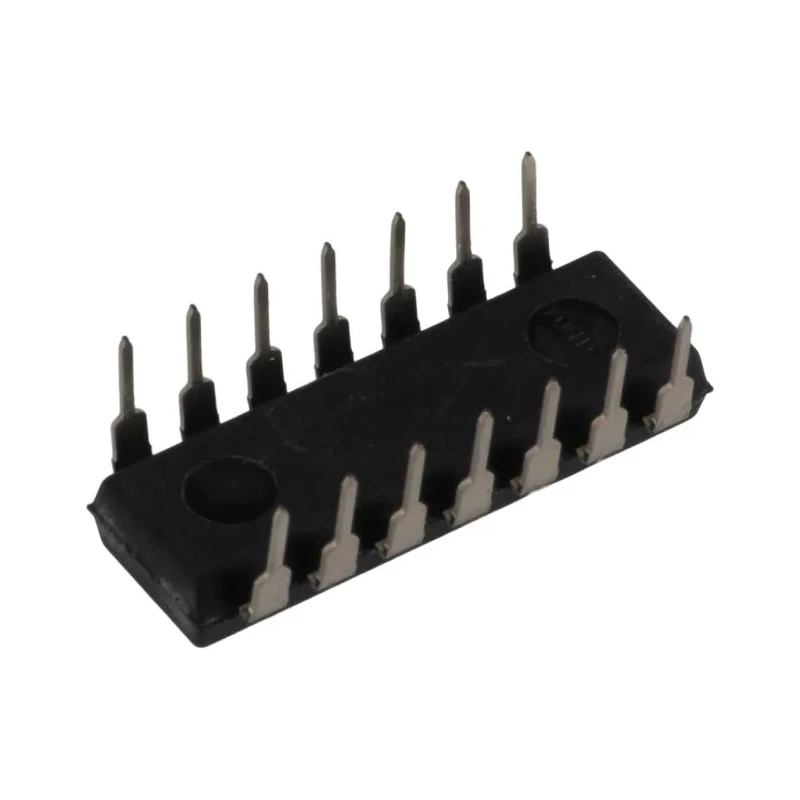

Texas Instruments 4 2-Input XOR Logic Gate LS Logic Family 14-Pin PDIP SN74LS86AN

Texas Instruments SN74LS86AN is a high-performance logic integrated circuit featuring four independent 2-input XOR gates. This device belongs to the LS logic family and comes in a 14-pin PDIP package, designed for through-hole mounting applications. It provides reliable logic function operations essential for digital circuits.

The IC operates within a supply voltage range of 4.75V to 5.25V, making it compatible with standard 5V logic systems. It offers fast switching with a maximum propagation delay of 10 nanoseconds at capacitive load, ensuring efficient signal processing in timing-critical systems.

This model supports an operating temperature range from 0°C to 70°C, allowing stable operation in various industrial and commercial environments. The device delivers a maximum high-level output current of -0.4mA and a maximum low-level output current of 8mA, suitable for driving other logic inputs or loads.

The 14-pin PDIP package provides a compact footprint suitable for prototyping and circuit board implementations requiring through-hole components. Ideal for electronics and electrical semiconductor applications, this IC is commonly employed in digital logic circuits including arithmetic functions, data comparison, and control systems.

Manufactured in Malaysia, the SN74LS86AN ensures adherence to quality standards, providing durable and consistent performance. No specific automotive standards or additional approvals are associated with this device, making it fit for general-purpose digital logic applications.

Contains four 2-input XOR gates in a standard 14-pin PDIP package. Compatible with 5V LS logic family conventions. Fast signal switching with 10ns maximum propagation delay. Wide operating temperature range of 0°C to 70°C supports diverse environments.

Through-hole mounting facilitates easy integration in various circuit designs. Manufactured in Malaysia ensuring product reliability and quality. Explore our Electronics & Electricals category for additional semiconductor logic ICs by Texas Instruments and other major brands available at EnvMart.
