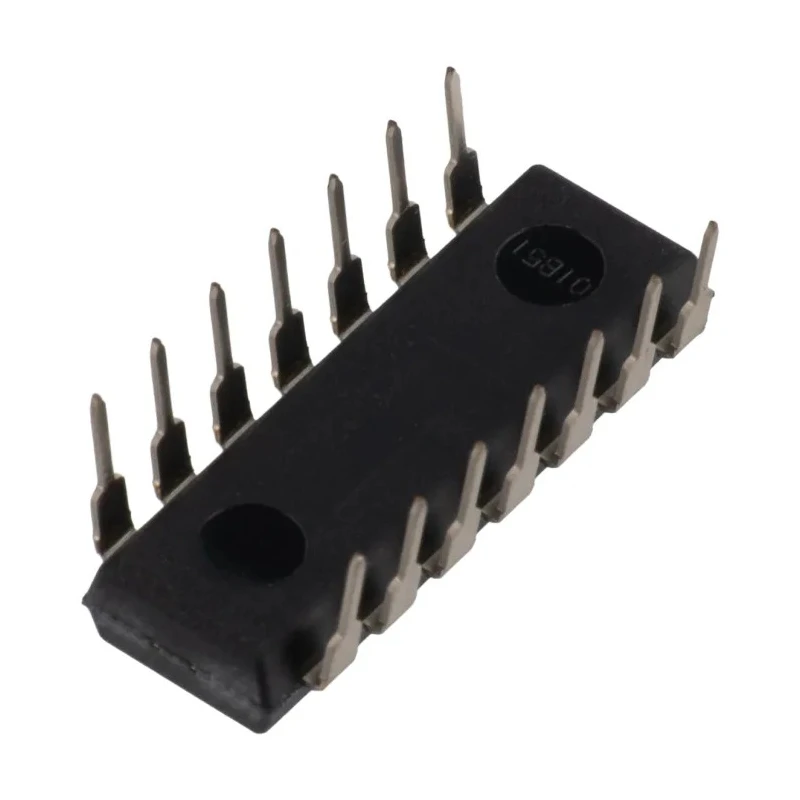

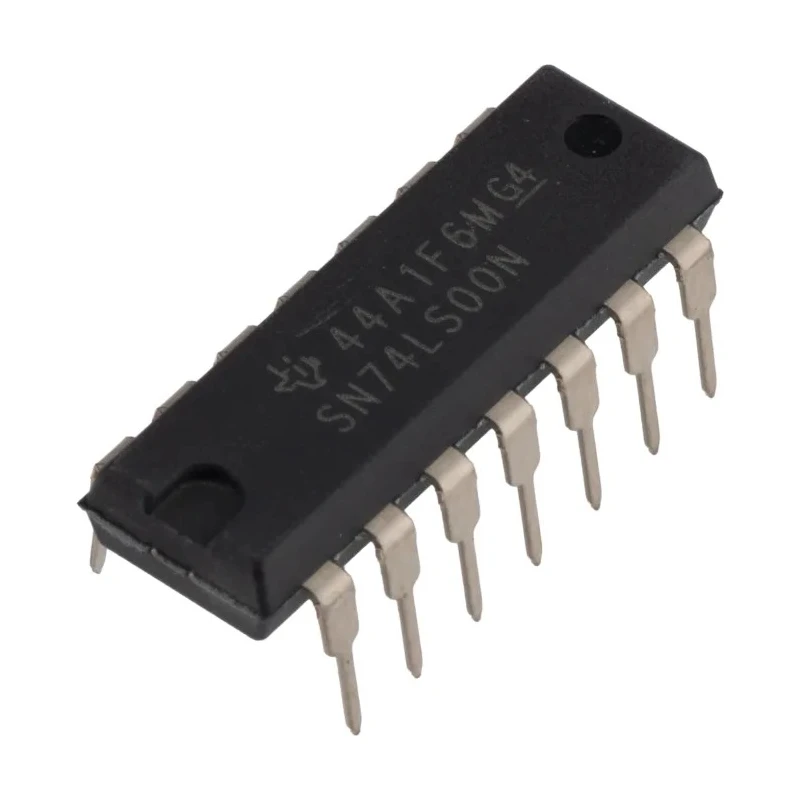

Texas Instruments 4 2-Input NAND Logic Gate, 14-Pin PDIP SN74LS00N
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | SN74LS00N |
| Mount Type | Through Hole |
| Input Type | CMOS |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Pin Count | 14 |
| Number of Elements | 4 |
| Maximum Supply Voltage | 5.25V |
| Logic Family | LS |
| Logic Function | NAND |
| Minimum Supply Voltage | 4.75V |
| Maximum High Level Output Current | -0.4mA |
| Maximum Propagation Delay Time @ CL | 5ns |
| Maximum Low Level Output Current | 8mA |
| Number of Inputs per Gate | 2 |
| Texas Instruments, 4 2-Input NAND Logic Gate, 14-Pin PDIPBrand | Texas Instruments |
Key Features
- This device contains four independent NAND gates each having two inputs.
- It uses bipolar junction transistor technology for low power consumption.
- The package type is PDIP with 14 pins for through hole mounting.
- The logic family is LS with CMOS input type for noise immunity.
- Operating voltage range is from 4.75V to 5.25V with a max propagation delay of 5 nanoseconds.
- It is designed for operation from 0°C to 70°C and has a length of 19.3mm and height of 4.57mm.
- Maximum low level output current is 8mA, while maximum high level output current is -0.4mA.
- This device is RoHS compliant and made in Mexico ensuring reliable quality standards.
Product Description
Texas Instruments SN74LS00N is a 4 2-Input NAND Logic Gate IC from the 74LS family featuring low power Schottky transistor technology for improved performance and reduced consumption.
This IC is housed in a 14-pin PDIP package suitable for through hole mounting and professional PCB assembly. With a 5ns maximum propagation delay and operating voltage between 4.75V and 5.25V, it supports robust digital signal processing in various electronic applications.
The device operates safely within 0°C to 70°C temperature range and offers CMOS input for enhanced noise immunity. The SN74LS00N contains four independent NAND gates, each with two inputs, making it highly versatile for creating logical circuits and combinational logic functions.
Manufactured in Mexico under strict quality controls, it complies with RoHS standards, ensuring environmentally safe production. Common applications include use in embedded systems, industrial electronics, laboratory instrumentation, and educational hardware development.
This IC has 4 NAND gates with 2 inputs each. Operates at 4.75V to 5.25V supply voltage. Maximum propagation delay is 5 nanoseconds. Package type is 14-pin PDIP with through-hole mount. Temperature range from 0°C to 70°C.
CMOS input type for noise immunity. Suitable for digital logic applications in industrial and lab settings. RoHS compliant and made in Mexico. Browse the Electronics & Electricals category at EnvMart for more semiconductor and Logic Gate solutions from Texas Instruments and other reputable brands.
