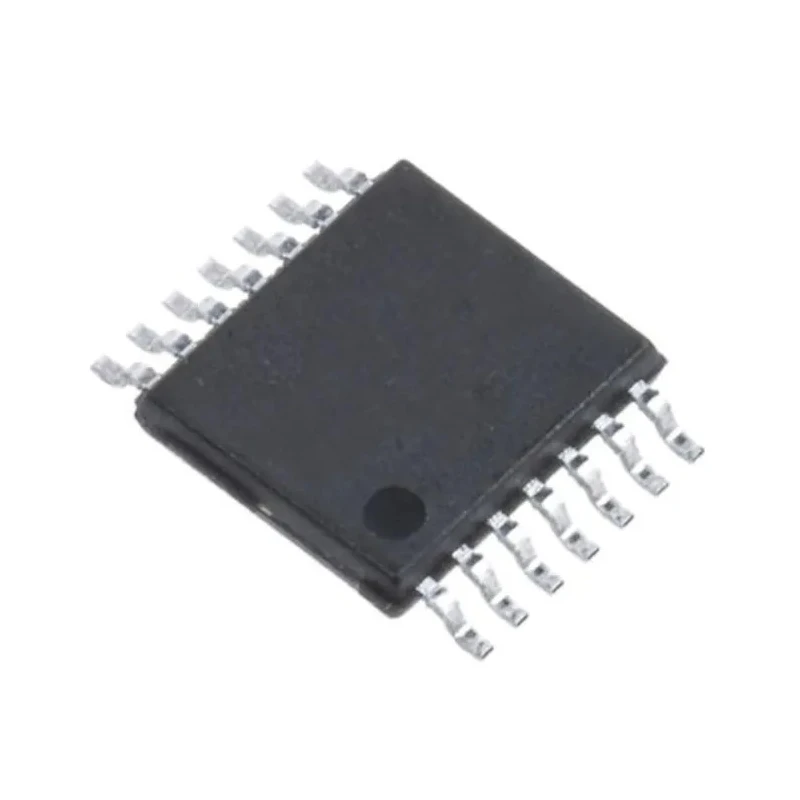

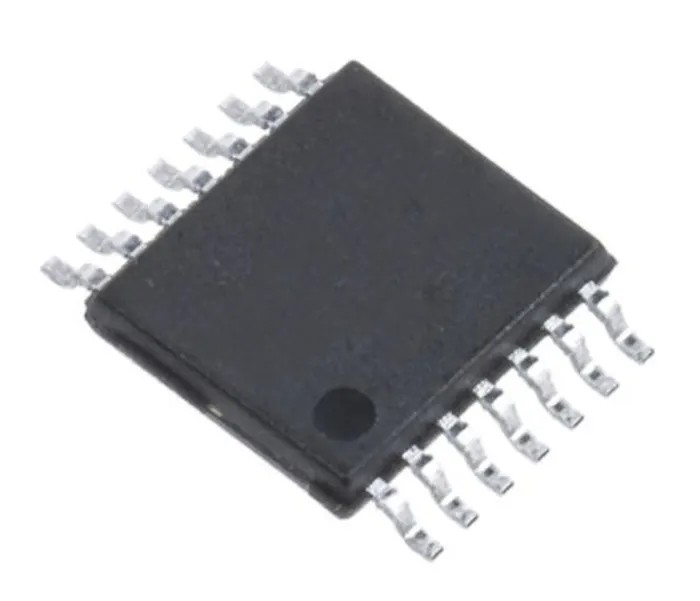

onsemi 4 2-Input OR Logic Gate 14-Pin TSSOP 74ACT32MTCX

Name: onsemi 4 2-Input OR Logic Gate 14-Pin TSSOP 74ACT32MTCX
Brand: onsemi
SKU: 101835
Price: 0.23 USD
Availability: InStock



Category Logic Gates Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	1.05mm
Length	5.1mm
Model	74ACT32MTCX
Mount Type	Surface
Series	74ACT32
Input Type	TTL
Maximum Operating Temperature	85°C
Package Type	TSSOP
Minimum Operating Temperature	-40°C
Standards/Approvals	JEDEC: J-STD-020B
Pin Count	14
Number of Elements	4
Maximum Supply Voltage	5.5V
Logic Family	ACT
Logic Function	OR
Minimum Supply Voltage	4.5V
Maximum High Level Output Current	-24mA
Maximum Propagation Delay Time @ CL	10ns
Maximum Low Level Output Current	24mA
Number of Inputs per Gate	2
Standards/ApprovalsJEDEC	J-STD-020B
JEDEC	J-STD-020B

Key Features

The device contains four independent 2-input OR gates.
Each gate has TTL compatible inputs suitable for various logic applications.
The IC operates with a minimum supply voltage of 4.5V and a maximum of 5.5V.
Maximum propagation delay at CL is 10 nanoseconds ensuring fast logic switching.
The package type is TSSOP with a 14-pin configuration.
The operating temperature range is -40°C to 85°C making it suitable for wide environmental conditions.
The outputs can source or sink up to 24 mA for driving loads.
The device does not include Schmitt trigger inputs.

Product Description

onsemi 74ACT32MTCX 4 2-Input OR Logic Gate in a compact 14-Pin TSSOP surface mount package is part of the ACT logic family with TTL compatible inputs designed for reliable and efficient logic gate operation.

This IC integrates four independent OR gates, each with two inputs, capable of handling various digital logic functions. With a maximum propagation delay time of 10 ns, this logic gate provides swift response suited for high-speed electronic systems.

Operating voltage ranges between 4.5V and 5.5V, offering flexibility within standard TTL voltage levels. The device can source and sink up to 24 mA output current, allowing it to drive moderate loads effectively.

The robust operating temperature range from -40°C to 85°C ensures usability in industrial, commercial, and automotive environments, although this specific model does not conform to an automotive standard.

The 14-pin TSSOP package has a height of 1.05 mm and length of 5.1 mm, suitable for surface mount technologies and compact PCB designs. The device complies with JEDEC standard J-STD-020B for quality assurance.

Applications include general usage logic circuits, signal processing, and digital control systems in electronics manufacturing, laboratory instruments, and embedded control designs.

The device contains four independent 2-input OR gates. Each gate has TTL compatible inputs suitable for various logic applications. The IC operates with a minimum supply voltage of 4.5V and a maximum of 5.5V. Maximum propagation delay at CL is 10 nanoseconds ensuring fast logic switching.

The package type is TSSOP with a 14-pin configuration. The operating temperature range is -40°C to 85°C making it suitable for wide environmental conditions. The outputs can source or sink up to 24 mA for driving loads. The device does not include Schmitt trigger inputs.

The product complies with JEDEC standard J-STD-020B. This logic IC is ideal for general purpose logic applications in electronic circuits. Explore more semiconductor and logic gate components like the onsemi 74ACT32MTCX in EnvMart's Electronics & Electricals category for various industrial and research applications.
