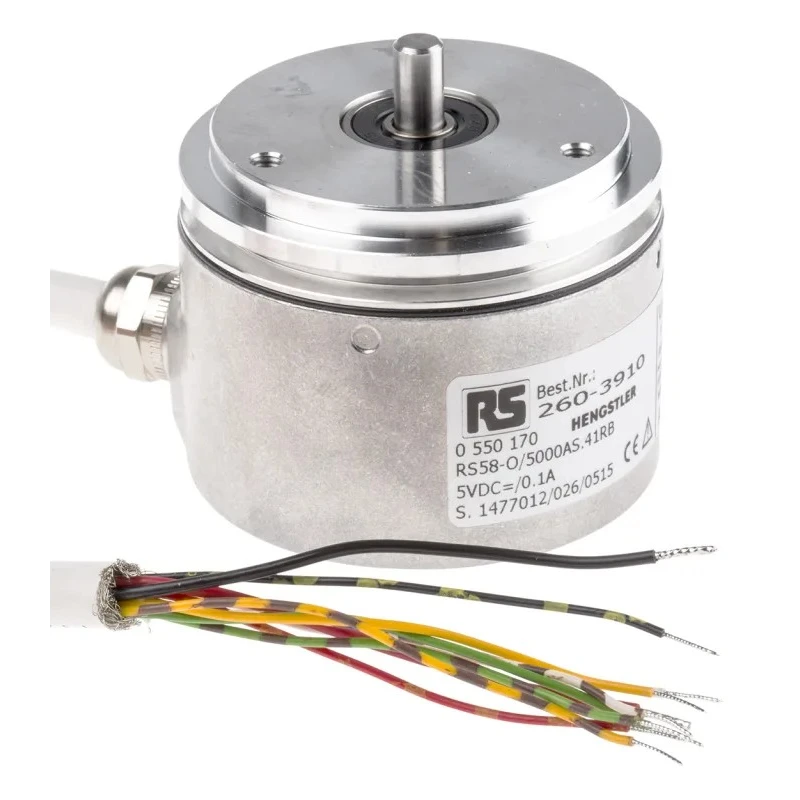

Hengstler RI58-O Series Incremental Encoder 5V DC, 5000 PPR, RS422 Signal, Hollow Shaft Type 12 mm RS0-550-170

Hengstler RS0-550-170 is a high-specification incremental encoder from the RI58-O Series designed for precision industrial motion control applications. Operating at 5V DC, this encoder provides a remarkable 5000 pulses per revolution (PPR) output, delivering fine resolution needed for accurate rotational position sensing.

With an RS422 output signal type, it ensures high integrity signal transmission over longer cable lengths, making it suitable for demanding automation and control systems in manufacturing, robotics, and laboratory instruments. The encoder's hollow shaft has a 12 mm diameter, allowing flexible installation on shafts and rotating equipment.

The maximum rotational speed of this encoder is 10,000 rpm, and it is designed with a flange mount type to provide stable and secure mounting. Its radial cable termination facilitates easy wiring in tight spaces. The device conforms to robust ingress protection ratings of IP65, IP64, and IP67, safeguarding it against dust and water ingress.

Built with OptoAsic technology, this encoder offers enhanced reliability and durability under industrial operating conditions. It produces a square wave pulse shape with a 1:1 duty cycle, ensuring consistent and accurate feedback signals essential for closed-loop control systems.

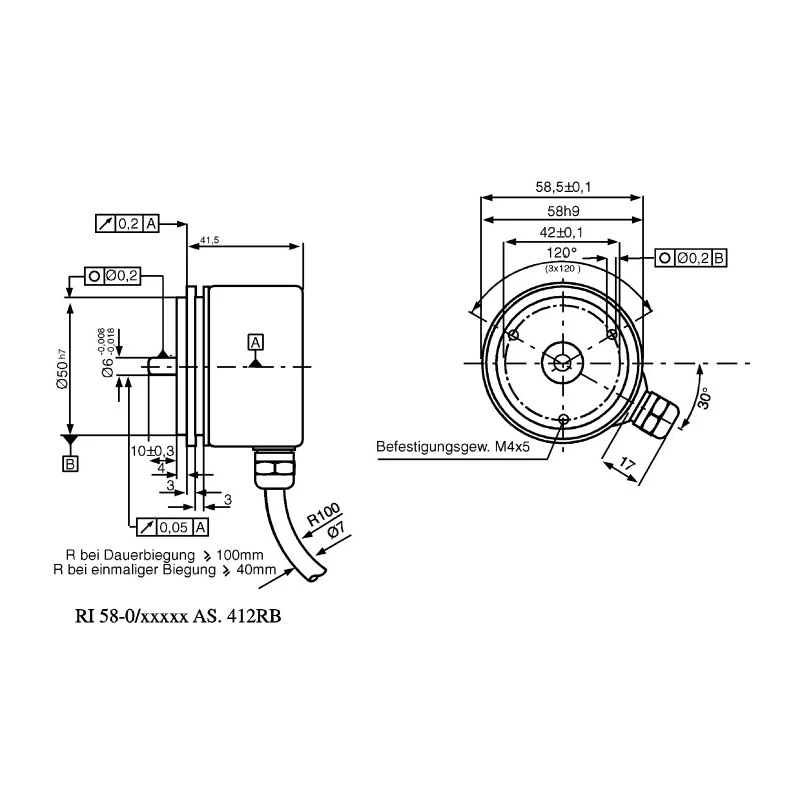

Dimensions include 57.5 mm height and width and a 58 mm overall depth, offering a compact form suitable for integration in various machinery setups. It operates reliably in ambient temperatures from -10°C to 70°C, making it adaptable to diverse environmental conditions.

This Hengstler RI58-O Series incremental encoder is ideal for use in industrial automation systems, HVAC controls, manufacturing equipment, and laboratory setups. Its precision and durability make it a dependable choice for monitoring rotational speed and position.

Provides high-resolution incremental encoder technology with 5000 pulses per revolution. Equipped with RS422 output signal type for reliable data transmission. Features a hollow shaft design with 12 mm diameter for flexible mounting options.

Supports maximum revolution speed of 10,000 rpm ensuring robust performance. Constructed with flange mount type and durable radial cable termination. Compact dimensions at 57.5 mm height and width, 58 mm overall depth. Operates within temperature range of -10°C to 70°C suitable for industrial environments.

IP ratings IP65, IP64, and IP67 for dust and water resistance. Utilizes OptoAsic technology enhancing encoder reliability and output accuracy. Generates pulse shape of square wave with 1:1 duty cycle for precise measurement.
