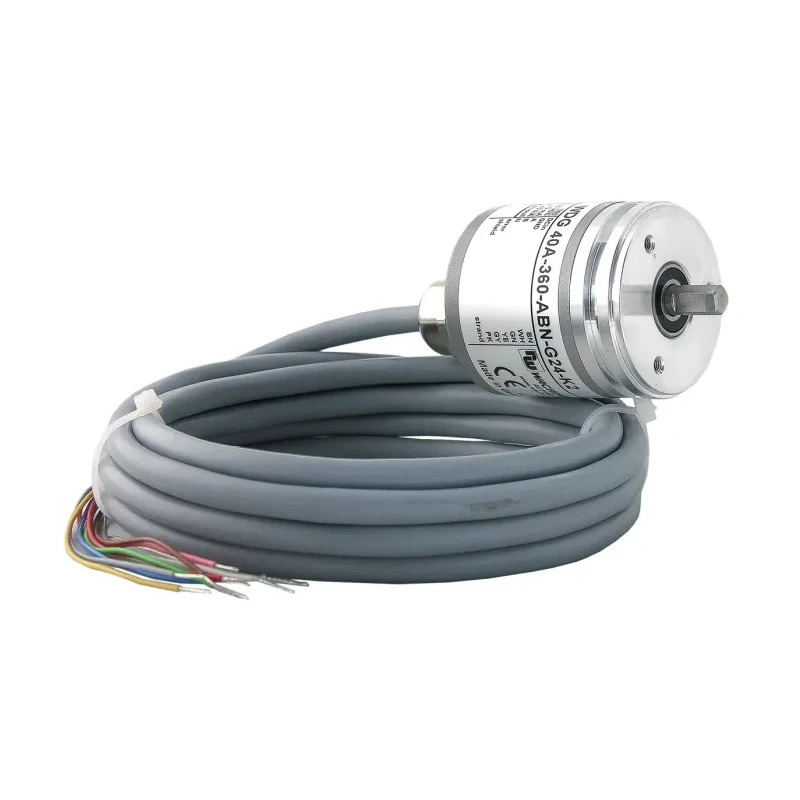

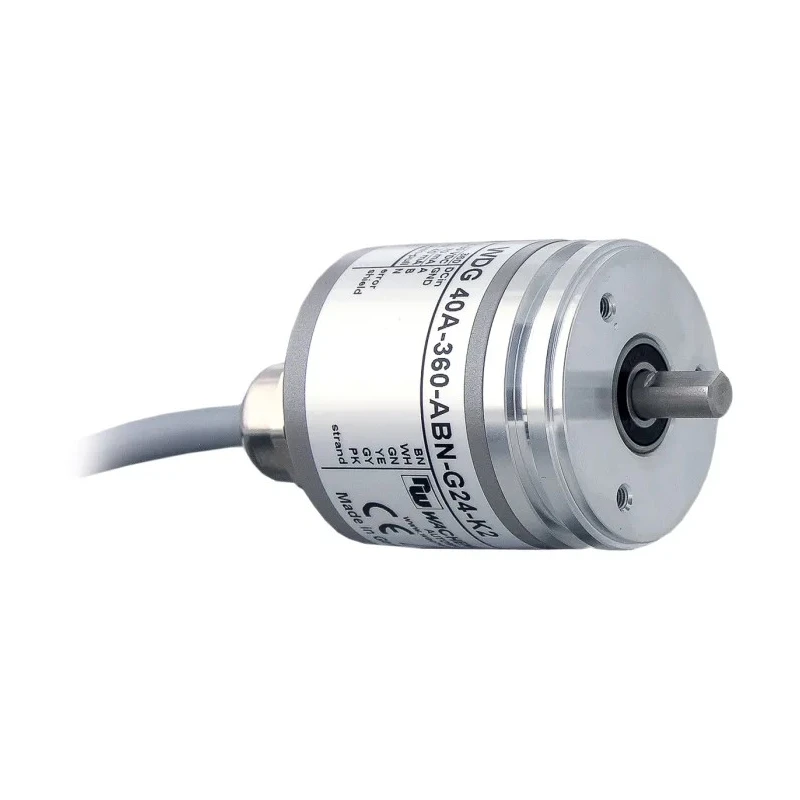

Wachendorff Incremental Encoder WDG 40A Series 30V DC, 20 PPR, HTL Output, Solid Shaft 6 mm 40A20ABNG24K2
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Wachendorff |
| Model | 40A20ABNG24K2 |
| IP Rating | IP67, IP65 |
| Mount Type | Synchro Flange Mount |
| Series | WDG 40A |
| Overall Width | 55mm |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -20°C |
| Shaft Diameter | 6mm |
| Overall height | 55mm |
| Switching Frequency | 200kHz |
| Shaft Type | Solid |
| Terminal type | Cable and Connector |
| Pulses per Revolution | 20ppr |
| Maximum Supply Voltage | 30V dc |
| Encoder Technology | Incremental |
| Maximum Revolutions | 12000rpm |
| Output Signal Type | HTL |
Key Features
- Operates at a maximum supply voltage of 30V DC for reliable performance.
- Solid shaft design with 6 mm diameter for robust mechanical coupling.
- Supports rotational speeds up to 12000 rpm for high-speed applications.
- Features IP67 and IP65 ratings for dust and water resistance in industrial environments.
- Designed for use with synchro flange mounting for stable installation.
- Wide operating temperature range from -20°C to 80°C to withstand varying conditions.
- Provides a switching frequency rating of 200 kHz for accurate signal output.
- Compact dimensions with overall height and width of 55 mm facilitate installation in confined spaces.
Product Description
Wachendorff 40A20ABNG24K2 Incremental Encoder WDG 40A Series is a robust and compact rotary transducer engineered for precise incremental measurement of path, position, and speed. Designed to operate at 30V DC with a solid shaft of 6 mm diameter, this encoder offers 20 pulses per revolution (PPR) output via an HTL signal, ensuring high fidelity and noise-resistant signal transmission.
The encoder supports speeds up to 12000 rpm and features a cable and connector type terminal for secure electrical connections. Its synchro flange mount type allows for stable and convenient mechanical installation in various industrial settings.
With ingress protection ratings of IP67 and IP65, it is resistant to dust and water, making it suitable for harsh industrial environments. The operating temperature range from -20°C to 80°C accommodates demanding thermal conditions common in manufacturing and automation applications.
Its compact design, measuring 55 mm in both height and width, enables easy integration into machinery where space is limited. The encoder's switching frequency of 200 kHz ensures rapid and accurate response to rotational movement.
Manufactured in Germany, this WDG 40A Series incremental encoder is ideal for industrial automation, motion control, robotics, and precision instrumentation requiring reliable shaft position feedback.
Operates at a maximum supply voltage of 30V DC for reliable performance. Solid shaft design with 6 mm diameter for robust mechanical coupling. Supports rotational speeds up to 12000 rpm for high-speed applications. Features IP67 and IP65 ratings for dust and water resistance in industrial environments.
Designed for use with synchro flange mounting for stable installation. Wide operating temperature range from -20°C to 80°C to withstand varying conditions. Provides a switching frequency rating of 200 kHz for accurate signal output.
Compact dimensions with overall height and width of 55 mm facilitate installation in confined spaces. Manufactured in Germany to ensure quality and reliability.
Explore EnvMart's comprehensive portfolio of industrial sensors and motion control Encoders to find precision components like the Wachendorff WDG 40A Series for your automation and control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this encoder is 30V DC.
This model provides an HTL output signal type.
It supports rotational speeds of up to 12000 rpm.
The encoder features IP67 and IP65 ratings for dust and water resistance.
The solid shaft has a diameter of 6 mm.
It operates within a temperature range of -20°C to 80°C.
The overall height and width of this encoder are both 55 mm.
It is designed for synchro flange mounting.
The encoder has a switching frequency rating of 200 kHz.
This model provides 20 pulses per revolution (PPR).
It features a cable and connector type terminal for secure electrical connections.
This encoder is manufactured in Germany.
