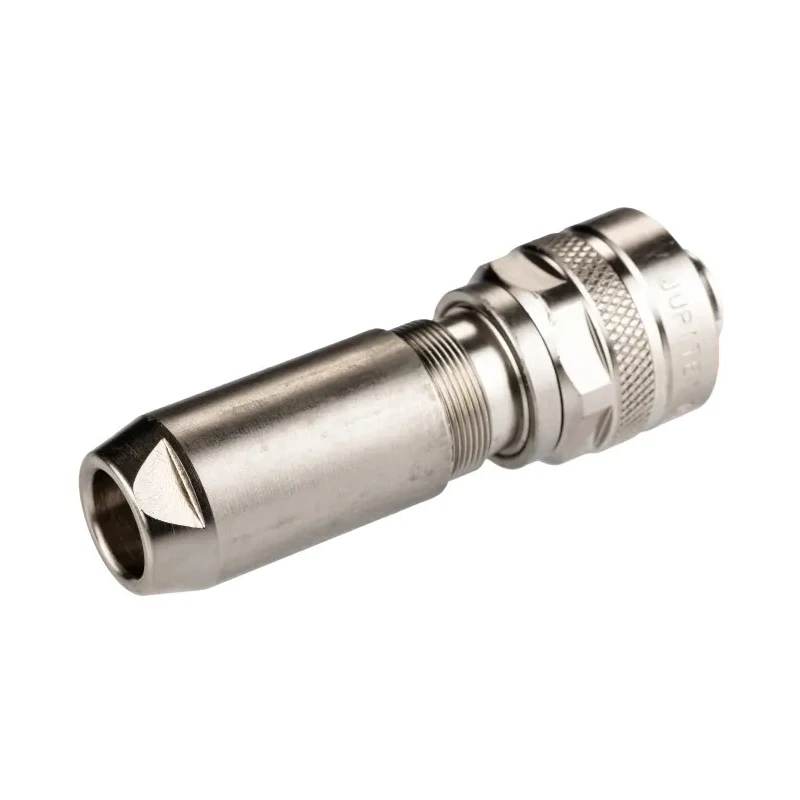

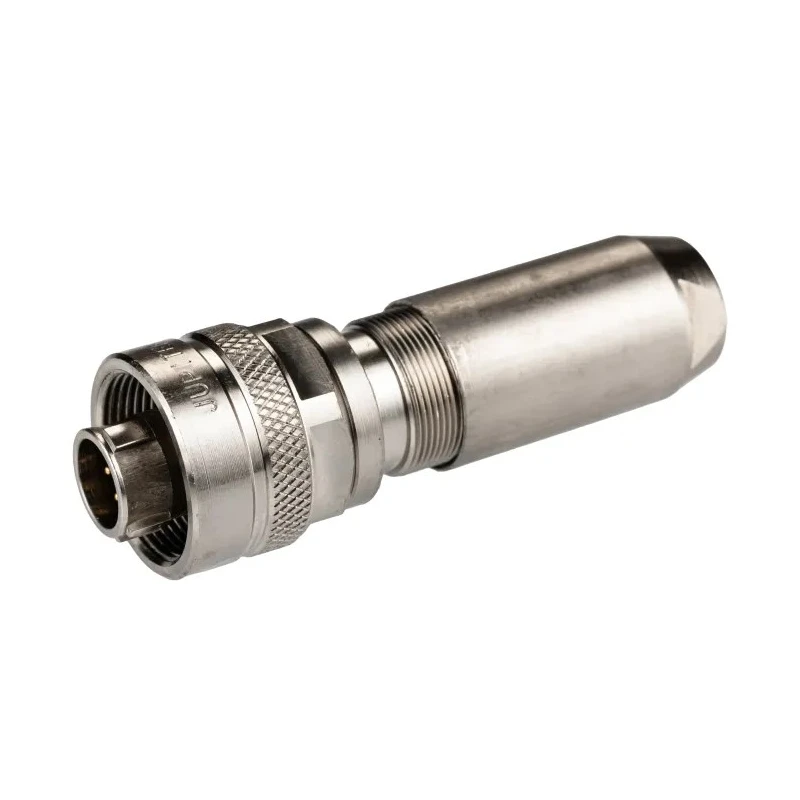

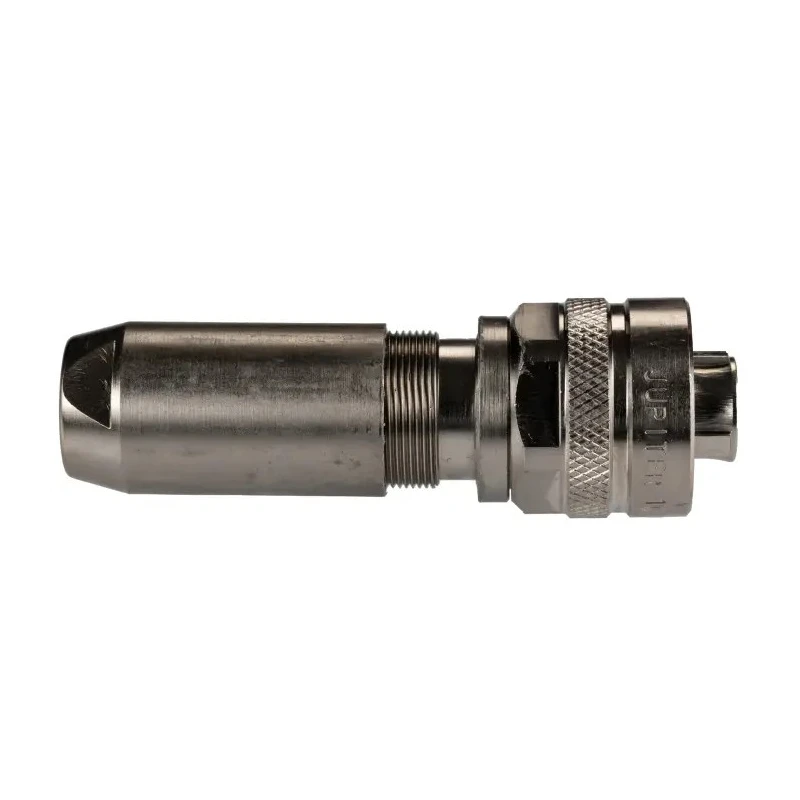

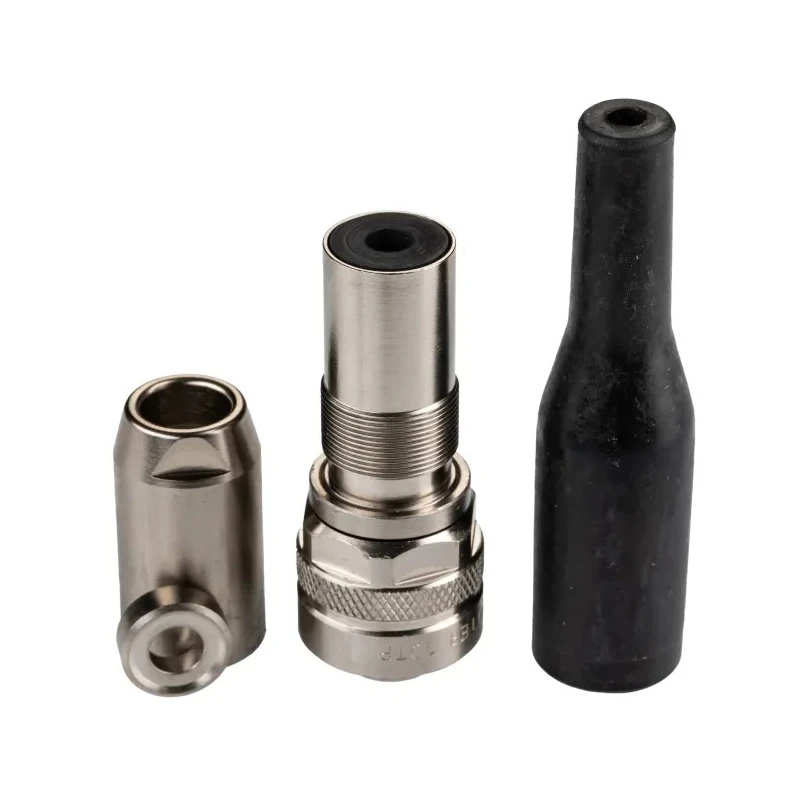

Souriau Sunbank by Eaton Circular Connector, 7 Contacts, Cable Mount, Standard Size, Socket Male, IP68 FEDM10TPN0720A070
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 600V |
| Brand | Souriau Sunbank by Eaton |
| Orientation | Straight |
| Current | 7A |
| Model | FEDM10TPN0720A070 |
| IP Rating | IP68 |
| Mount Type | Cable |
| Housing Material | Nylon, Polytetrafluoroethylene |
| Contact Material | Brass |
| Series | TP |
| Termination Type | Solder |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -20°C |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 7 |
| Contact Gender | Male |
| Shell Size | 10 |
| Mating Type | Threaded |
| Connector Size | Standard |
| Plug/Socket | Socket |
| Coding | A |
| 10TP series straight plugs, available in 2 arrangements | 4 x size 16 contacts or 7x size 20 contacts. Available in male or female version (the insulation blocks are interchangeable) |
Key Features
- The connector has a current rating of 7A per contact.
- It features a solder termination type and a straight body orientation.
- The connector shell is made of robust materials including nylon and polytetrafluoroethylene.
- The contacts are gold plated over nickel with brass base material for excellent conductivity.
- Rated IP68, it offers waterproof protection suitable for harsh environments.
- The connector operates over a temperature range from -20°C to 70°C.
- The mating type is threaded for secure connections.
- This TP series connector is durable for up to 500 mating cycles and provides high vibration resistance.
Product Description
Souriau Sunbank by Eaton FEDM10TPN0720A070 circular connector is an industrial-grade connector with 7 contacts designed for cable mounting in a standard shell size 10. It features a socket male connector with a straight orientation and a robust housing made from nylon and polytetrafluoroethylene materials. Rated IP68, this connector provides excellent waterproofing for demanding applications.
This connector supports a voltage of 600V and a current of 7A per contact. It uses solder termination to ensure stable and reliable connections. Gold plating over nickel on brass contact materials ensures durability and high-quality electrical performance. The connector is designed for high vibration resistance and long service life with up to 500 mating cycles. Operating temperatures range from -20°C to 70°C.

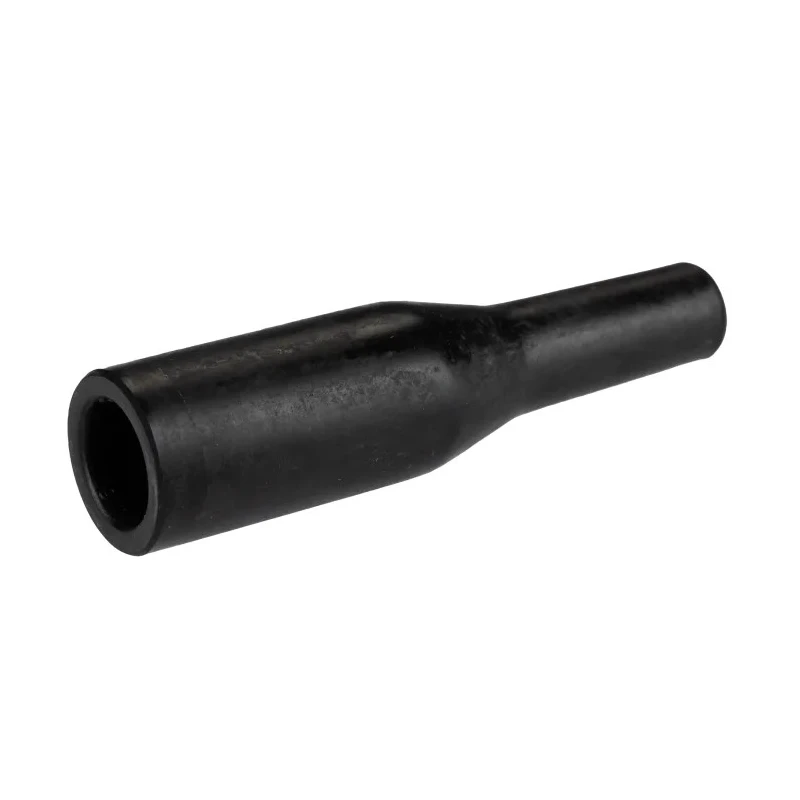

The TP series connector uses a threaded mating type for secure and simple installation. Its mechanical polarization is ensured by 5 keys, and it includes scoop-proof contacts to prevent damage during mating. The connector is supplied with a protective sleeve to manage the bending radius of the output cable.
This product is suitable for diverse industrial uses including civil engineering, submarine instrumentation, water treatment, and heavy industry operations requiring reliable waterproof connectors. It is designed and manufactured in France following high standards of quality.
The connector features solder termination for reliable connections. The shell size is 10mm with a straight body orientation. Durability supports 500 mating cycles with high vibration resistance. Connectors are gold plated over nickel with brass contacts for conductivity and corrosion resistance.
IP68 rating ensures full waterproof protection in harsh environments. Wide operating temperature range from -20°C to 70°C. Threaded mating type provides secure and simple installation. Included protective sleeve helps maintain cable bending radius.
Mechanical polarization with 5 keys prevents mis-mating. Designed for industrial and heavy-duty applications. Explore our extensive range of Industrial Circular Connectors and other electronics components at EnvMart for reliable and quality solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector has a current rating of 7A per contact.
It supports a voltage of 600V.
This connector is rated IP68, providing excellent waterproof protection.
The housing is made of nylon and polytetrafluoroethylene.
It uses solder termination to ensure stable and reliable connections.
It operates over a temperature range from -20°C to 70°C.
This model features 7 contacts.
The connector uses a threaded mating type for secure connections.
The shell size is 10.
It is designed for durability with support for up to 500 mating cycles.
It is suitable for diverse industrial uses including civil engineering, submarine instrumentation, and water treatment.
This connector is designed and manufactured in France.
