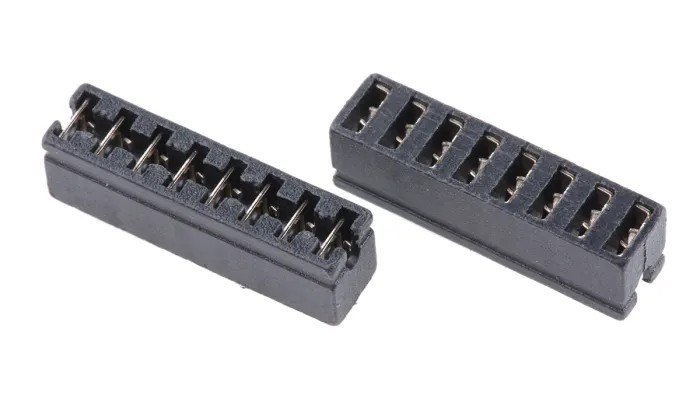

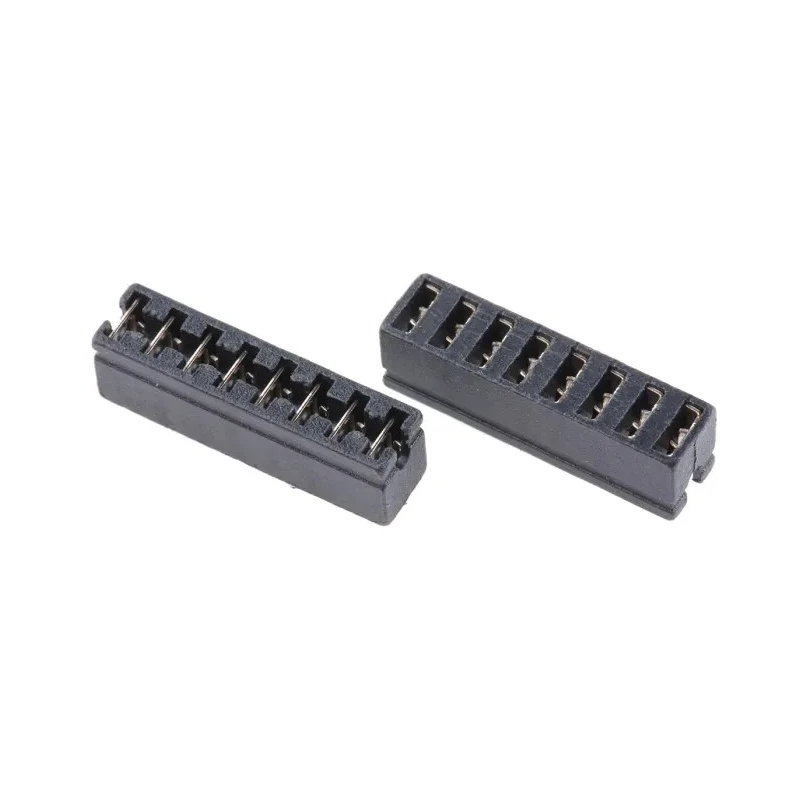

RS PRO Shorting Link Straight Female Black Open Top 8 Way 1 Row 2.54 mm Pitch 251-8626
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Colour | Black |
| Orientation | Straight |
| Current | 3A |
| Length | 20.32mm |
| Model | 251-8626 |
| Depth | 2.44mm |
| Width | 6.47mm |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Sub Type | Open Top |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 8 |
| Contact Gender | Female |
| Connector Gender | Female |
| Maximum Contact Resistance | 30mΩ |
Key Features
- Enables shorting of up to 8 header pairs simultaneously.
- Built with a black polybutylene terephthalate housing rated to UL94V-0 for flame resistance.
- Tin over nickel plated phosphor bronze contacts deliver a reliable 3 A current rating.
- Designed to mate perfectly with 0.64 mm header pins.
- Offers a maximum contact resistance of 30 milliohms ensuring efficient conductivity.
- Connector is female gender with a straight orientation for easy integration.
- RoHS compliant with no specific approvals or certifications stated.
Product Description
RS PRO 251-8626 is a multiway shorting link designed as a straight female black open top PCB connector featuring 8 contacts in a single row with 2.54 mm pitch. This component is engineered to efficiently short multiple header pairs on printed circuit boards, supporting a current rating of 3 A for reliable electrical performance.
The housing is constructed from polybutylene terephthalate, a material rated to UL94V-0, offering resistance against flame hazards typically encountered in electronic assemblies.
Contacts are made from phosphor bronze plated with tin over nickel to ensure durability and excellent electrical conductivity, with a maximum contact resistance limited to 30 milliohms.
The connector dimensions are compact, measuring 20.32 mm in length, 6.47 mm in width, and 2.44 mm in depth, making it suitable for dense PCB designs and space-constrained environments.
Its female connector gender and straight orientation enable easy mating with standard 0.64 mm headers for versatile application in electronic circuits. Enables shorting of up to 8 header pairs simultaneously. Polybutylene terephthalate housing rated to UL94V-0 for enhanced flame resistance.
Tin over nickel plated phosphor bronze contacts rated at 3 A current capacity. Designed to mate with 0.64 mm pitch headers accurately. Maximum contact resistance of 30 milliohms for efficient electrical performance. Compact dimensions allow integration into tight PCB layouts.
Female connector with straight orientation for reliable connections. Manufactured in Taiwan, Province Of China. This shorting link is ideal for industrial, laboratory, manufacturing, and electronic applications requiring secure short-circuit connections on printed circuit boards.
Explore a wide range of PCB connectors and related electronic components on EnvMart for all your project needs.
Explore more products in our PCB Connectors & Wire Housings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 3 A, ensuring reliable electrical performance for shorting applications.
The connector measures 20.32 mm in length, 6.47 mm in width, and 2.44 mm in depth, making it suitable for compact PCB layouts.
It is designed to mate perfectly with 0.64 mm header pins, facilitating easy integration into electronic circuits.
The housing is constructed from polybutylene terephthalate, which is rated to UL94V-0 for flame resistance.
The maximum contact resistance is limited to 30 milliohms, ensuring efficient electrical conductivity.
This connector features 8 contacts in a single row, allowing for the shorting of multiple header pairs simultaneously.
The connector has a straight orientation, which aids in reliable connections during installation.
Yes, this model is RoHS compliant, aligning with environmental regulations for electronic components.
This shorting link is manufactured in Taiwan, Province Of China.
The pitch of this model is 2.54 mm, which is standard for many PCB connectors.
It is ideal for industrial, laboratory, manufacturing, and electronic applications requiring secure short-circuit connections on printed circuit boards.
The contacts are made from phosphor bronze, plated with tin over nickel to enhance durability and conductivity.
