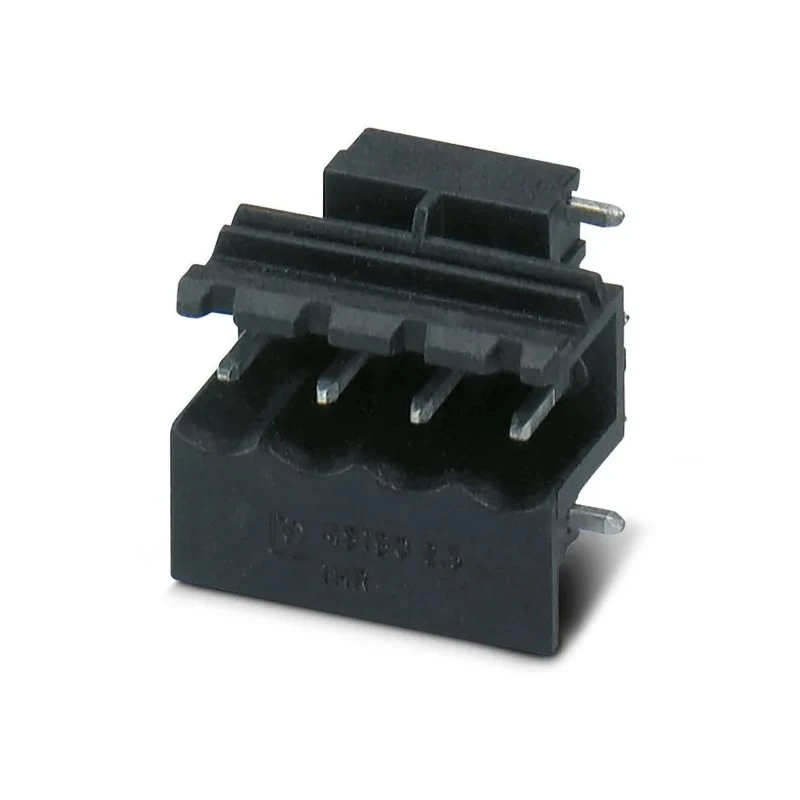

Phoenix Contact 5/4-G1R THRR44 BK MSTBO 2 Series Right Angle Solder Pluggable Terminal Block 4 Contacts 5 mm Pitch THRR44

Phoenix Contact THRR44 5/4-G1R MSTBO 2 Series Right Angle Solder Pluggable Terminal Block is a high-quality PCB header designed for industrial and electronic applications requiring secure and reliable wire-to-board connections. With a nominal cross-section of 2.5 mm², it supports a nominal current of 16 A and is rated for a voltage of 320 V, ensuring efficient power transmission in compact electronics.

The terminal block features a 5 mm pitch and 4 contact positions aligned in a linear pin layout, optimized for printed circuit board mounting using Through-Hole Reflow (THR) soldering techniques for robust mechanical and electrical connections. Its right-angle orientation aids in efficient PCB space utilization and wiring arrangement.

Constructed with a durable black polyamide housing and copper alloy contacts plated with tin, this component offers excellent corrosion resistance and longevity. It is rated to operate in extreme temperature environments ranging from -40°C to 105°C, suitable for demanding industrial, commercial, and laboratory electronics environments.

The male contact gender with a 3 mm tail pin length and mating pin length ensures compatibility with corresponding female connectors in wire-to-board systems. Its unshrouded design facilitates easy access during installation and maintenance while maintaining electrical security through recognized standards compliance.

This component meets stringent standards including EN-VDE CUL, EAC, and cULus Recognised, highlighting its safety and regulatory conformance across a range of markets. Proudly manufactured in Poland, the terminal block reflects high European manufacturing quality and consistency.

Designed for 16 A nominal current at 320 V rating. Constructed with polyamide housing and copper alloy contacts. Right angle solder mount type ensures robust wire-to-board connection. Operates reliably between -40°C and 105°C temperature range.

Contact surfaces are tin-plated for excellent corrosion resistance. Linear pin layout with 3 mm tail and mating pin lengths. Unshrouded design suitable for space-efficient PCB applications. Complies with EN-VDE CUL, EAC, and cULus recognition standards.

Manufactured in Poland ensuring high-quality European production.

Ideal for use in industrial controls, automation systems, electronic instrumentation, and PCB wiring assemblies. Explore more components from Phoenix Contact and related products in the electronics components section on EnvMart.
