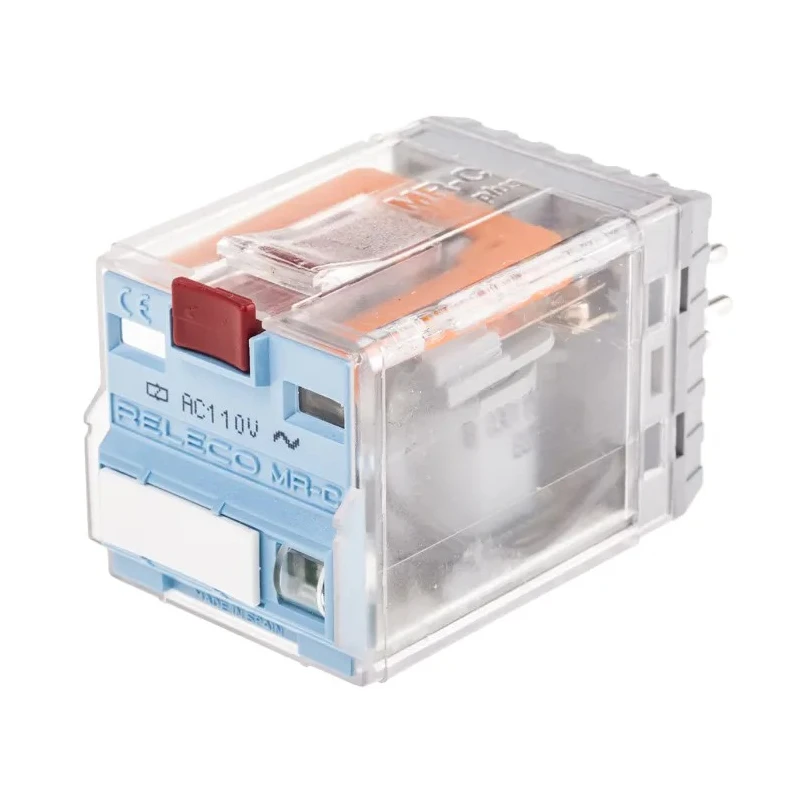

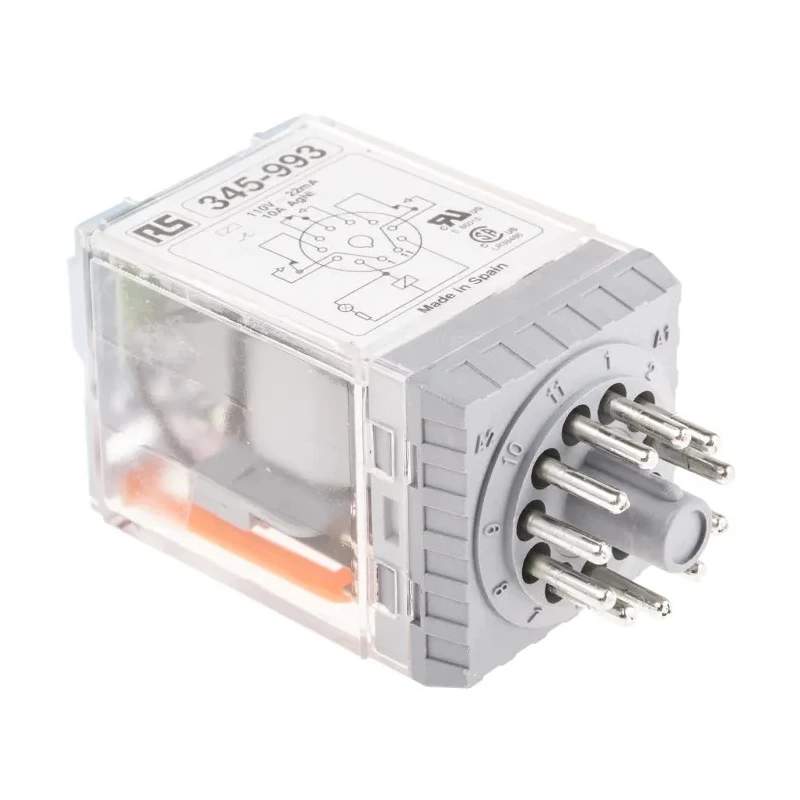

Releco Power Relay 3PDT, 115V AC Coil, 10A Switching Current, Plug-In Terminal, Silver Alloy Contacts C3-A30X / AC 115 V
Specifications
| Country of Origin | India |
|---|---|
| Brand | Releco |
| Height | 66mm |
| Length | 35mm |
| Model | C3-A30X / AC 115 V |
| Width | 35mm |
| Contact Material | Silver Alloy |
| Series | MRC |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | 3PDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Plug-In |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Coil Resistance | 1kΩ |
| Coil Voltage | 115V ac |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 2.2W |
Key Features
- This power relay features a contact configuration of 3PDT for versatile control circuits.
- The coil voltage rating is 115V AC with a coil power consumption of 2.2W.
- It offers a switching current capacity of 10 amperes and switching voltages up to 250V AC and 30V DC.
- The relay is equipped with plug-in terminals and silver alloy contacts for reliable performance.
- Operating temperature ranges from -40°C to 60°C ensuring durability in harsh environments.
- Features include a test button, LED indicator, and mechanical flag indicator for easy status monitoring.
- The coil resistance is approximately 1kΩ providing stable coil operation.

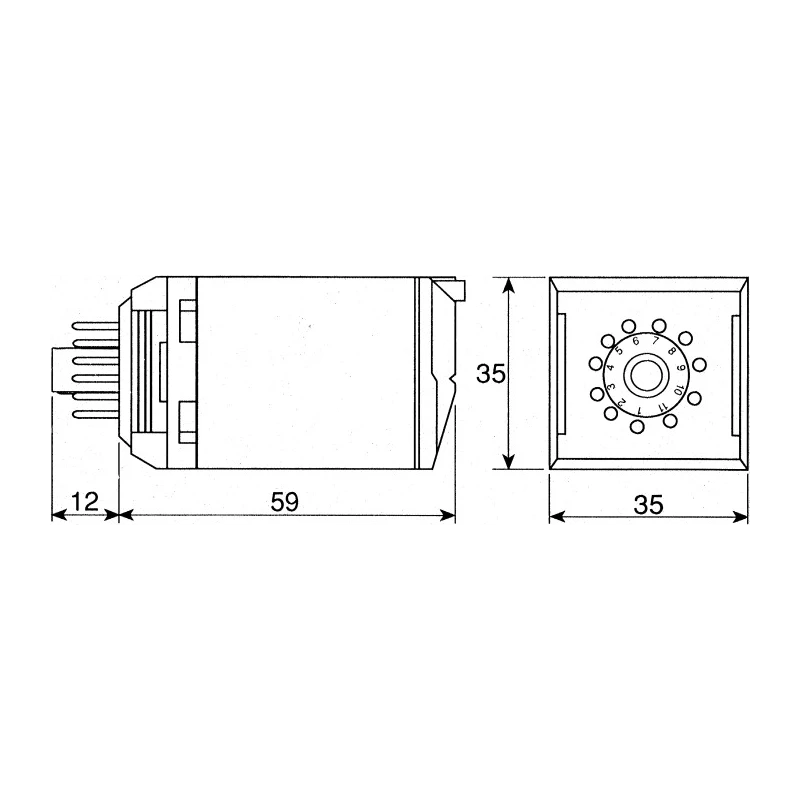

- The relay dimensions are 35mm width, 35mm length, and 66mm height, fitting standard industrial sockets.
Product Description
Releco C3-A30X / AC 115 V Power Relay 3PDT is a high-performance non-latching relay featuring a 115V AC coil and 10A switching current, suitable for diverse industrial automation, electrical control, HVAC, and manufacturing applications.
This 3-pole double-throw (3PDT) relay uses plug-in terminals and silver alloy contacts to ensure reliable electrical switching and longevity. The coil power consumption is a modest 2.2 watts with coil resistance around 1kΩ, optimizing energy efficiency.
Its operating temperature range from -40°C to 60°C allows usage in rigorous and harsh environments. The relay is compact with dimensions of 35mm x 35mm x 66mm, making it compatible with standard mounting configurations.
Additional features include a color-coded test button that provides push-to-test or lift-to-latch functionality, an LED indicator for coil energizing status, and a mechanical flag indicator to easily check contact status visually.
The relay is compliant with RoHS regulations and international standards such as ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 ensuring environmental safety and electrostatic discharge protection.
This 3PDT relay configuration supports complex switching circuits requiring multiple simultaneous contacts. Silver alloy contact material enhances conductivity and resistance to wear and oxidation. Plug-in terminal type simplifies installation and maintenance in industrial control panels.
The relay's switching power is rated at 2.5 kVA with contact resistance as low as 50 milliohms to enhance switching efficiency. Design suitable for industrial, manufacturing, automation, HVAC systems, and electrical power control applications.
For more industrial-grade relays and electrical components, explore the Electronics & Electricals category including Power Relays by Releco and other reputable brands on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current capacity of 10 amperes.
The coil voltage rating for this model is 115V AC.
The relay measures 35mm in width, 35mm in length, and 66mm in height.
It is equipped with plug-in terminals for easy installation.
The relay supports switching voltages up to 250V AC and 30V DC.
The relay operates within a temperature range of -40°C to 60°C.
The contacts are made of silver alloy, enhancing conductivity and wear resistance.
The coil power consumption is 2.2 watts.
Yes, it features an LED indicator for coil energizing status and a mechanical flag indicator for contact status.
This relay is compliant with RoHS regulations and standards such as ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007.
The contact resistance is as low as 50 milliohms, enhancing switching efficiency.
It is suitable for industrial automation, electrical control, HVAC, and manufacturing applications.
