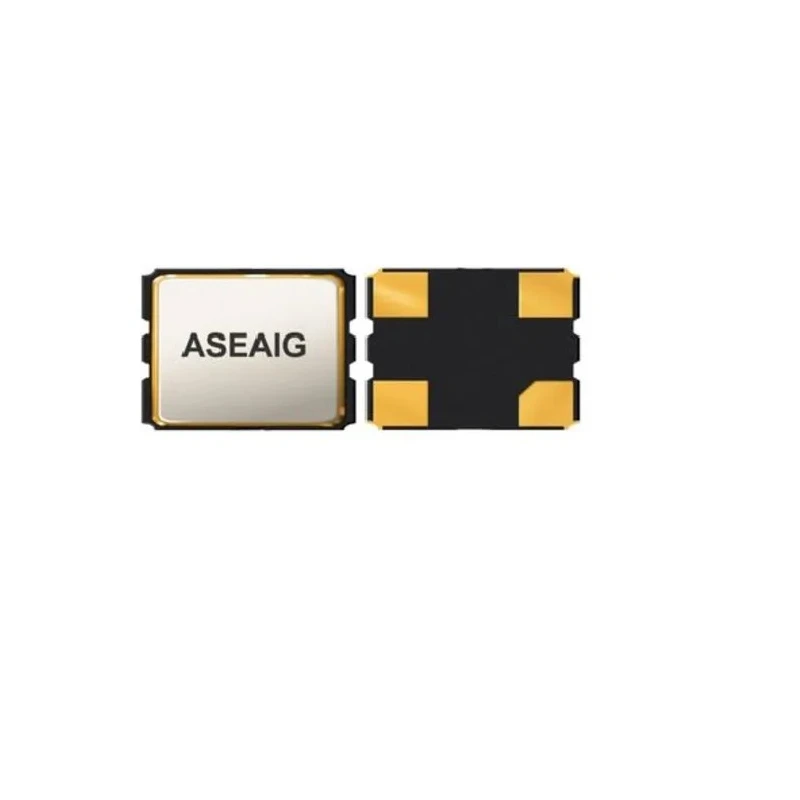

Abracon 40MHz Crystal Oscillator, ±50 ppm CMOS, 4-Pin Surface Mount, ASEAIG-40.000MHZ-C-S-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 2.1mm |
| Length | 3.2mm |
| Model | ASEAIG-40.000MHZ-C-S-T |
| Packaging | Tape & Reel |
| Width | 2.5mm |
| Mount Type | Surface |
| Series | ASEAIG |
| Maximum Operating Temperature | 125°C |
| Output Frequency | 40MHz |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Automotive Standard | AEC-Q200 |
| Maximum Supply Voltage | 3.47V |
| Minimum Supply Voltage | 3.14V |
| Oscillator Type | Crystal Oscillator |
| Output Level | CMOS |
| Automotive Grade 1 | -40°C to +125°C |
Key Features
- Features a hermetically seam-sealed ceramic package for durability.
- Automotive Grade 1 compliant operating from -40°C to +125°C.
- AEC-Q200 qualified for automotive and industrial applications.
- Supplies output frequency of 40MHz with CMOS output level.
- Compact size with dimensions 3.2mm length, 2.5mm width, and 2.1mm height.
- Operates at supply voltages between 3.14V and 3.47V.
- Suitable for infotainment systems, GPS, navigation, ADAS, and LiDAR applications.
- RoHS and Pb-free compliant ensuring environmental safety.
Product Description
The Abracon ASEAIG-40.000MHZ-C-S-T is a high-precision 40MHz crystal oscillator designed for automotive and industrial-grade applications. It features a hermetically seam-sealed ceramic package ensuring longevity and reliability even under extreme environmental conditions, operating from -40°C to +125°C.
This crystal oscillator is AEC-Q200 qualified and Automotive Grade 1 certified, making it suitable for critical applications including infotainment systems, GPS navigation, advanced driver-assistance systems (ADAS), and LiDAR technologies. It utilizes a 4-pin surface mount package with CMOS output level and operates within a supply voltage range of 3.14V to 3.47V.
The compact dimensions of 3.2mm length, 2.5mm width, and 2.1mm height allow ease of integration into space-constrained electronic designs. Packaging in tape and reel format supports efficient automated manufacturing processes.
Environmental compliance is ensured with RoHS and Pb-free certification, meeting modern regulatory standards. The ASEAIG series delivers reliable frequency stability with ±50 ppm frequency tolerance, crucial for precise timing control in electronic circuits.
Features a hermetically seam-sealed ceramic package for durability. Automotive Grade 1 compliant operating from -40°C to +125°C. AEC-Q200 qualified for automotive and industrial applications. Supplies output frequency of 40MHz with CMOS output level.
Compact size with dimensions 3.2mm length, 2.5mm width, and 2.1mm height. Operates at supply voltages between 3.14V and 3.47V. Suitable for infotainment systems, GPS, navigation, ADAS, and LiDAR applications. RoHS and Pb-free compliant ensuring environmental safety.
Available in tape & reel packaging for automated assembly.
This 40MHz crystal oscillator is ideal for use in automotive electronics, industrial hardware, communication devices, and embedded systems requiring stable and accurate clock signals. Its robustness and automotive-grade certification make it a trusted choice for harsh environments and critical installations.
Explore other Crystal Oscillators and electronic components available at EnvMart to complement your design and manufacturing projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Abracon ASEAIG-40.000MHZ-C-S-T crystal oscillator supplies an output frequency of 40MHz.
This model has compact dimensions of 3.2mm in length, 2.5mm in width, and 2.1mm in height.
It operates within a temperature range of -40°C to +125°C, making it suitable for extreme environments.
The oscillator provides a CMOS output level, which is commonly used in digital circuits.
It operates at supply voltages between 3.14V and 3.47V.
Yes, it is AEC-Q200 qualified and Automotive Grade 1 compliant, making it suitable for automotive applications.
It is packaged in tape and reel format, which supports efficient automated assembly processes.
This model features a 4-pin configuration for easy integration into electronic designs.
It is suitable for applications including infotainment systems, GPS navigation, advanced driver-assistance systems (ADAS), and LiDAR technologies.
It is RoHS and Pb-free compliant, ensuring it meets modern environmental safety regulations.
This oscillator uses a surface mount type, facilitating integration into compact electronic circuits.
This model is part of the ASEAIG series, which is designed for high-precision applications.
