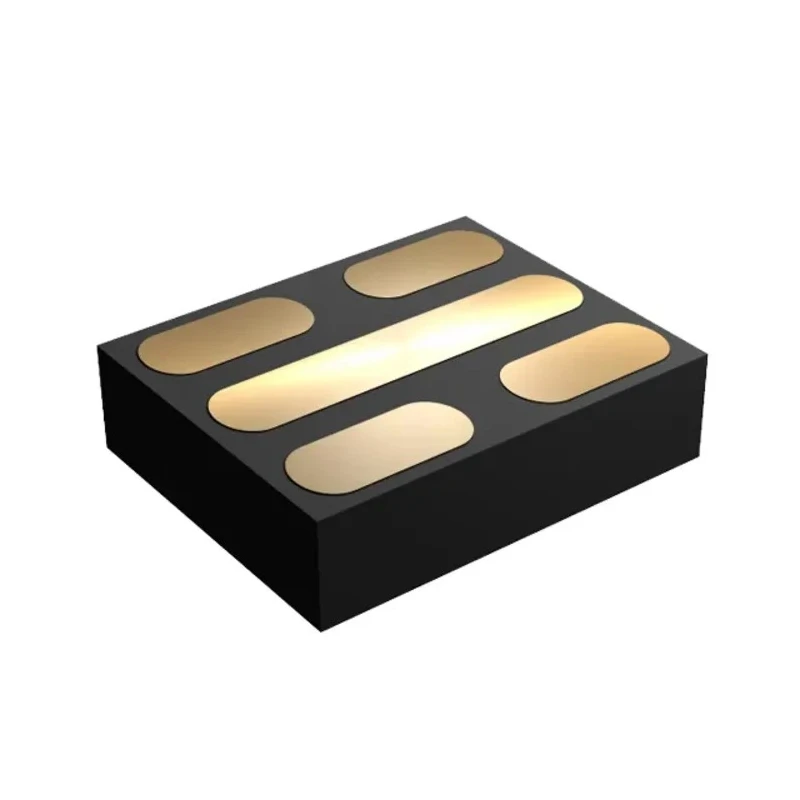

STMicroelectronics 64 kB Serial EEPROM 450 ns 5-Pin UFDFPN Serial-I2C M24C64-FMH6TG
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 0.55mm |
| Length | 1.7mm |
| Model | M24C64-FMH6TG |
| Width | 1.4mm |
| Mount Type | Surface |
| Series | M24C64-F |
| Maximum Operating Temperature | 85°C |
| Package Type | UFDFPN |
| Minimum Operating Temperature | -40°C |
| Memory size | 64kB |
| Interface Type | Serial-I2C |
| Pin Count | 5 |
| Page Size | 32 byte |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.7V |
| Maximum Clock Frequency | 1MHz |
| Organisation | 8K x 8 bit |
| Number of Bits per Word | 8 |
| Maximum Random Access Time | 450ns |
| Number of Words | 8K |
Key Features
- 64-Kbit EEPROM organized as 8K x 8 bits suitable for non-volatile data storage.
- Supports Serial-I2C interface with maximum clock frequency of 1 MHz.
- Operates within a wide voltage range from 1.7 V to 5.5 V for flexible power supply options.
- Functions reliably over temperature range -40°C to 85°C for industrial applications.
- Compact UFDFPN 5-pin package with dimensions 1.7 mm length, 1.4 mm width, and 0.55 mm height.
- Provides high endurance with over 4 million write cycles and 200 years data retention.
- Includes enhanced ESD and latch-up protection ensuring device robustness.
- Complies with automotive standard AEC-Q100 for quality and reliability in automotive systems.
Product Description
STMicroelectronics M24C64-FMH6TG is a 64-Kbit I2C-compatible Serial EEPROM optimized for reliable and high-speed non-volatile memory storage in electronic applications. This device is organized as 8K x 8 bits and is provided in a compact 5-pin UFDFPN surface mount package.
It supports I2C bus modes at clock frequencies up to 1 MHz, with data retention exceeding 200 years and write endurance beyond 4 million cycles, making it suitable for demanding industrial, automotive, and commercial systems. The EEPROM operates over a wide supply voltage range of 1.7 V to 5.5 V and a temperature range from -40 °C to +85 °C, ensuring robust performance in harsh environments.
The device features byte and page write operations within 5 ms and provides enhanced ESD and latch-up protection to safeguard the memory array. It complies with the stringent automotive AEC-Q100 standard, making it a preferred choice for automotive electronics requiring high reliability.
The packaging format UFDFPN offers a minimal footprint with a length of 1.7 mm, width of 1.4 mm, and a height of 0.55 mm, allowing efficient PCB space utilization. This serial EEPROM supports random and sequential read modes and offers write protection capabilities for the entire memory.
64-Kbit serial I2C bus EEPROM for non-volatile data storage. Supports 1 MHz maximum clock frequency for fast serial communication. Wide operating voltage range from 1.7 V to 5.5 V for flexible deployment. Supports industrial temperature range from -40 °C to 85 °C.
Enhanced durability with over 4 million write cycles and 200 years data retention. Compliant with AEC-Q100 automotive standard, suitable for automotive applications. Compact 5-pin UFDFPN package, ideal for space-constrained designs.
This EEPROM is ideal for use in industrial control systems, automotive electronics, embedded computing, consumer electronics, and other applications where reliable, non-volatile memory is critical. Explore other STMicroelectronics memory devices and electronics components on EnvMart for your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The M24C64-FMH6TG has a memory size of 64 kB, organized as 8K x 8 bits.
This EEPROM supports a maximum clock frequency of 1 MHz for fast serial communication via the I2C interface.
It operates within a temperature range of -40 °C to +85 °C, making it suitable for industrial applications.
The UFDFPN package has dimensions of 1.7 mm in length, 1.4 mm in width, and 0.55 mm in height.
The M24C64-FMH6TG can endure over 4 million write cycles, ensuring high durability for data storage.
It operates within a wide supply voltage range from 1.7 V to 5.5 V, allowing for flexible power supply options.
This model uses a Serial-I2C interface for communication with other devices.
The maximum random access time is 450 ns, facilitating quick data retrieval.
Yes, it complies with the AEC-Q100 automotive standard, ensuring quality and reliability for automotive applications.
The page size for writing data is 32 bytes, allowing for efficient data management.
It includes enhanced ESD and latch-up protection to safeguard the memory array against electrical disturbances.
This EEPROM is suitable for use in industrial control systems, automotive electronics, embedded computing, and consumer electronics.
