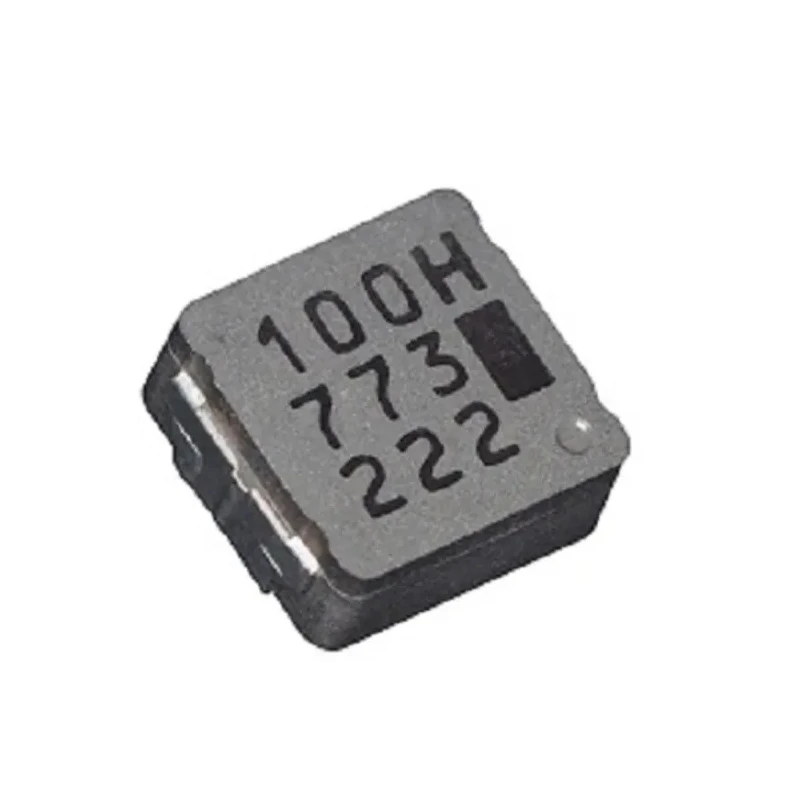

Panasonic Shielded Wirewound Surface Mount Inductor Metal Composite Core 10 μH ±20% 3 A Idc ETQP3M
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 3mm |
| Length | 6.5mm |
| Model | ETQP3M |
| Depth | 6mm |
| Packaging | Tape & Reel |
| Series | ETQP3M |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Metal Composite |
| Inductance | 10μH |
| Standards/Approvals | RoHS |
| Package/Case | Surface Mount |
| Maximum DC Current | 3A |
| Pin Count | 2 |
| Maximum DC Resistance | 74.8mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- This inductor uses a metal composite core for high heat resistance and reliability.
- Shielded construction reduces electromagnetic interference.
- Operation temperature ranges from -40°C to 150°C allowing for high temperature use.
- Maximum DC resistance of 74.8 mΩ ensures efficient current flow.
- Complies with RoHS standards and automotive AEC-Q200 specifications.
- Package is surface mount with tape and reel packaging for efficient assembly.
- 2-pin wirewound construction provides stable inductance and vibration resistance.
- Designed for noise filtering in high temperature and peak current circuitry.
Product Description
Panasonic ETQP3M Shielded Wirewound Surface Mount Inductor offers robust performance with a metal composite core, providing high heat resistance and reliability in electronic circuits. This inductor is rated at an inductance of 10 µH with a tolerance of ±20 %, capable of handling a maximum DC current of 3 A.
Its shielded wirewound construction ensures reduced electromagnetic interference, making it ideal for noisy environments and sensitive electronics. The product complies with automotive industry standard AEC-Q200 and RoHS regulations, emphasizing quality and environmental compliance.
With an operating temperature range from -40°C to 150°C, it is suitable for demanding applications requiring stable inductance under thermal stress. It includes a low DC resistance of 74.8 mΩ which preserves circuit efficiency.
The component features a compact surface mount package measuring 6.5 mm in length, 3 mm in height, and 6 mm in depth, supplied in convenient tape and reel packaging for automated PCB assembly processes. The 2-pin wired construction enhances vibration resistance, further improving durability during operation.
This inductor serves as an effective noise filter for various drive circuitry that operates in environments demanding high temperature endurance and peak current capability. Its moulded design and metal composite core provide structural integrity and increased lifespan of the component under rigorous conditions.
This inductor utilizes a robust wirewound construction on a metal composite core. Offers excellent temperature stability and low audible noise performance. Complies with relevant environmental and automotive standards. Packaged for efficient insertion into automated manufacturing processes.
Suitable for industrial, automotive, and electronic manufacturing applications requiring reliable inductive components. Explore more high-quality Inductors and electronic components in the Panasonic category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this inductor is 10 μH with a tolerance of ±20%.
This model can handle a maximum DC current of 3 A.
The operating temperature range for this inductor is from -40°C to 150°C.
The maximum DC resistance of the ETQP3M is 74.8 mΩ.
This inductor features a wirewound construction with a metal composite core.
It is packaged in tape and reel format for efficient automated assembly.
This inductor complies with RoHS standards and automotive AEC-Q200 specifications.
The dimensions of the ETQP3M are 6.5 mm in length, 6 mm in depth, and 3 mm in height.
This inductor is suitable for industrial, automotive, and electronic manufacturing applications requiring reliable inductive components.
The pin count of this inductor is 2.
The shielded construction reduces electromagnetic interference, making it ideal for noisy environments and sensitive electronics.
It serves as an effective noise filter for various drive circuitry that operates in high temperature and peak current environments.
